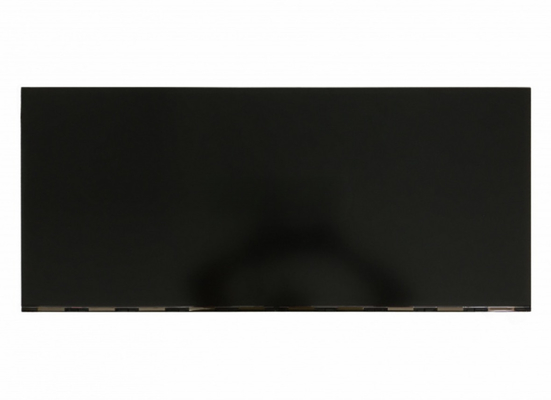

Product Details:
|
| Brand: | LG Display | Diagonal Size: | 34" |
|---|---|---|---|
| Resolution: | 3440(RGB)×1440 109PPI | Brightness: | 320 Cd/m² |
| Viewing Angle: | 89/89/89/89 (Typ.)(CR≥10) | Environment: | Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C |
| Pixel Features : | Number of Pixel | 3440(RGB)×1440 | Arrangement | RGB Vertical Stripe |
|---|---|---|---|---|
| Dot Pitch(W×H) | 0.0775×0.2535 mm | Pixel Pitch(W×H) | 0.2325×0.2325 mm [109PPI] | |
| Physical Size : | Active Viewing | 799.8(W)×334.8(H) mm | Overall Dim. | 820.8(W)×361(H) mm |
| Bezel Opening | - | Overall Depth | 11.8/19.8 (Typ./Max.) mm | |
| Outline Features : | Form Shape | Flat Rectangle | Orientation | Landscape type |
| Aspect Ratio(W:H) | 21:9 | Shape Style | 3-side borderless | |

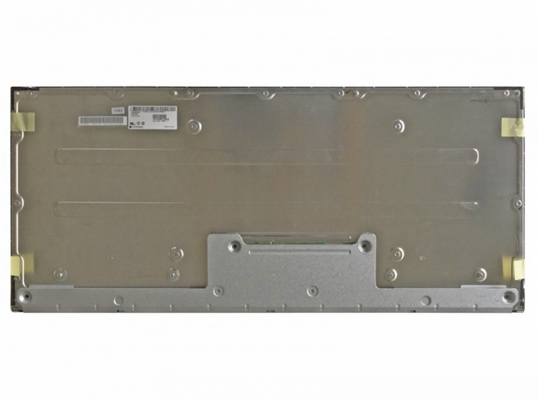

| Fixation : | Rear mounting holes | |||
| Other Detail : | Mass | 3.71/3.90Kgs (Typ./Max.) | Surface | Antiglare, Hard coating (3H) |
| Basic Information : | Luminance | 320 cd/m² (Typ.) | Contrast Ratio | 1000 : 1 (Typ.) (Transmissive) |
|---|---|---|---|---|
| Good View at | Symmetry | Response Speed | 14 (Typ.)(G to G) (ms) | |
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) | Operating Mode | IPS, Normally Black, Transmissive | |
| Color Performance : | Chromaticity | Wx:0.313; Wy:0.329 | Support Color | 1.07B (8-bit + Hi-FRC) |
| Color Temperature | 6485K | White Uniformity | 1.33 (Max.)(9 points) | |
| 1931 Color Gamut : | NTSC Ratio | 75% | sRGB | 100% coverage |
| Adobe RGB | 78% coverage | DCI-P3 | 78% coverage | |
| Rec.2020 | 56% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
| Signal Electrical : | Input Current | 0.8/1.0A (Typ./Max.) | Input Voltage | 10.0V (Typ.) | ||
|---|---|---|---|---|---|---|
| Consumption | 8.0/10.0W (Typ./Max.) | Signal Interface | eDP (4 Lanes), HBR2 (5.4G/lane) | |||
| Interface Features : | Position | Physical Type | Connector | |||
| Signal Interface : | Brand | Model | Amount | Pin Pitch | Pin Amount | Pin Assignment |
| LS Mtron | GT05Q-30S-H10-MN | 1 pcs | 0.5 mm | 30 pins | EDP-30P4L-050A | |
| Lamp Features: | Lamp Shape | - | Lamp Type | WLED | Position | Edge light type (Bottom side) |
|---|---|---|---|---|---|---|
| Exchange | - | Amount | - | Life | 30K(Min.) (Hours) | |
| Lamp Electrical : | Input Current | 120/125mA (Typ./Max.) | Input Voltage | 36.6±2.4V | ||
| Consumption | 35.1/37.5W (Typ./Max.) | |||||
| Interface Features : | Position | Physical Type | Connector | |||
| Interface Detail : | Brand | Model | Amount | Pin Pitch | Pin Amount | Pin Assignment |
| JST | SM06B-SHJH(HF) | 2 pcs | 1.0 mm | 6 pins | BLE-9PINS-CCAACC | |
| Backlight Driver : | No | |||||
whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 799.8(W)×334.8(H) mm, outline size of 820.8(W)×361(H)×19.8(D) mm, with surface treament of Antiglare, Hard coating (3H), net weight of 3.71/3.90Kgs (Typ./Max.). As a IPS, Normally Black, Transmissive LCM product, LM340UW1-SSA2 can provides 320 cd/m² display brightness 1000:1 transimissive contrast ratio, 89/89/89/89 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 14 (Typ.)(G to G) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit + Hi-FRC gray scale signal for each dot, thus presenting a palette of 1.07B colors, also with performance of color gamut 100% (sRGB). This product adopted WLED as it's backlight systerm which was placed as Edge light type (Bottom side) and have a working life time of 30K hours, external backlight driver is additionally needed. LM340UW1-SSA2 utilizes eDP (4 Lanes) as it's signal inputting systerm, which connected by 30 pins Connector with power supply voltage of 10.0V (Typ.). It's typical vertical frame rate (Fv) is 60Hz. For more latest product detail of LM340UW1-SSA2 We strongly recommend that you should refer to datasheet listed on Panelook.com or contact with LG Display or it's distributor. All specification details are inputted by Panelook engineers according to datasheet, but we cannot guarantee the spec listed is entirely correct.
