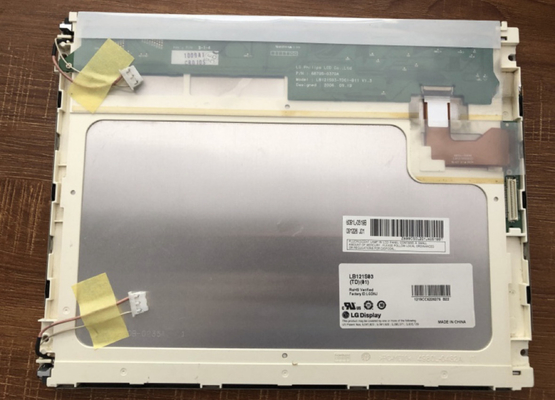

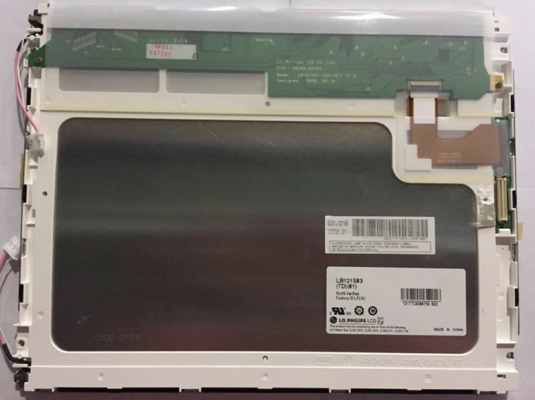

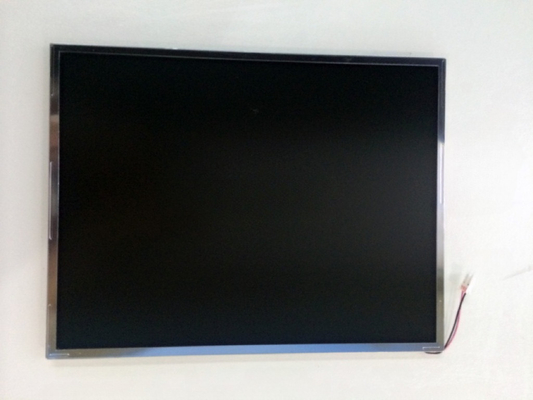

Product Details:
|
| Brand: | LG Display | Diagonal Size: | 12.1" |
|---|---|---|---|
| Resolution: | 800(RGB)×600, SVGA 82PPI | Brightness: | 400 Cd/m² |
| Viewing Angle: | 65/65/50/60 (Typ.)(CR≥10) | Environment: | Operating Temp.: 0 ~ 70 °C ; Storage Temp.: -30 ~ 80 °C |
| Pixel Features : | Pixel Format | 800(RGB)×600 [SVGA] | Dot Pitch | 0.1025×0.3075 mm (H×V) |
|---|---|---|---|---|
| Configuration | RGB Vertical Stripe | Pixel Pitch | 0.3075×0.3075 mm (H×V) [82PPI] | |
| Mechanical Size : | Display Area | 246×184.5 mm (H×V) | Bezel Area | 249.2×187.8 mm (H×V) |
| Outline Dim. | 280×218 mm (H×V) | Outline Depth | 11.0±0.5 mm | |
| Outline Features : | Form Factor | Flat Rectangle | Orientation | Landscape type |
| Aspect Ratio | 4:3 (H:V) | Shape Style | ||
| Holes & Brackets : | Face mounting holes (4-Φ3.4) on left, right bezel | |||
| Other Features : | Weight | 670g (Max.) | Surface | Antiglare, Hard coating (3H) |
| Basic Information : | Brightness | 400 cd/m² (Typ.) | Contrast Ratio | 500:1 (Typ.) (Transmissive) |
|---|---|---|---|---|
| Viewing Angle | 65/65/50/60 (Typ.)(CR≥10) | Optical Mode | TN, Normally White, Transmissive | |
| Viewing Direction | 6 o'clock | Response Time | 10/20 (Typ.)(Tr/Td) (ms) | |
| Color Performance : | Chromaticity | Wx:0.340; Wy:0.346 | Color Numbers | 262K (6-bit) |
| Color Temperature | 5198K | White Uniformity | 1.25/1.40 (Typ./Max.)(5 points) |
| Back-light Features: | Lamp Shape | Straight | Lamp Type | CCFL | Life Time | 50K(Min.) (Hours) |
|---|---|---|---|---|---|---|
| Replacement | - | Amount | 2 pcs | Position | Edge light type (Top and Bottom) | |
| Lamp Electrical : | Voltage Input | 470/510/570V (Min./Typ./Max.) | Current Input | 3.0/6.0/8.0mA (Min./Typ./Max.) | ||
| Frequency | 40/60/80KHz (Min./Typ./Max.) | Kick-off Voltage | 800/1000V (Max.)(Ta=+25/0℃) | |||
| Consumption | 6.12/6.73W (Typ./Max.) | |||||
| Interface Features : | Type | Connector | Position | - | Lamp Driver | No |
| Interface Detail : | Brand | Model | Pin Pitch | Pins | Amount | Configuration |
| JST | BHR-03VS-1 | 4.0 mm | 3 pins | 2 pcs | BLL-3PINS-HNL | |
| Signal Systerm : | Parallel RGB (1 ch, 6-bit) | Logic Voltage | - | |||
|---|---|---|---|---|---|---|
| Signal Electrical : | Voltage Input | 3.3V (Typ.) | Current Input | 185/245mA (Typ./Max.) | ||
| Consumption | 0.6/1.0W (Typ./Max.) | |||||
| Interface Features : | Type | Connector | Position | - | ||
| Connector Detail : | Brand | Model | Pin Pitch | Pins | Amount | Configuration |
| HRS | DF9B-41P-1V | 1.0 mm | 41 pins | 1 pcs | DRGB-41P1C6B-010A | |
whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 246(W)×184.5(H) mm, outline size of 280(W)×218(H)×11.5(D) mm, viewing area size of 249.2(W)×187.8(H) mm, with surface treament of Antiglare, Hard coating (3H), net weight of 670g (Max.). As a TN, Normally White, Transmissive LCM product, LB121S03-TD01 can provides 400 cd/m² display brightness 500:1 transimissive contrast ratio, 65/65/50/60 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on 6 o'clock , and response time of 10/20 (Typ.)(Tr/Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit gray scale signal for each dot, thus presenting a palette of 262K colors, also with performance of color gamut 45% (NTSC). This product adopted 2 pcs CCFL as it's backlight systerm which was placed as Edge light type (Top and Bottom) and have a working life time of 50K hours, external backlight driver is additionally needed. LB121S03-TD01 utilizes Parallel RGB (1 ch, 6-bit) as it's signal inputting systerm, which connected by 41 pins Connector with power supply voltage of 3.3V (Typ.). It's typical vertical frame rate (Fv) is 60Hz. For more latest product detail of LB121S03-TD01 We strongly recommend that you should refer to datasheet listed on Panelook.com or contact with LG LCD or it's distributor.
