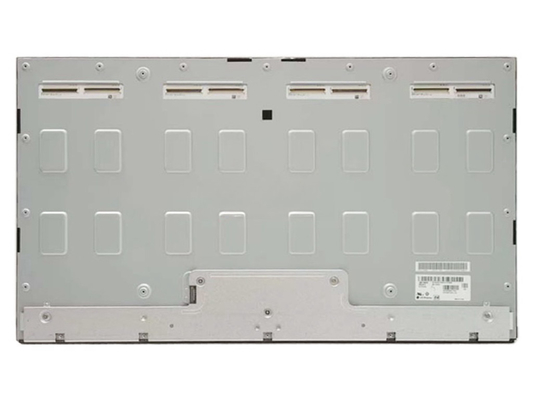

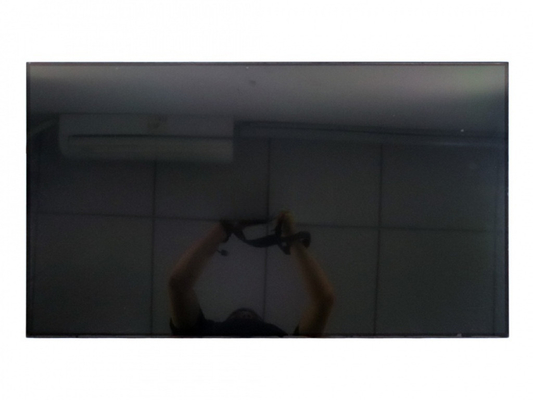

LM315WR6-SSA2 LG Display 32" 3840(RGB)×2160 UHD 139PPI 350 cd/m² INDUSTRIAL LCD DISPLAY

whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 697.306(W)×392.234(H) mm, outline size of 709.4(W)×405.95(H)×13.6(D) mm, with surface treament of Antiglare (Haze 25%), Hard coating (3H), net weight of 3.17/3.33Kgs (Typ./Max.). As a IPS, Normally Black, Transmissive LCM product, LM315WR6-SSA2 can provides 350 cd/m² display brightness 2000:1 transimissive contrast ratio, 89/89/89/89 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 14 (Typ.)(G to G) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit + Hi-FRC gray scale signal for each dot, thus presenting a palette of 1.07B colors, also with performance of color gamut 100% (sRGB). This product adopted 11S4P×2CN WLED as it's backlight systerm which was placed as Edge light type (Bottom side) and have a working life time of 30K hours, external backlight driver is additionally needed. LM315WR6-SSA2 utilizes eDP (4 Lanes) as it's signal inputting systerm, which connected by 30 pins Connector with power supply voltage of 10.0V (Typ.). It's typical vertical frame rate (Fv) is 60Hz. For more latest product detail of LM315WR6-SSA2 We strongly recommend that you should refer to datasheet listed on Panelook.com or contact with LG Display or it's distributor. All specification details are inputted by Panelook engineers according to datasheet, but we cannot guarantee the spec listed is entirely correct.
