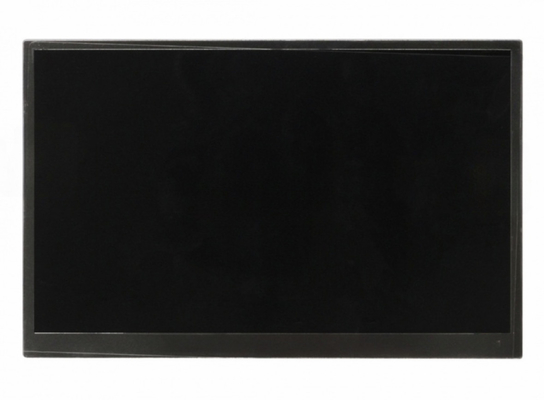

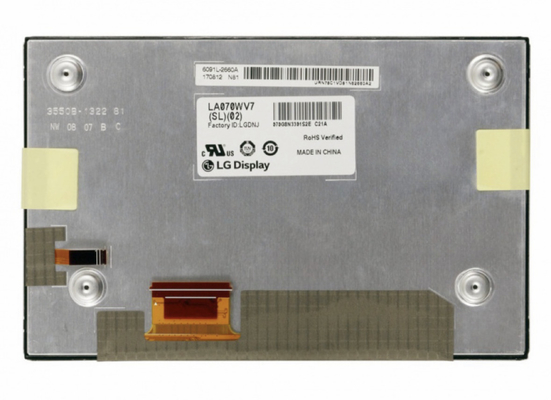

Product Details:
|
| Brand: | LG Display | Diagonal Size: | 7" |
|---|---|---|---|
| Resolution: | 800(RGB)×480, WVGA 133PPI | Brightness: | 1000 Cd/m² |
| Viewing Angle: | 89/89/89/89 (Typ.)(CR≥10) | Environment: | Operating Temperature: -30 ~ 85 °C ; Storage Temperature: -40 ~ 95 °C ; |
| Pixel Features : | Number of Pixel | 800(RGB)×480 [WVGA] | Arrangement | RGB Vertical Stripe |
|---|---|---|---|---|
| Dot Pitch(W×H) | 0.0635×0.1905 mm | Pixel Pitch(W×H) | 0.1905×0.1905 mm [133PPI] | |
| Physical Size : | Active Viewing | 152.4(W)×91.44(H) mm | Overall Dim. | 166.4(W)×106.2(H) mm |
| Bezel Opening | 158.4(W)×94.2(H) mm | Overall Depth | 6.8/10.7 (Typ./Max.) mm | |
| Outline Features : | Form Shape | Flat Rectangle | Orientation | Landscape type |
| Aspect Ratio(W:H) | 15:9 | Shape Style | ||
| Fixation : | Rear mounting Pole (4 pcs) | |||
| Other Detail : | Mass | 162/167g (Typ./Max.) | Surface | Antiglare (Haze 25%) |
| Basic Information : | Luminance | 1000 cd/m² (Typ.) | Contrast Ratio | 1100 : 1 (Typ.) (Transmissive) |
|---|---|---|---|---|
| Good View at | Symmetry | Response Speed | 16/14 (Typ.)(Tr/Td) (ms) | |
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) | Operating Mode | IPS, Normally Black, Transmissive | |
| Color Performance : | Chromaticity | Wx:0.315; Wy:0.327 | Support Color | 16.7M (8-bit) |
| Color Temperature | 6394K | White Uniformity | 1.25 (Max.)(9 points) | |
| 1931 Color Gamut : | NTSC Ratio | 65% | sRGB | 92% coverage |
| Adobe RGB | 68% coverage | DCI-P3 | 68% coverage | |
| Rec.2020 | 49% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) | |
| Dispaly Performance : | Outdoor Visibility | Sunlight Readable | Transmissivity | - |
| Signal Electrical : | Input Current | - | Input Voltage | 3.3/13/18/-7.5V (Typ.)(DVDD/AVDD/VGH/VGL) | ||
|---|---|---|---|---|---|---|
| Consumption | - | Signal Interface | LVDS (1 ch, 8-bit) | |||
| Interface Features : | Position | - | Physical Type | FPC | ||
| Signal Interface : | Brand | Model | Amount | Pin Pitch | Pin Amount | Pin Assignment |
| 1 pcs | 0.5 mm | 50 pins | ||||
| Lamp Features: | Lamp Shape | 3 strings | Lamp Type | WLED | Position | Edge light type |
|---|---|---|---|---|---|---|
| Exchange | - | Amount | 6S3P | Life | 30K(Min.) (Hours) | |
| Lamp Electrical : | Input Current | 80/85mA (Typ./Max.) | Input Voltage | 18V (Typ.) | ||
| Consumption | 4.32/5.36W (Typ./Max.) | |||||
| Interface Features : | Position | - | Physical Type | FPC | ||
| Interface Detail : | Brand | Model | Amount | Pin Pitch | Pin Amount | Pin Assignment |
| 1 pcs | 0.5 mm | 9 pins | ||||
| Backlight Driver : | No | |||||
whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 152.4(W)×91.44(H) mm, outline size of 166.4(W)×106.2(H)×10.7(D) mm, viewing area size of 158.4(W)×94.2(H) mm, with surface treament of Antiglare (Haze 25%), net weight of 162/167g (Typ./Max.). As a IPS, Normally Black, Transmissive LCM product, LA070WV7-SL02 can provides 1000 cd/m² display brightness 1100:1 transimissive contrast ratio, 89/89/89/89 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 16/14 (Typ.)(Tr/Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 65% (NTSC). This product adopted 6S3P WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 30K hours, external backlight driver is additionally needed. LA070WV7-SL02 utilizes LVDS (1 ch, 8-bit) as it's signal inputting systerm, which connected by 50 pins FPC with power supply voltage of 3.3/13/18/-7.5V (Typ.)(DVDD/AVDD/VGH/VGL). It's typical vertical frame rate (Fv) is 60Hz. For more latest product detail of LA070WV7-SL02 We strongly recommend that you should refer to datasheet listed on Panelook.com or contact with LG Display or it's distributor. All specification details are inputted by Panelook engineers according to datasheet, but we cannot guarantee the spec listed is entirely correct.
