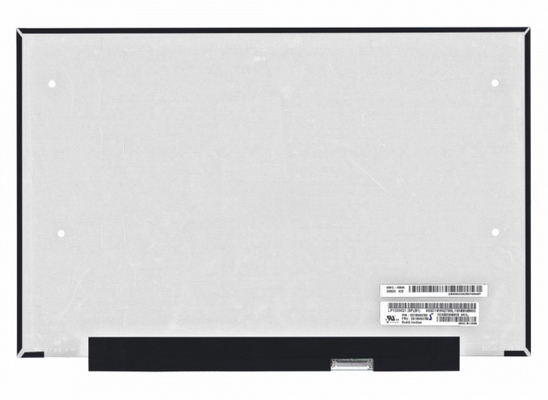

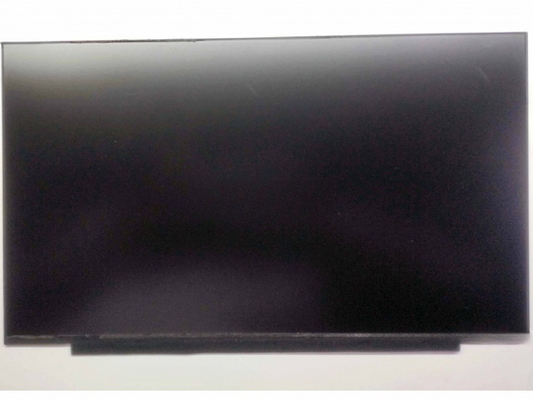

LP133WQ1-SPB1 LG Display 13.3" 2560(RGB)×1600 WQXGA 227PPI 300 cd/m² INDUSTRIAL LCD DISPLAY

whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 286.08(W)×178.8(H) mm, outline size of 291.08(W)×195.3(H)×2.4(D) mm, with surface treament of Antiglare, Hard coating (3H), net weight of 210g (Max.), shape stype of Slim (PCBA Flat, T≤3.2mm). As a IPS, Normally Black, Transmissive LCM product, LP133WQ1-SPB1 can provides 300 cd/m² display brightness 1300:1 transimissive contrast ratio, 85/85/85/85 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 30 (Typ.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 99% (sRGB). This product adopted WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 15K hours, With LED Driver. LP133WQ1-SPB1 utilizes eDP (4 Lanes) as it's signal inputting systerm, which connected by 40 pins Connector with power supply voltage of 3.3V (Typ.). It's typical vertical frame rate (Fv) is 60Hz. For more latest product detail of LP133WQ1-SPB1 We strongly recommend that you should refer to datasheet listed on Panelook.com or contact with LG Display or it's distributor.
