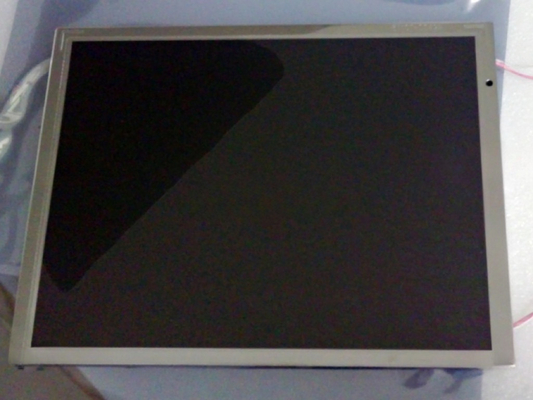

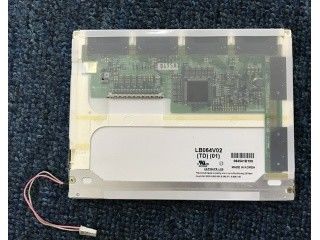

Product Details:
|
| Brand: | LG Display | Diagonal Size: | 6.4" |
|---|---|---|---|
| Resolution: | 640(RGB)×480, VGA 124PPI | Brightness: | 250 Cd/m² |
| Viewing Angle: | 45/45/15/35 (Typ.)(CR≥10) | Environment: | Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C |
| Pixel Features : | Pixel Format | 640(RGB)×480 [VGA] | Dot Pitch | 0.068×0.204 mm (H×V) |
|---|---|---|---|---|
| Configuration | RGB Vertical Stripe | Pixel Pitch | 0.204×0.204 mm (H×V) [124PPI] | |
| Mechanical Size : | Display Area | 130.56×97.92 mm (H×V) | Bezel Area | 133.8×101.1 mm (H×V) |
| Outline Dim. | 145.5×111.5 mm (H×V) | Outline Depth | 6.0±0.3 mm | |
| Outline Features : | Form Factor | Flat Rectangle | Orientation | Landscape type |
| Aspect Ratio | 4:3 (H:V) | Shape Style | ||
| Holes & Brackets : | Side mounting holes (4-M2) | |||
| Other Features : | Weight | 160/170g (Typ./Max.) | Surface | Antiglare (Haze 13%), Hard coating (3H) |
| Basic Information : | Brightness | 250 cd/m² (Typ.) | Contrast Ratio | 300:1 (Typ.) (Transmissive) |
|---|---|---|---|---|
| Viewing Angle | 45/45/15/35 (Typ.)(CR≥10) | Optical Mode | TN, Normally White, Transmissive | |
| Viewing Direction | 6 o'clock | Response Time | 15/30 (Typ.)(Tr/Td) (ms) | |
| Color Performance : | Chromaticity | - | Color Numbers | 262K (6-bit) |
| Color Temperature | - | White Uniformity | 1.40/1.60 (Typ./Max.)(5 points) |
| Back-light Features: | Lamp Shape | - | Lamp Type | CCFL | Life Time | 20K(Min.) (Hours) |
|---|---|---|---|---|---|---|
| Replacement | - | Amount | 1 pcs | Position | Edge light type (Bottom side) | |
| Lamp Electrical : | Voltage Input | 355V (Typ.) | Current Input | 5.0mA (Typ.) | ||
| Frequency | 40/60/80KHz (Min./Typ./Max.) | Kick-off Voltage | - | |||
| Consumption | 1.78W (Typ.) | |||||
| Interface Features : | Type | Connector | Position | - | Lamp Driver | No |
| Interface Detail : | Brand | Model | Pin Pitch | Pins | Amount | Configuration |
| JST | BHSR-02VS-1 | 3.5 mm | 2 pins | 1 pcs | BLL-2PINS-HL | |
| Signal Systerm : | TTL (1 ch, 6-bit) | Logic Voltage | - | |||
|---|---|---|---|---|---|---|
| Signal Electrical : | Voltage Input | 3.3V (Typ.)(VCC) | Current Input | 160mA (Typ.)(ICC) | ||
| Consumption | 530mW (Typ.) | |||||
| Interface Features : | Type | Connector | Position | - | ||
| Connector Detail : | Brand | Model | Pin Pitch | Pins | Amount | Configuration |
| LS Mtron | GT101-30S-HR11 | 1.0 mm | 30 pins | 1 pcs | DRGB-30P1C6B-110A | |
whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 130.56(W)×97.92(H) mm, outline size of 145.5(W)×111.5(H)×6.3(D) mm, viewing area size of 133.8(W)×101.1(H) mm, with surface treament of Antiglare (Haze 13%), Hard coating (3H), net weight of 160/170g (Typ./Max.). As a TN, Normally White, Transmissive LCM product, LB064V02-A1 can provides 250 cd/m² display brightness 300:1 transimissive contrast ratio, 45/45/15/35 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on 6 o'clock , and response time of 15/30 (Typ.)(Tr/Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit gray scale signal for each dot, thus presenting a palette of 262K colors. This product adopted 1 pcs CCFL as it's backlight systerm which was placed as Edge light type (Bottom side) and have a working life time of 20K hours, external backlight driver is additionally needed. LB064V02-A1 utilizes TTL (1 ch, 6-bit) as it's signal inputting systerm, which connected by 30 pins Connector with power supply voltage of 3.3V (Typ.)(VCC). It's typical vertical frame rate (Fv) is 60Hz. For more latest product detail of LB064V02-A1 we strongly recommend that you should refer to datasheet listed on Panelook.com or contact with LG LCD.
