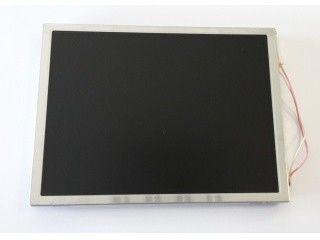

Product Details:
|
| Brand: | LG Display | Diagonal Size: | 8.4" |
|---|---|---|---|
| Resolution: | 800(RGB)×600, SVGA 119PPI | Brightness: | 600 Cd/m² |
| Viewing Angle: | 75/75/70/50 (Typ.)(CR≥10) | Environment: | Storage Temp.: -20 ~ 80 °C Operating Temp.: -10 ~ 70 °C |
| Panel Size : | 8.4" | |||
|---|---|---|---|---|
| Pixel Features : | Pixel Format | Pixel Configuration | Pixel Pitch (mm) | Dot Pitch (mm) |
| 800(RGB)×600 [SVGA] | RGB Vertical Stripe | 0.213×0.213 [119PPI] | 0.071×0.213 | |
| Mechanical Size : | Active Area (mm) | Bezel Area (mm) | Outline Dimension (mm) | Outline Depth (mm) |
| 170.4(H) × 127.8(V) | 173.0(H) × 130.6(V) | 189.5(H) × 148.6(V) | 7.0/9.4 (Typ./Max.) mm | |
| Outline Features : | Form Factor | Orientation | Aspect Ratio | Shape Style |
| Flat Rectangle | Landscape type | 4:3 (H:V) | ||
| Mounting : | Side mounting holes (4-M2) on left, right bezel | |||
| Other Detail : | Weight | Panel Cover | Treatment | |
| 320/330g (Typ./Max.) | - | Antiglare, Hard coating (3H) | ||
| Basic Information : | Luminance (cd/m²) | Viewing Angle (L/R/U/D) | Response Time (ms) |
|---|---|---|---|
| 600 (Typ.) | 75/75/70/50 (Typ.)(CR≥10) | 7/18 (Typ.)(Tr/Td) | |
| Best View on | Display Mode | Contrast Ratio | |
| 12 o'clock | TN, Normally White, Transmissive | 600 : 1 (Typ.) (Transmissive) | |
| Dispaly Color : | Color Temperature | Display Colors | White Coordinate |
| 6485K | 262K/16.7M (6-bit / 6-bit + Hi-FRC) | X:0.313; Y:0.329 | |
| 1931 Color Gamut : | NTSC Ratio | sRGB Coverage | Adobe RGB Coverage |
| 44% | 61% | 46% | |
| DCI-P3 Coverage | Rec.2020 Coverage | Remarks | |
| 45% | 33% | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) | |
| White Variation : | 1.25/1.40 (Typ./Max.)(5 points) | ||
| Lamp Features: | Type | Position | Quantity | Shape | Life(Hours) | Lamp Exchange |
|---|---|---|---|---|---|---|
| CCFL | Edge light type (Top and Bottom) | 2 pcs | Straight | 30K(Typ.) | - | |
| CCFL Electrical : | Voltage Supply | Current Supply | Power | |||
| 380/390/480V (Min./Typ./Max.) | 3.0/7.0/8.0mA (Min./Typ./Max.) | 5.46/6.01W (Typ./Max.) | ||||
| Operating Frequency | Kick-off Voltage | |||||
| 30/60/80KHz (Min./Typ./Max.) | 800/1050V (Max.)(Ta=+25/0℃) | |||||
| Interface Features : | Position | Backlight Driver | Type | |||
| - | No | Connector | ||||
| Interface Detail : | Brand | Model | Pin Pitch | Pin Amount | Quantity | Configuration |
| JST | BHSR-02VS-2 | 3.5 mm | 2 pins | 2 pcs | BLL-2PINS-HL | |
| Panel Driving Electrical : | Voltage Supply | Current Supply | Power | |||
|---|---|---|---|---|---|---|
| 3.3V (Typ.) | 184/212mA (Typ./Max.) | 0.61/0.70W (Typ./Max.) | ||||
| Interface Features : | Position | Signal | Type | |||
| - | LVDS (1 ch, 6/8-bit) | Connector | ||||
| Connector Detail : | Brand | Model | Pin Pitch | Pin Amount | Quantity | Configuration |
| LS Mtron | GT100-20P-LS-SMT | 1.0 mm | 20 pins | 1 pcs | LVDS-20P1C8B-180A | |
whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 170.4(W)×127.8(H) mm, outline size of 189.5(W)×148.6(H)×9.4(D) mm, viewing area size of 173.0(W)×130.6(H) mm, with surface treament of Antiglare, Hard coating (3H), net weight of 320/330g (Typ./Max.). As a TN, Normally White, Transmissive LCM product, LB084S01-TL01 can provides 600 cd/m² display brightness 600:1 transimissive contrast ratio, 75/75/70/50 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on 12 o'clock , and response time of 7/18 (Typ.)(Tr/Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit / 6-bit + Hi-FRC gray scale signal for each dot, thus presenting a palette of 262K/16.7M colors, also with performance of color gamut 45% (NTSC). This product adopted 2 pcs CCFL as it's backlight systerm which was placed as Edge light type (Top and Bottom) and have a working life time of 30K hours, external backlight driver is additionally needed. LB084S01-TL01 utilizes LVDS (1 ch, 6/8-bit) as it's signal inputting systerm, which connected by 20 pins Connector with power supply voltage of 3.3V (Typ.). It's typical vertical frame rate (Fv) is 60Hz. For more latest product detail of LB084S01-TL01 we strongly recommend that you should refer to datasheet listed on Panelook.com or contact with LG LCD.
