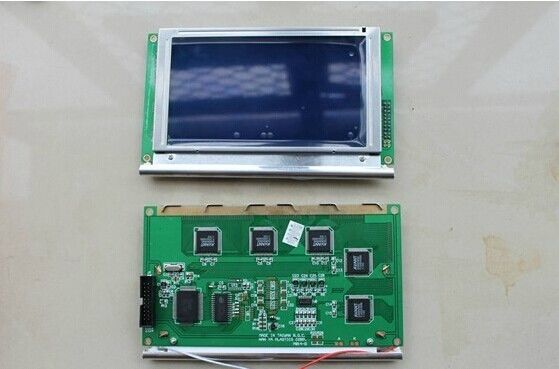

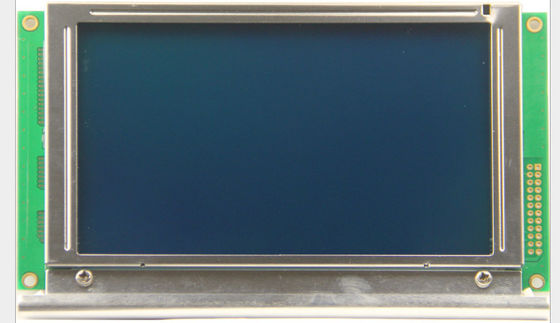

DMF50773NF-FW Kyocera 5.4INCH LCM 240×128RGB 40NITS YG-LED INDUSTRIAL LCD DISPLAY

DMF50773NF-FW Kyocera 5.4INCH LCM 240×128RGB 40NITS YG-LED INDUSTRIAL LCD DISPLAY
DMF50773NF-FW Kyocera 5.4INCH LCM 240×128RGB 40NITS YG-LED INDUSTRIAL LCD DISPLAY DMF50773NF-FW Kyocera 5.4INCH LCM 240×128RGB 40NITS YG-LED INDUSTRIAL LCD DISPLAY DMF50773NF-FW Kyocera 5.4INCH LCM 240×128RGB 40NITS YG-LED INDUSTRIAL LCD DISPLAY DMF50773NF-FW Kyocera 5.4INCH LCM 240×128RGB 40NITS YG-LED INDUSTRIAL LCD DISPLAY

Large Image :  DMF50773NF-FW Kyocera 5.4INCH LCM 240×128RGB 40NITS YG-LED INDUSTRIAL LCD DISPLAY

Product Details:
Place of Origin: JAPAN
Brand Name: Kyocera
Certification: ISO9001
Model Number: DMF50773NF-FW
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Packaging Details: STANDARD PACKING
Delivery Time: 1-2day
Payment Terms: TT/PAYPAL/WESTERNUNION/ESCROW
Supply Ability: 200PCS
Contact Now

DMF50773NF-FW Kyocera 5.4INCH LCM 240×128RGB 40NITS YG-LED INDUSTRIAL LCD DISPLAY

Description
MODEL NUMBER: DMF50773NF-FW BRAND: Kyocera
SIZE: 5.4INCH RESOLUTION: 240×128RGB
Type: FSTN-LCD, LCM Light Source: YG-LED , W/O Driver
Interface Type: 8-bit Parallel , 22 Pins Environment: Operating Temperature: 0 ~ 50 °C
Highlight:

WLED FSTN LCD display

,

WLED Industrial TFT Display

OPTREX DMF50773NF-FW Mechanical Details

Pixel Features :
Resolution
240×128
Dot Pitch(mm)
0.50×0.50 (H×V)
Pixel Format
Rectangle
Pixel Pitch(mm)
0.50×0.50 (H×V) [50PPI]
Mechanical Size :
Active Area(mm)
119.97(H) × 63.97(V)
Bezel Area(mm)
126.0(H) × 70.0(V)
Outline Dim.(mm)
170(H) × 95(V)
Depth(mm)
16.7 (Max.)
Outline Features :
Form Style
Flat Rectangle
Shape Style

Aspect Ratio
17:9 (H:V)
Orientation
Landscape type
Other Spec :
Weight
250g (Max.)
Treatment



OPTREX DMF50773NF-FW Optical Details

Basic Information :
Luminance(cd/m²)
40 (Min.)
Contrast Ratio
6:1 (Typ.) (Transmissive) 6:1 (Typ.) (Reflective)
Viewing Angle
-
Display Mode
STN, Black/White mode, Transflective
Best View on
6 o'clock
Response(ms)
200/300 (Typ.)(Tr/Td)
Color Performance :
White Coordinate
-
Display Colors
Monochrome
Dispaly Performance :
Outdoor Visibility
Sunlight Readable
Transmissivity



OPTREX DMF50773NF-FW Interface Detail

Signal Electrical :
Voltage Supply
5.0V (Typ.)
Current Supply
9.0mA (Typ.)
Signal Type :
8-bit parallel
Logic Voltage
-
Interface Detail :
Brand
Model
Pitch
Pins
Quantity
Pin Configuration



22 pins
1 pcs



OPTREX DMF50773NF-FW Electronics Details

Frame Rate :
70Hz
Reverse Scan :
Yes (180°)
Driver IC :
Built-in T6963C-0101



OPTREX DMF50773NF-FW Backlight Details

Backlight Features :
Type
YG-LED
Quantity
-
Position
Edge light type
Replacement
-
Shape
-
Life Time
-
Lamp Electrical :
Voltage Supply
4.1±0.3V
Current Supply
720mA (Typ.)
Interface Features :
Position
-
Type
Included in panel signal interface



FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.

Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.

Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.

Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.



DMF50773NF-FW Kyocera 5.4INCH LCM 240×128RGB 40NITS YG-LED INDUSTRIAL LCD DISPLAY 0DMF50773NF-FW Kyocera 5.4INCH LCM 240×128RGB 40NITS YG-LED INDUSTRIAL LCD DISPLAY 1
