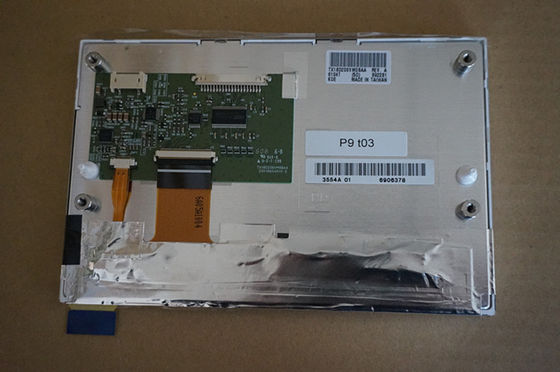

Product Details:
|
| MODEL NUMBER: | TX18D210VM0BAA | BRAND: | KOE |
|---|---|---|---|
| SIZE: | 7.0"inch | RESOLUTION: | 640(RGB)×480, VGA, 141PPI |
| BRIGHTNESS: | 800 Cd/m² (Typ.) | TEMPERATURE RANGE: | Storage Temp.: -40 ~ 90 °C Operating Temp.: -40 ~ 85 °C ; Vibration Level: 5.0G (49.0 M/s²) |
| Viewing Angle: | 85/85/85/85 (Typ.)(CR≥10 | ||
| Highlight: | 800nits Tft Lcd Screen,141PPI0 Tft Lcd Screen,640×480 VGA Lcd Video Module |
||
| Basic Information : | Brand Name | Model Name | Type | Model Alias |
|---|---|---|---|---|
| TX18D210VM0BAA | LTPS TFT-LCD , LCM | - | ||
| Maximum Ratings : | RoHS | Operating Temperature | Storage Temperature | Vibration Level |
| -40 ~ 85 °C | -40 ~ 90 °C | 5.0G (49.0 m/s²) |
| Screen Size : | 7.0" | |||
|---|---|---|---|---|
| Pixel Features : | Pixel Number | Pixel Format | Dot Pitch (H×V) | Pixel Pitch (H×V) |
| 800(RGB)×480, WVGA | RGB Vertical Stripe | 0.0635×0.1905 mm | 0.1905×0.1905 mm [133PPI] | |
| Mechanical Size : | Display Area (H×V) | Bezel Opening (H×V) | Overall Dimension (H×V) | Overall Depth |
| 152.4×91.44 mm | 156.2×94.5 mm | 167.7×109.5 mm | 9.0/20.3 (Typ./Max.) mm | |
| Outline Features : | Form Shape | Aspect Ratio (H:V) | Orientation | Shape Style |
| Flat Rectangle | 15:9 | Landscape type | ||
| Other Spec : | Mass | Panel Cover | Surface Treatment | |
| 214g (Typ.) | - | - | ||
| Holes & Brackets : | Rear mounting Pole (4 pcs) | |||
| Basic Information : | Luminance | Work Mode | Contrast Ratio |
|---|---|---|---|
| 800 cd/m² (Typ.) | IPS, Normally Black, Transmissive | 1200:1 (Typ.) (Transmissive) | |
| Good View at | Viewing Angle | Response Time | |
| Symmetry | 85/85/85/85 (Typ.)(CR≥10) | 30 (Typ.)(Tr+Td) (ms) | |
| Dispaly Color : | Color Temperature: | Support Color | Color Coordinate |
| 6022K | 262K (6-bit) | X:0.320; Y:0.350 | |
| 1931 Color Gamut : | NTSC Ratio | sRGB Coverage | Adobe RGB Coverage |
| 72% | 96% | 74% | |
| DCI-P3 Coverage | Rec.2020 Coverage | Remarks | |
| 75% | 54% | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) | |
| White Uniformity : | 1.43 (Max.)(9 points) | ||
| Performance : | 3D Technology | Outdoor Visibility | Reflectance |
| - | Sunlight Readable | ||
| Refresh Rate : | 60Hz |
|---|---|
| Reverse Scan : | Yes (U/D, L/R) |
| Power Consumption : | 4.88W (Typ.) |
| Time Controller (T-CON) : | Embedded T-CON |
| Back-light Features: | Type | Position | Life(Hours) | Amount | Shape | Replacement |
|---|---|---|---|---|---|---|
| WLED | Edge light type | 50K(Typ.) | - | - | - | |
| Interface Features : | WLED Driver State | Physical Type | Interface Position | |||
| With LED Driver | Connector | - | ||||
| Interface Detail | Brand Name | Model Name | Amount | Pins | Pin Pitch | Pin Configuration |
| JST | SM02(8.0)B-BHS-1-TB(LF)(SN) | 1 pcs | 2 pins | 8.0 mm | BDE-2PINS-VG | |
| WLED Driver Electrical : | Input Voltage | Input Current | Power Consumption | |||
| 12.0V (Typ.) | 390/430mA (Typ./Max.) | 4.68W (Typ.) | ||||
| Signal Electrical : | Input Voltage | Input Current | Power Consumption | |||
|---|---|---|---|---|---|---|
| 3.3V (Typ.) | 60/120mA (Typ./Max.) | 0.20W (Typ.) | ||||
| Voltage for Display Signals : | 0≤VIL≤0.3VDD; 0.7VDD≤VIH≤VDD | |||||
| Interface Features : | Signal Type | Physical Type | Interface Position | |||
| Parallel RGB (1 ch, 6-bit) | Connector | - | ||||
| Interface Detail : | Brand Name | Model Name | Amount | Pins | Pin Pitch | Pin Configuration |
| JAE | FA5S040HP1 | 1 pcs | 40 pins | 0.5 mm | ||
whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 152.4(W)×91.44(H) mm, outline size of 167.7(W)×109.5(H)×20.3(D) mm, viewing area size of 156.2(W)×94.5(H) mm, net weight of 214g (Typ.). As a IPS, Normally Black, Transmissive LCM product, TX18D210VM0BAA can provides 800 cd/m² display brightness 1200:1 transimissive contrast ratio, 85/85/85/85 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 30 (Typ.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit gray scale signal for each dot, thus presenting a palette of 262K colors, also with performance of color gamut 72% (NTSC). This product adopted WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 50K hours, With LED Driver. TX18D210VM0BAA utilizes Parallel RGB (1 ch, 6-bit) as it's signal inputting systerm, which connected by 40 pins Connector with power supply voltage of 3.3V (Typ.)
