Product Details:
|
| Size: | 12.1 Inch | Resolution: | 800*600 |
|---|---|---|---|
| Brightness: | Brightness | Viewing Angle: | 70/70/55/65 (Typ.)(CR≥10) |
| Display Colors: | 262K/16.7M 72% NTSC | Signal Interface: | LVDS (1 Ch, 6/8-bit) , 30 Pins Connector |
| Contrast Ratio: | 600:1 (Typ.) (TM) | Response Time: | 10/20 (Typ.)(Tr/Td) |
| Lamp Type: | WLED , 50K Hours , With LED Driver | Environment: | Operating Temp.: -10 ~ 70 °C ; Storage Temp.: -30 ~ 80 °C |
| High Light: | 12.1 Inch LG TFT Display,30 pins LG TFT Display,LB121S03-TL04 |
||
12.1 Inch RGB Vertical Stripe LB121S03-TL04 30 pins Connector For Industrial
1. Main Information:

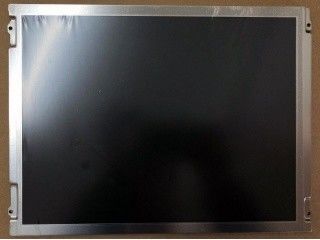

The LB121S03-TL04 (Alias: LB121S03 (TL)(04)) is a 12.1 inch diagonal a-Si TFT-LCD display panel product from LG Display Co., Ltd.with an integral WLED backlight system, With LED Driver , without touch screen. It features an operating temperature range of -10 ~ 70°C , a storage temperature range of -30 ~ 80°C , and the maximal vibration level of 1.0G (9.8 m/s²).
It's general features are following: WLED Backlight, Life ≥ 50K hours, With LED Driver, 6/8 bit, Matte . Based on its features, this model be applied to Industrial etc.
2. LG Display LB121S03-TL04 Optical Features:
| Basic Information : | Luminance (cd/m²) | Viewing Angle (L/R/U/D) | Response Time (ms) |
|---|---|---|---|
| 400 (Typ.) | 70/70/55/65 (Typ.)(CR≥10) | 10/20 (Typ.)(Tr/Td) | |
| Best View on | Display Mode | Contrast Ratio | |
| - | TN, Normally White, Transmissive | 600 : 1 (Typ.) (Transmissive) | |
| Dispaly Color : | Color Temperature | Display Colors | White Coordinate |
| 7037K | 262K/16.7M (6-bit / 6-bit + Hi-FRC) | X:0.305; Y:0.320 | |
| 1931 Color Gamlt : | NTSC Ratio | sRGB Coverage | Adobe RGB Coverage |
| 71% | 95% | 73% | |
| DCI-P3 Coverage | Rec.2020 Coverage | Remarks | |
| 73% | 53% | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) | |
| White Variation : | 1.25/1.45 (Typ./Max.)(5 points) | ||
3. LG Display LB121S03-TL04 Mechanical Features:
| Panel Size : | 12.1 Inch | |||
|---|---|---|---|---|
| Pixel Features : | Pixel Format | Pixel Configuration | Pixel Pitch (mm) | Dot Pitch (mm) |
| 800(RGB)×600 [SVGA] | RGB Vertical Stripe | 0.3075×0.3075 [82PPI] | 0.1025×0.3075 | |
| Mechanical Size : | Active Area (mm) | Bezel Area (mm) | Outline Dimension (mm) | Outline Depth (mm) |
| 246(H) × 184.5(V) | - | 276(H) × 209(V) | 10.6 (Max.) mm | |
| Outline Features : | Form Factor | Orientation | Aspect Ratio | Shape Style |
| Flat Rectangle | Landscape type | 4:3 (H:V) | - | |
| Mounting : | Face mounting holes (4-Φ3.4) on left, right bezel | |||
| Other Detail : | Weight | Panel Cover | Treatment | |
| 600g (Max.) | - | Antiglare | ||
4. LG Display LB121S03-TL04 Interface Features:
| Panel Driving Electrical : | Voltage Supply | Current Supply | Power | |||
|---|---|---|---|---|---|---|
| 3.3V (Typ.) | 240/290mA (Typ./Max.) | 0.80/0.96W (Typ./Max.) | ||||
| Interface Features : | Position | Signal | Type | |||
| - | LVDS (1 ch, 6/8-bit) | Connector | ||||
| Connector Detail : | Brand | Model | Pin Pitch | Pin Amount | Quantity | Configuration |
| JAE | FI-XB30SL-HF10 | 1.0 mm | 30 pins | 1 pcs | ||
5. FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
