Product Details:
|
| Size: | 7 Inch | Luminance: | 220 Cd/m² (Typ.) |
|---|---|---|---|
| Work Mode: | TN, Normally White, Transmissive | Viewing Angle: | 65/65/45/55 (Typ.)(CR≥10) |
| Backlight: | 1 Pcs CCFL , 20K Hours , No Driver | Good View At: | 6 O'clock |
| Voltage Supply: | 3.3/5.0/16.5/-10V (Typ.)(VDD1/VDD2/VGH/VGL) | Color Depth: | Full Color |
| Max. Ratings: | Storage Temp.: -20 ~ 70 °C Operating Temp.: -10 ~ 60 °C | Signal Type: | TFT Specific Analog RGB , 26 Pins FPC |
| High Light: | LB070W02-TMJ2,Full Color LG TFT Display,7 Inch LG TFT Display |
||

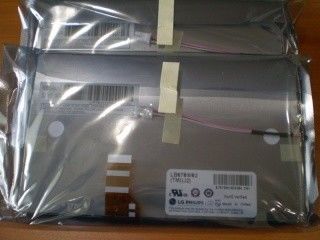

7 Inch TFT Specific Analog RGB LB070W02-TMJ2 Full Color Display
1. Main Information:
The LB070W02-TMJ2 (Alias: LB070W02 (TM)(J2)) is a 7.0 inch diagonal a-Si TFT-LCD display panel product from LG. LCD Co., Ltd. with an integral CCFL backlight system, without backlight driver, without touch screen. It features an operating temperature range of -10 ~ 60°C , a storage temperature range of -20 ~ 70°C , and the maximal vibration level of 1.5G (14.7 m/s²).
It's general features are following: 180° Reverse, Matte , Full color depth depends on application Ics and frame buffer. Based on its features, this model be applied to Digital Photo Frame, Portable DVD Player, Video Door Phone etc.
2. LCD LB070W02-TMJ2 Mechanical Features:
| Screen Size : | 7 Inch | |||
|---|---|---|---|---|
| Pixel Features : | Pixel Number | Pixel Format | Dot Pitch (H×V) | Pixel Pitch (H×V) |
| 480(RGB)×234 | RGB Vertical Stripe | 0.107×0.370 mm | 0.321×0.370 mm [76PPI] | |
| Mechanical Size : | Display Area (H×V) | Bezel Opening (H×V) | Overall Dimension (H×V) | Overall Depth |
| 154.08×86.58 mm | 156.2×88.8 mm | 164.9×100 mm | 5.7±0.3 mm | |
| Outline Features : | Form Shape | Aspect Ratio (H:V) | Orientation | Shape Style |
| Flat Rectangle | 16:9 | Landscape type | - | |
| Other Spec : | Mass | Panel Cover | Surface Treatment | |
| 170g (Typ.) | - | Antiglare | ||
| Holes & Brackets : | Without | |||
3. LCD LB070W02-TMJ2 Optical Features:
| Basic Information : | Luminance | Work Mode | Contrast Ratio |
|---|---|---|---|
| 220 cd/m² (Typ.) | TN, Normally White, Transmissive | 400:1 (Typ.) (Transmissive) | |
| Good View at | Viewing Angle | Response Time | |
| 6 o'clock | 65/65/45/55 (Typ.)(CR≥10) | 10/15 (Typ.)(Tr/Td) (ms) | |
| Dispaly Color : | Color Temperature: | Support Color | Color Coordinate |
| 6202K | Full color | X:0.317; Y:0.341 |
4. LCD LB070W02-TMJ2 Backlight Features:
| Back-light Features: | Type | Position | Life(Hours) | Amount | Shape | Replacement |
|---|---|---|---|---|---|---|
| CCFL | Edge light type | 20K(Min.) | 1 pcs | L shape | - | |
| CCFL Electrical : | Input Voltage | Input Current | Power Consumption | |||
| 567/594/633V (Min./Typ./Max.) | 3.0/6.0/7.0mA (Min./Typ./Max.) | 3.56W (Typ.) | ||||
| Operating Frequency | Startup Voltage | |||||
| 45/80KHz (Min./Max.) | 830/940V (Max.)(Ta=+25/0℃) | |||||
| Interface Features : | CCFL Driver State | Physical Type | Interface Position | |||
| No | Connector | - | ||||
| Interface Detail | Brand Name | Model Name | Amount | Pins | Pin Pitch | Pin Configuration |
| JST | BHSR-02VS-1 | 1 pcs | 2 pins | 3.5 mm | BLL-2PINS-HL | |
5. FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
