Product Details:
|
| Size: | 6.4 Inch | Resolution: | 640*480 |
|---|---|---|---|
| Brightness: | 250 Cd/m² (Typ.) | Viewing Angle: | 45/45/15/35 (Typ.)(CR≥10) |
| Best View On: | 6 O'clock | Display Colors: | 262K |
| Signal Interface: | TTL (1 Ch, 6-bit) , 30 Pins Connector | Touch Screen: | Without |
| Lamp Type: | 1 Pcs CCFL , 20K Hours , Without Driver | Environment: | Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C |
| Highlight: | 640*480 LG TFT Display,6.4 Inch LG TFT Display,LB064V02-A1 |
||
6.4 Inch 640*480 30 pins Connector LB064V02-A1 Without Driver For Industrial
1. Main Information:

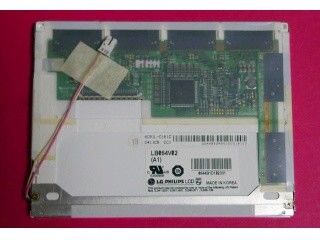

LB064V02-A1 (Alias: LB064V02 (A1)) is a 6.4 inch diagonal a-Si TFT-LCD display panel product, with an integral CCFL backlight system, without backlight driver, without touch screen. It features an operating temperature range of 0 ~ 50°C , a storage temperature range of -20 ~ 60°C , and the maximal vibration level of 1.5G (14.7 m/s²).
It's general features are following: Matte . Based on its features,this model be applied to Industrial etc.
2. LCD LB064V02-A1 Mechanical Details:
| Pixel Features : | Pixel Format | 640(RGB)×480 [VGA] | Dot Pitch | 0.068×0.204 mm (H×V) |
|---|---|---|---|---|
| Configuration | RGB Vertical Stripe | Pixel Pitch | 0.204×0.204 mm (H×V) [124PPI] | |
| Mechanical Size : | Display Area | 130.56×97.92 mm (H×V) | Bezel Area | 133.8×101.1 mm (H×V) |
| Outline Dim. | 145.5×111.5 mm (H×V) | Outline Depth | 6.0±0.3 mm | |
| Outline Features : | Form Factor | Flat Rectangle | Orientation | Landscape type |
| Aspect Ratio | 4:3 (H:V) | Shape Style | - | |
| Holes & Brackets : | Side mounting holes (4-M2) | |||
| Other Features : | Weight | 160/170g (Typ./Max.) | Surface | Antiglare (Haze 13%), Hard coating (3H) |
3. LCD LB064V02-A1 Optical Details:
| Basic Information : | Brightness | 250 cd/m² (Typ.) | Contrast Ratio | 300:1 (Typ.) (Transmissive) |
|---|---|---|---|---|
| Viewing Angle | 45/45/15/35 (Typ.)(CR≥10) | Optical Mode | TN, Normally White, Transmissive | |
| Viewing Direction | 6 o'clock | Response Time | 15/30 (Typ.)(Tr/Td) (ms) | |
| Color Performance : | Chromaticity | - | Color Numbers | 262K (6-bit) |
| Color Temperature | - | White Uniformity | 1.40/1.60 (Typ./Max.)(5 points) |
4. LCD LB064V02-A1 Backlight Details:
| Back-light Features: | Lamp Shape | - | Lamp Type | CCFL | Life Time | 20K(Min.) (Hours) |
|---|---|---|---|---|---|---|
| Replacement | - | Amount | 1 pcs | Position | Edge light type (Bottom side) | |
| Lamp Electrical : | Voltage Input | 355V (Typ.) | Current Input | 5.0mA (Typ.) | ||
| Frequency | 40/60/80KHz (Min./Typ./Max.) | Kick-off Voltage | - | |||
| Consumption | 1.78W (Typ.) | |||||
| Interface Features : | Type | Connector | Position | - | Lamp Driver | No |
| Interface Detail : | Brand | Model | Pin Pitch | Pins | Amount | Configuration |
| JST | BHSR-02VS-1 | 3.5 mm | 2 pins | 1 pcs | BLL-2PINS-HL | |
5. FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
