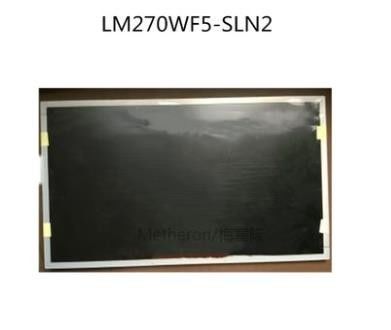

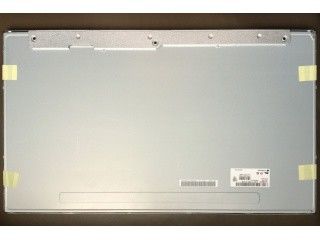

27.0in 1920x1080 Industrial Lcd Panel 300cd/M2 81PPI LM270WF5-SLN2

27.0in 1920x1080 Industrial Lcd Panel 300cd/M2 81PPI LM270WF5-SLN2
27.0in 1920x1080 Industrial Lcd Panel 300cd/M2 81PPI LM270WF5-SLN2 27.0in 1920x1080 Industrial Lcd Panel 300cd/M2 81PPI LM270WF5-SLN2 27.0in 1920x1080 Industrial Lcd Panel 300cd/M2 81PPI LM270WF5-SLN2 27.0in 1920x1080 Industrial Lcd Panel 300cd/M2 81PPI LM270WF5-SLN2

Large Image :  27.0in 1920x1080 Industrial Lcd Panel 300cd/M2 81PPI LM270WF5-SLN2

Product Details:
Place of Origin: JAPAN
Brand Name: LG DISPLAY
Certification: ISO9001
Model Number: LM270WF5-SLN2
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Packaging Details: STANDARD PACKING
Delivery Time: 1-2 DAYS
Payment Terms: TT/PAYPAL/ESCROW/WESTERN UNION
Supply Ability: 200PCS

27.0in 1920x1080 Industrial Lcd Panel 300cd/M2 81PPI LM270WF5-SLN2

Description
MODEL NUMBER: LM270WF5-SLN2 BRAND: LG DISPLAY
SIZE: 27.0INCH BRIGHTNESS: 300CD/M2
Lamp Type: WLED RESOLUTION: 1920(RGB)×1080, FHD, 81PPI
VIEWING ANGLEG: 89/89/89/89 (Typ.)(CR≥10) TEMPERATURE RANGE: Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C
High Light:

27.0in Industrial Lcd Panel

,

1920x1080 Industrial Lcd Panel

,

81PPI Tft Lcd Screen

LG Display LM270WF5-SLN2 Application Details

Basic Info :
Panel Brand

LM270WF5-SLN2Panel Model
Diagonal Size
Application





  •
Panel Type
a-Si TFT-LCD , LCM

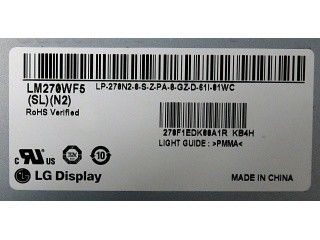

Model Alias
LM270WF5 (SL)(N2)
Reliability :
Operating Temp.
0 ~ 50 °C
Storage Temp.
-20 ~ 60 °C
RoHS State

1.0G (9.8 m/s²)Vibration Rating



LG Display LM270WF5-SLN2 Mechanical Details

Pixel Features :
Pixel Format
1920(RGB)×1080, FHD
Dot Pitch
0.1038×0.3114 mm (H×V)
Configuration
RGB Vertical Stripe
Pixel Pitch
0.3114×0.3114 mm (H×V) [81PPI]
Mechanical Size :
Display Area
597.888×336.312 mm (H×V)
Bezel Area
602.0×340.4 mm (H×V)
Outline Dim.
630×368.2 mm (H×V)
Outline Depth
8.7/12.2 (Typ./Max.) mm
Outline Features :
Form Factor
Flat Rectangle
Orientation
Landscape type
Aspect Ratio
16:9 (H:V)
Shape Style
Normal bezel
Holes & Brackets :
Side mounting holes (4-M3) on left, right bezel
Other Features :
Weight
3.15/3.31Kgs (Typ./Max.)
Surface
Antiglare, Hard coating (3H)



LG Display LM270WF5-SLN2 Optical Details

Basic Information :
Brightness
300 cd/m² (Typ.)
Contrast Ratio
1000:1 (Typ.) (Transmissive)
Viewing Angle
89/89/89/89 (Typ.)(CR≥10)
Optical Mode
S-IPS, Normally Black, Transmissive
Viewing Direction
Symmetry
Response Time
14 (Typ.)(G to G) ms
Color Performance :
Chromaticity
Wx:0.313; Wy:0.329
Color Numbers
16.7M (6-bit + Hi-FRC)
Color Temperature
6485K
Uniformity
1.33 (Max.)(9 points)
1931 Color Gamlt :
NTSC Ratio
72%
sRGB
95% coverage
Adobe RGB
74% coverage
DCI-P3
75% coverage
Rec.2020
54% coverage
Remarks
sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)



LG Display LM270WF5-SLN2 Backlight Details

Back-light Features :
Lamp Type
WLED
Amount
14S3P
Life Time
30K(Min.) (Hours)
Replacement
-
Lamp Shape
3 strings
Position
Edge light type (Right side)
Lamp Electrical :
Voltage Input
43.4±2.8V
Current Input

Interface Features :
Type
Connector
Position

NoLamp Driver
Interface Detail :
Brand
Model
Pin Pitch
Pins
Amount
Configuration
JST
1.0 mm
6 pins
1 pcs
BLE-6PINS-CNAACC



LG Display LM270WF5-SLN2 Interface Detail

Signal Systerm :
LVDS (2 ch, 8-bit)
Logic Voltage
-
Signal Electrical :
Voltage Input
5.0V (Typ.)
Current Input
0.82/1.025A (Typ./Max.)
Consumption
4.10/5.13W (Typ./Max.)
Interface Features :
Type
Connector
Position
Connector Detail :
Brand
Model
Pin Pitch
Pins
Amount
Configuration
UJU
1.0 mm
30 pins
1 pcs
LVDS-30P2C8B-160B

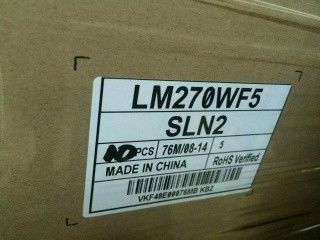

LG Display LM270WF5-SLN2 Carton Details

Package Carton : Amount Net Weight Carton Size (L×W×H)
10 pcs / box - 700×355×430 mm
