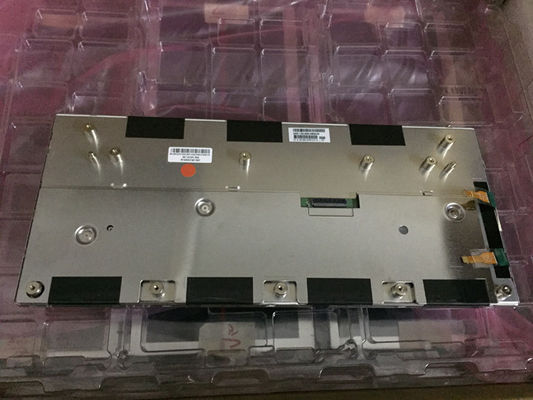

Product Details:
|
| MODEL NUMBER: | LA123WF4-SR09 | TEMPERATURE RANGE: | Operating Temperature: -40 ~ 85 °C ; Storage Temperature: -40 ~ 95 °C ; Vibration Level: 3.0G (29.4 M/s²) |
|---|---|---|---|
| VIEWING ANGLEG: | 89/89/89/89 (Typ.)(CR≥10) | RESOLUTION: | 1920(RGB)×720 167PPI |
| Lamp Type: | WLED | BRIGHTNESS: | 600CD/M2 |
| SIZE: | 12.3 Inch | BRAND: | LG DISPLAY |
| High Light: | 12.3" NTSC TFT LCD Panel,167PPI WLED TFT LCD Panel,1920×720 RGB Industrial TFT Display |
||
| Basic Info : | Panel Brand | Panel Model | LA123WF4-SR09 | |
|---|---|---|---|---|
| Diagonal Size | 12.3" | Application | ||
| Panel Type | a-Si TFT-LCD , LCM | Model Alias | LA123WF4 (SR)(09) | |
| Reliability : | Operating Temp. | -40 ~ 85 °C | Storage Temp. | -40 ~ 95 °C |
| RoHS State | Vibration Rating | 3.0G (29.4 m/s²) |
| Pixel Features : | Pixel Format | 1920(RGB)×720 | Dot Pitch | 0.0507×0.1521 mm (H×V) |
|---|---|---|---|---|
| Configuration | RGB Vertical Stripe | Pixel Pitch | 0.1521×0.1521 mm (H×V) [167PPI] | |
| Mechanical Size : | Display Area | 292.032×109.512 mm (H×V) | Bezel Area | 296.03×113.5 mm (H×V) |
| Outline Dim. | 310×128 mm (H×V) | Outline Depth | 8.2/10.25 (Typ./Max.) mm | |
| Outline Features : | Form Factor | Flat Rectangle | Orientation | Landscape type |
| Aspect Ratio | 8:3 (H:V) | Shape Style | ||
| Other Features : | Weight | - | Surface | Antiglare, Antireflection |
| Basic Information : | Brightness | 600 cd/m² (Min.) | Contrast Ratio | 800:1 (Min.) (Transmissive) |
|---|---|---|---|---|
| Viewing Angle | 89/89/89/89 (Min.)(CR≥10) | Optical Mode | IPS, Normally Black, Transmissive | |
| Viewing Direction | Symmetry | Response Time | 30 (Max.)(G to G); 30 (Typ.)(MPRT) (ms) | |
| Color Performance : | Chromaticity | Wx:0.313; Wy:0.329 | Color Numbers | 16.7M (8-bit) |
| Color Temperature | 6485K | White Uniformity | 1.25 (Max.) | |
| Dispaly Performance : | Outdoor Visibility | Sunlight Readable | Transmittance | - |
| Back-light Features: | Lamp Shape | 6 strings | Lamp Type | WLED | Life Time | 10K(Min.) (Hours) |
|---|---|---|---|---|---|---|
| Replacement | - | Amount | 8S6P | Position | Edge light type | |
| Lamp Electrical : | Voltage Input | 23.6±3.1V | Current Input | 65±5mA | ||
| Consumption | 7.2/9.2/11.63W (Min./Typ./Max.) | |||||
| Interface Features : | Type | FPC | Position | - | Lamp Driver | No |
| Interface Detail : | Brand | Model | Pin Pitch | Pins | Amount | Configuration |
| 0.5 mm | 20 pins | 1 pcs | ||||
| Signal Systerm : | RSDS (2 Channel) | Logic Voltage | - | |||
|---|---|---|---|---|---|---|
| Signal Electrical : | Voltage Input | 3.3/13.0V (Typ.)(VCC/VDD) | Current Input | 130/130mA (Max.)(ICC/IDD) | ||
| Interface Features : | Type | FPC | Position | - | ||
| FPC Detail : | Brand | Model | Pin Pitch | Pins | Amount | Configuration |
| 0.5 mm | 50 pins | 1 pcs | ||||
| 0.5 mm | 60 pins | 1 pcs | ||||
| Package Carton : | Amount | Net Weight | Carton Size (L×W×H) |
|---|---|---|---|
| 12 pcs / box | - | 478×365×195 mm |
