300cd/m2 24.0in Symmetry TFT LCD Panel LM240WUA-SSA1 94PPI 89/89/89/89 (Typ.)(CR≥10)

300cd/m2 24.0in Symmetry TFT LCD Panel LM240WUA-SSA1 94PPI 89/89/89/89 (Typ.)(CR≥10)
300cd/m2 24.0in Symmetry TFT LCD Panel LM240WUA-SSA1 94PPI 89/89/89/89 (Typ.)(CR≥10) 300cd/m2 24.0in Symmetry TFT LCD Panel LM240WUA-SSA1 94PPI 89/89/89/89 (Typ.)(CR≥10) 300cd/m2 24.0in Symmetry TFT LCD Panel LM240WUA-SSA1 94PPI 89/89/89/89 (Typ.)(CR≥10) 300cd/m2 24.0in Symmetry TFT LCD Panel LM240WUA-SSA1 94PPI 89/89/89/89 (Typ.)(CR≥10)

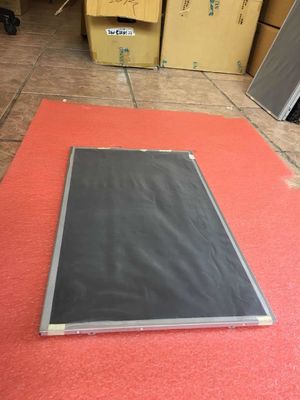

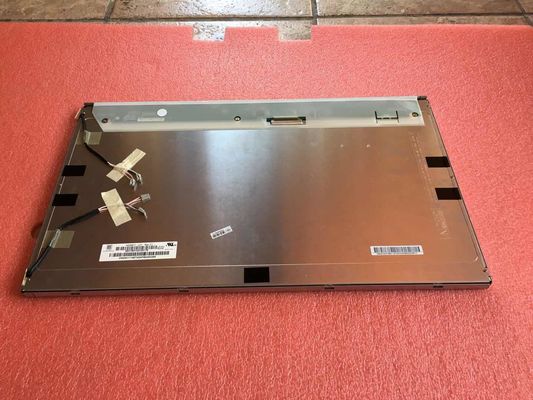

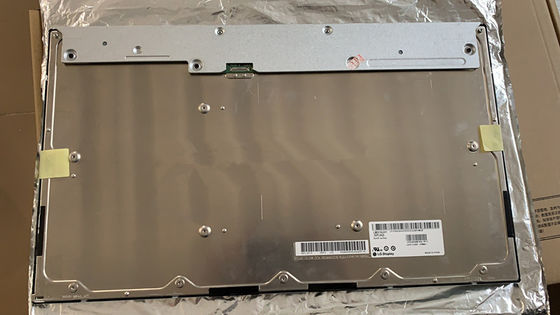

Large Image :  300cd/m2 24.0in Symmetry TFT LCD Panel LM240WUA-SSA1 94PPI 89/89/89/89 (Typ.)(CR≥10)

Product Details:
Place of Origin: JAPAN
Brand Name: LG DISPLAY
Certification: ISO9001
Model Number: LM240WUA-SSA1
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Packaging Details: STANDARD PACKING
Delivery Time: 1-2 DAYS
Payment Terms: TT/PAYPAL/ESCROW/WESTERN UNION
Supply Ability: 1000PCS

300cd/m2 24.0in Symmetry TFT LCD Panel LM240WUA-SSA1 94PPI 89/89/89/89 (Typ.)(CR≥10)

Description
MODEL NUMBER: LM240WUA-SSA1 BRAND: LG DISPLAY
SIZE: 24.0 Inch BRIGHTNESS: 300CD/M2
Lamp Type: WLED RESOLUTION: 1920(RGB)×1200 [WUXGA] 94PPI
VIEWING ANGLEG: 89/89/89/89 (Typ.)(CR≥10) TEMPERATURE RANGE: Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C
High Light:

300cd/m2 Symmetry TFT LCD Panel

,

24.0in Symmetry TFT LCD Panel

,

94PPI WVGA Industrial TFT Display

LG Display LM240WUA-SSA1 Application Features

Basic Information : Brand Name Model Name Type Model Alias
  LM240WUA-SSA1 a-Si TFT-LCD , LCM LM240WUA (SS)(A1)
Maximum Ratings : RoHS Operating Temperature Storage Temperature Vibration Level
  0 ~ 50 °C -20 ~ 60 °C





LG Display LM240WUA-SSA1 Mechanical Features

Screen Size : 24.0"
Pixel Features : Pixel Number Pixel Format Dot Pitch (H×V) Pixel Pitch (H×V)
1920(RGB)×1200, WUXGA RGB Vertical Stripe 0.090×0.270 mm 0.270×0.270 mm [94PPI]
Mechanical Size : Display Area (H×V) Bezel Opening (H×V) Overall Dimension (H×V) Overall Depth
518.4×324 mm - 528.2×342.6 mm 9/13.5 (Typ./Max.) mm
Outline Features : Form Shape Aspect Ratio (H:V) Orientation Shape Style
Flat Rectangle 16:10 Landscape type 3-side borderless
Other Spec : Mass Panel Cover Surface Treatment
2.45/2.60Kgs (Typ./Max.) - Antiglare (Haze 25%), Hard coating (3H)
Holes & Brackets : Rear mounting poles (9-M3)



LG Display LM240WUA-SSA1 Optical Features

Basic Information : Luminance Work Mode Contrast Ratio
300 cd/m² (Typ.) IPS, Normally Black, Transmissive 1000:1 (Typ.) (Transmissive)
Good View at Viewing Angle Response Time
Symmetry 89/89/89/89 (Typ.)(CR≥10) 14 (Typ.)(G to G) (ms)
Dispaly Color : Color Temperature: Support Color Color Coordinate
6485K 16.7M (6-bit + Hi-FRC) X:0.313; Y:0.329
1931 Color Gamlt : NTSC Ratio sRGB Coverage Adobe RGB Coverage
76% 100% 77%
DCI-P3 Coverage Rec.2020 Coverage Remarks
79% 57% sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)
White Uniformity : 1.33 (Max.)(9 points)



LG Display LM240WUA-SSA1 Backlight Features

Back-light Features: Type Position Life(Hours) Amount  Shape Replacement
WLED Edge light type (Bottom side) 30K(Min.) 13S4P 4 strings -
WLED Electrical : Input Voltage Input Current Power Consumption
40.3±2.6V 80/85mA (Typ./Max.) 12.9/13.7W (Typ./Max.)
Interface Features : WLED Driver State Physical Type Interface Position
No Connector
Interface Detail Brand Name Model Name Amount Pins Pin Pitch Pin Configuration
  BM06B-SHJS(HF) 1 pcs 6 pins 1.0 mm BEL-6PINS-CCAACC



LG Display LM240WUA-SSA1 Interface Features

Signal Electrical : Input Voltage Input Current Power Consumption
10.0V (Typ.) 456/580mA (Typ./Max.) 4.65/5.8W (Typ./Max.)
Interface Features : Signal Type Physical Type Interface Position
LVDS (2 ch, 8-bit) Connector
Interface Detail : Brand Name Model Name Amount Pins Pin Pitch Pin Configuration
LS Mtron GT103-30S-H23-D 1 pcs 30 pins 1.0 mm

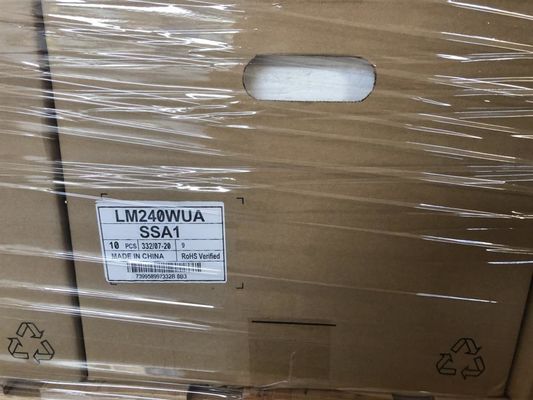

LG Display LM240WUA-SSA1 Packing Features

Package Box : Amount Weight Size (L×W×H)
10 pcs / box - 625×360×412 mm (L×W×H)



 FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
