N116HSE-EA1 CHIMEI Innolux 11.6" 1920(RGB)×1080 350 cd/m² INDUSTRIAL LCD DISPLAY

N116HSE-EA1 CHIMEI Innolux 11.6" 1920(RGB)×1080 350 cd/m² INDUSTRIAL LCD DISPLAY
N116HSE-EA1 CHIMEI Innolux 11.6" 1920(RGB)×1080 350 cd/m² INDUSTRIAL LCD DISPLAY N116HSE-EA1 CHIMEI Innolux 11.6" 1920(RGB)×1080 350 cd/m² INDUSTRIAL LCD DISPLAY N116HSE-EA1 CHIMEI Innolux 11.6" 1920(RGB)×1080 350 cd/m² INDUSTRIAL LCD DISPLAY N116HSE-EA1 CHIMEI Innolux 11.6" 1920(RGB)×1080 350 cd/m² INDUSTRIAL LCD DISPLAY

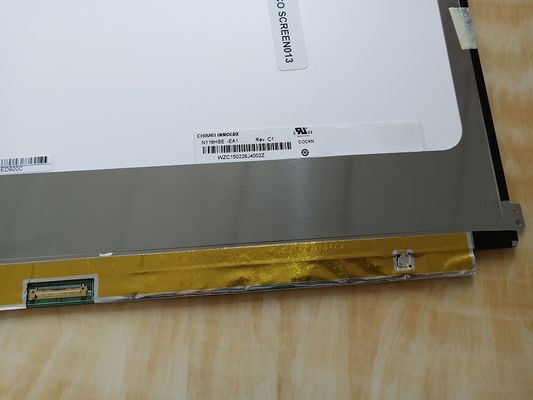

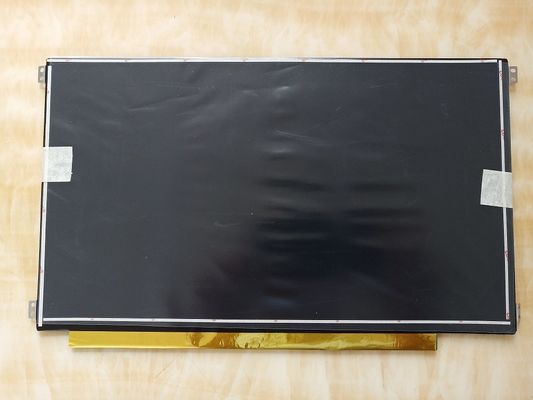

Large Image :  N116HSE-EA1 CHIMEI Innolux 11.6" 1920(RGB)×1080 350 cd/m² INDUSTRIAL LCD DISPLAY

Product Details:
Place of Origin: JAPAN
Brand Name: INNOLUX
Certification: ISO9001
Model Number: N116HSE-EA1
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Packaging Details: STANDARD PACKING
Delivery Time: 1-2 DAYS
Payment Terms: TT/PAYPAL/ESCROW/WESTERN UNION
Supply Ability: 1000PCS
Contact Now

N116HSE-EA1 CHIMEI Innolux 11.6" 1920(RGB)×1080 350 cd/m² INDUSTRIAL LCD DISPLAY

Description
MODEL NUMBER: N116HSE-EA1 BRAND: INNOLUX
SIZE: 11.6inch BRIGHTNESS: 350CD/M2
Lamp Type: WLED RESOLUTION: 1920(RGB)×1080, FHD, 190PPI
VIEWING ANGLEG: 89/89/89/89 (Typ.)(CR≥10 TEMPERATURE RANGE: Ating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C
High Light:

NTSC Lcd Video Panel

,

Antiglare NEC TFT Display

,

Capacitive TFT Touch Panel

Chimei Innolux N116HSE-EA1 Application Details

Basic Information :
Brand

N116HSE-EA1Model
Type
a-Si TFT-LCD , LCM
Used For

11.6 inchScreen Size
Alias
CMN1124
Environment :
Storage Temp.
-20 ~ 60 °C
Operating Temp.
0 ~ 50 °C



Chimei Innolux N116HSE-EA1 Mechanical Details

Pixel Features :
Resolution
1920(RGB)×1080, FHD
Dot Pitch(mm)
0.0445×0.1335 (H×V)
Pixel Format
RGB Vertical Stripe
Pixel Pitch(mm)
0.1335×0.1335 (H×V) [190PPI]
Mechanical Size :
Active Area(mm)
256.32(H) × 144.18(V)
Bezel Area(mm)
258.32(H) × 146.18(V)
Outline Dim.(mm)
278.1(H) × 166(V)
Depth(mm)
2.82/3.07 (Typ./Max.)
Outline Features :
Form Style
Flat Rectangle
Shape Style
Slim (PCBA Flat, T≤3.2mm)
Aspect Ratio
16:9 (H:V)
Orientation
Landscape type
Mounting :
Face mounting holes (8 pcs) on left, right slugs
Other Spec :
Weight
195/210g (Typ./Max.)
Treatment
Antiglare, Hard coating (3H)



Chimei Innolux N116HSE-EA1 Optical Details

Basic Information :
Luminance(cd/m²)
350 (Typ.)
Contrast Ratio
700:1 (Typ.) (Transmissive)
Viewing Angle
89/89/89/89 (Typ.)(CR≥10)
Display Mode
AAS, Normally Black, Transmissive
Best View on
Symmetry
Response(ms)
14/11 (Typ.)(Tr/Td)
Color Performance :
White Coordinate
Wx:0.313; Wy:0.329
Display Colors
16.7M (8-bit)
Color Temperature
6485K
White Uniformity
1.25/1.43 (Typ./Max.)(9 points)
1931 Color Gamlt :
NTSC Ratio
72%
sRGB
93% coverage
Adobe RGB
72% coverage
DCI-P3
75% coverage
Rec.2020
54% coverage
Remarks
sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)



Chimei Innolux N116HSE-EA1 Interface Detail

Signal Electrical :
Voltage Supply
3.3V (Typ.)
Current Supply
330/370mA (Typ./Max.)
Consumption
1.12W (Max.)
Signal Type :
eDP (2 Lanes)
Logic Voltage
-
Interface Features :
Position

ConnectorType
Interface Detail :
Brand
Model
Pitch
Pins
Quantity
Pin Configuration
I-PEX
20455-030E-12
0.5 mm
30 pins
1 pcs
EDP-30P2L-020A



Chimei Innolux N116HSE-EA1 Backlight Details

Backlight Features :
Type
WLED
Quantity
-
Position
Edge light type
Replacement
-
Shape
-
Life Time
12K(Min.) (Hours)
Lamp Electrical :
Voltage Supply
30.8/33.0/36.3V (Min./Typ./Max.)
Current Supply
88mA (Typ.)
Consumption
2.710/2.904/3.194W (Min./Typ./Max.)
Interface Features :
Position
-
Type
Included in panel signal interface
Backlight Driver :
With LED Driver
Driver Electrical :
Voltage Supply
5.0/12.0/21.0V (Min./Typ./Max.)
Current Supply
238/285/329mA (Min./Typ./Max.)
Consumption
3.95W (Max.)



Chimei Innolux N116HSE-EA1 Packing Details

Package Box : Quantity Weight Box Size
30 pcs / box 9.0 Kgs 540×450×275 mm (L×W×H)



  FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
