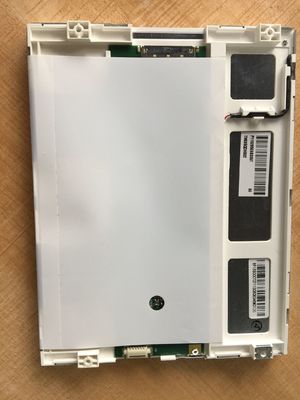

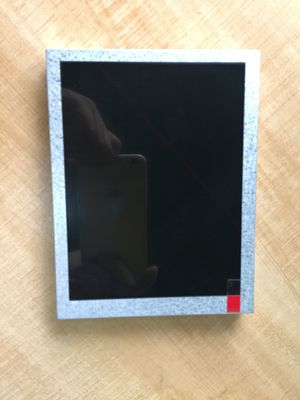

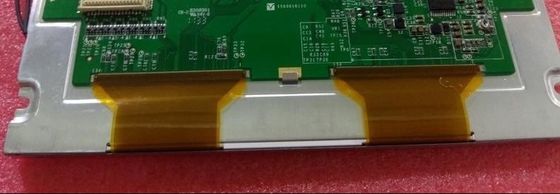

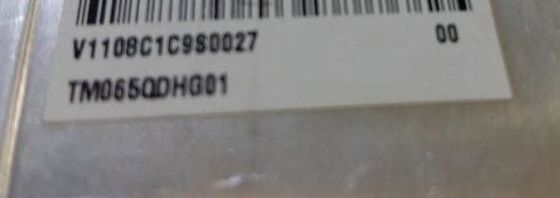

Product Details:
|
| MODEL NUMBER: | TM065QDHG01-00 | BRAND: | TIANMA |
|---|---|---|---|
| SIZE: | 6.5 Inch | RESOLUTION: | 640(RGB)×480, VGA, 122PPI |
| BRIGHTNESS: | 400 Cd/m² (Typ.) | Viewing Angle: | 70/70/60/70 (Typ.)(CR≥10) |
| TEMPERATURE RANGE: | Operating Temp.: -20 ~ 70 °C ; Storage Temp.: -30 ~ 80 °C | ||
| High Light: | RGB 640×480 Tianma LCD TFT,400cd/m2 Tianma LCD TFT,VGA 122PPI Tianma Panel |
||
| Basic Information : | Brand | Model | Type | Model Alias |
|---|---|---|---|---|
 |
TM065QDHG01-00 | a-Si TFT-LCD , LCM | - | |
| Reliability : | RoHS | Operating Temperature | Storage Temperature | Vibration Resistance |
|
-20 ~ 70 °C | -30 ~ 80 °C | - | |
| Designed For : |
|
|||
| Specific Features : |
|
|||
| Panel Size : | 6.5 inch | |||
|---|---|---|---|---|
| Pixel Features : | Resolution | Pixel Arrangement | Dot Pitch (W×H) | Pixel Pitch (W×H) |
| 640(RGB)×480, VGA | RGB Vertical Stripe | 0.069×0.207 mm | 0.207×0.207 mm [122PPI] | |
| Mechanical Size : | Active Area (W×H) | Bezel Area (W×H) | Outline Dimension (W×H) | Outline Depth |
| 132.48×99.36 mm | 135.48×102.36 mm | 158×120.04 mm | 7.0 (Typ.) mm | |
| Outline Features : | Form Style | Aspect Ratio | Orientation | Shape Style |
| Flat Rectangle | 4:3 (W : H) | Landscape type | ||
| Fixation : | Rear mounting holes (4-R1.75) | |||
| Other Features : | Panel Cover | Weight | Surface | |
| - | TBD | Antireflection | ||
| Basic Information : | Brightness | Operating Mode | Contrast Ratio |
|---|---|---|---|
| 400 cd/m² (Typ.) | TN, Normally White, Transmissive | 500:1 (Typ.) (Transmissive) | |
| Viewing Angle(L/R/U/D) | Viewing Direction | Response Speed | |
| 70/70/60/70 (Typ.)(CR≥10) | 12 o'clock | 20 (Typ.)(Tr+Td) (ms) | |
| Dispaly Color : | Color Temperature | Color Amount | White color Chromaticity |
| 7592K | 262K (6-bit) | X:0.293; Y:0.332 | |
| 1931 Color Gamlt : | NTSC Ratio | sRGB Coverage | Adobe RGB Coverage |
| 53% | 73% | 56% | |
| DCI-P3 Coverage | Rec.2020 Coverage | Remarks | |
| 55% | 40% | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) | |
| Luminance Variation : | 1.25 (Typ.)(5 points) |
||
| Frame Rate : | 60Hz Reverse Scan :
| Yes (180°) |
|---|
| Signal Electrical : | Current Input | Voltage Input | Consumption | |||
|---|---|---|---|---|---|---|
| - | 3.3/5.0V (Typ.)(VCC) | - | ||||
| Voltage for Display Signals : | 0≤VIL≤0.3VCC; 0.7VCC≤VIH≤VCC | |||||
| Interface Features : | Position | Type | Interface | |||
| - | Connector | Parallel RGB (1 ch, 6-bit) | ||||
| Signal Interface : | Brand | Model | Amount | Pin Pitch | Pins | Pin Assignment |
| HRS | DF9B-31P-1V | 1 pcs | 1.0 mm | 31 pins |
DRGB-31P1C6B-010F
|
|
| Backlight Features: | Type | Position | Shape | Amount |
Life(Hours) | Replacement |
|---|---|---|---|---|---|---|
| WLED | Edge light type | Array | 6S3P | 50K(Typ.) | - | |
| WLED Electrical : | Current Input | Voltage Input | Consumption |
|||
| 75mA (Typ.) | 20V (Typ.) | |||||
| Interface Features : | Position | Type | WLED Driver | |||
| - | Connector | No | ||||
| Interface Detail | Brand | Model | Amount | Pin Pitch | Pins | Pin Assignment |
| JST | BHSR-02VS-1 | 1 pcs | 3.5 mm | 2 pins | BLE-2PINS-AC | |
