RGB 800×600 350cd/m2 Tianma Industrial Panel 10.4" TM104SDHG30-01

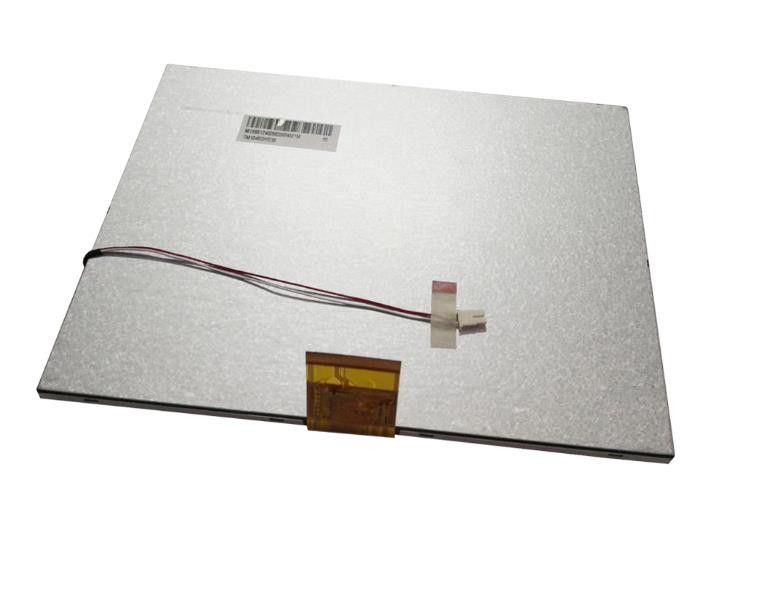

Large Image : RGB 800×600 350cd/m2 Tianma Industrial Panel 10.4" TM104SDHG30-01

Product Details:

Place of Origin:	JAPAN
Brand Name:	TIANMA
Certification:	ISO9001
Model Number:	TM104SDHG30-01

Payment & Shipping Terms:

Minimum Order Quantity:	1PCS
Packaging Details:	STANDARD PACKING
Delivery Time:	1-2 DAYS
Payment Terms:	TT/PAYPAL/ESCROW/WESTERN UNION
Supply Ability:	300PCS

Contact Now

RGB 800×600 350cd/m2 Tianma Industrial Panel 10.4" TM104SDHG30-01

Description

MODEL NUMBER:	TM104SDHG30-01	BRAND:	TIANMA
SIZE:	10.4 Inch	RESOLUTION:	800(RGB)×600 [SVGA] 96PPI
BRIGHTNESS:	350 Cd/m² (Typ.)	Viewing Angle:	70/70/60/70 (Typ.)(CR≥10
TEMPERATURE RANGE:	Operating Temperature: -20 ~ 70 °C ; Storage Temperature: -20 ~ 80 °C
High Light:	RGB 800×600 Tianma Industrial Panel , 50cd/m2 Tianma Industrial Panel , 10.4" Tianma LCD Panel

TIANMA TM104SDHG30-01 Application Details

Basic Detail :

Manufacturer

Model Name

TM104SDHG30-01

Panel Type

a-Si TFT-LCD , LCM

Another Name

Panel Size

10.4 inch

Designed For

Maximum Ratings :

OP Temperature

-20 ~ 70 °C

ST Temperature

-30 ~ 80 °C

RoHS

Vibration Level

Features :

TIANMA TM104SDHG30-01 Optical Details

Basic Information :

Luminance

350 cd/m² (Typ.)

Contrast Ratio

500:1 (Typ.) (Transmissive)

Good View at

12 o'clock

Response Speed

10/15 (Typ.)(Tr/Td) ms

Viewing Angle

70/70/60/70 (Typ.)(CR≥10)

Operating Mode

TN, Normally White, Transmissive

Color Performance :

Chromaticity

Wx:0.302; Wy:0.319

Support Color

262K/16.7M (6-bit / 6-bit + Dithering)

Color Temperature

7239K

White Variation

1.25/1.33 (Typ./Max.)(9 points)

1931 Color Gamlt :

NTSC Ratio

50%

sRGB

70% coverage

Adobe RGB

52% coverage

DCI-P3

52% coverage

Rec.2020

37% coverage

Remarks

sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)

TIANMA TM104SDHG30-01 Mechanical Details

Pixel Features :

Number of Pixel

800(RGB)×600, SVGA

Arrangement

RGB Vertical Stripe

Dot Pitch(W×H)

0.088×0.264 mm

Pixel Pitch(W×H)

0.264×0.264 mm [96PPI]

Physical Size :

Active Viewing

211.2(W)×158.4(H) mm

Overall Dim.

228.4(W)×175.4(H) mm

Bezel Opening

214.2(W)×162.5(H) mm

Overall Depth

6.2±0.3 mm

Outline Features :

Form Shape

Flat Rectangle

Orientation

Landscape type

Aspect Ratio(W:H)

4:3

Shape Style

Fixation :

without hole

Other Detail :

Mass

360g

Surface

Antiglare, Hard coating (3H)

TIANMA TM104SDHG30-01 Electronics Details

Refresh Rate :

60Hz

Reverse Scan :

Yes (180°)

Driver IC :

COG Built-in HX8282, HX8696

TIANMA TM104SDHG30-01 Interface Details

Signal Electrical :

Input Current

10.2/34.3/0.7/0.7mA (Typ.)(ICC/AIDD/IGH/IGL)

Input Voltage

3.3/11.0/25.0/-7.0V (Typ.)(VCC/AVDD/VGH/VGL)

Consumption

435mW (Typ.)

Signal Interface

Parallel RGB (1 ch, 6/8-bit)

Interface Features :

Position

Physical Type

FPC

Interface Detail :

Brand

Model

Pin Pitch

Pins

Amount

Pin Assignment

0.5 mm

60 pins

1 pcs

TIANMA TM104SDHG30-01 Lightting Details

Lamp Features :

Lamp Type

WLED

Amount

3S12P

Position

Edge light type

Exchange

Lamp Shape

Array

Lamp Life

30K(Typ.) (Hours)

Lamp Electrical :

Input Voltage

9.6V (Typ.)

Input Current

240mA (Typ.)

Interface Features :

Position

Physical Type

Connector

Interface Detail :

Brand

Model

Pin Pitch

Pins

Amount

Pin Assignment

JST

BHSR-02VS-1

3.5 mm

2 pins

1 pcs

BLE-2PINS-AC

Backlight Driver :

TIANMA TM104SDHG30-01 Packing Details

Package Box :	Amount	Size (L×W×H)	Weight
Package Box :	20 pcs / box	9.83±0.49 Kgs	530×350×250 mm

FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
