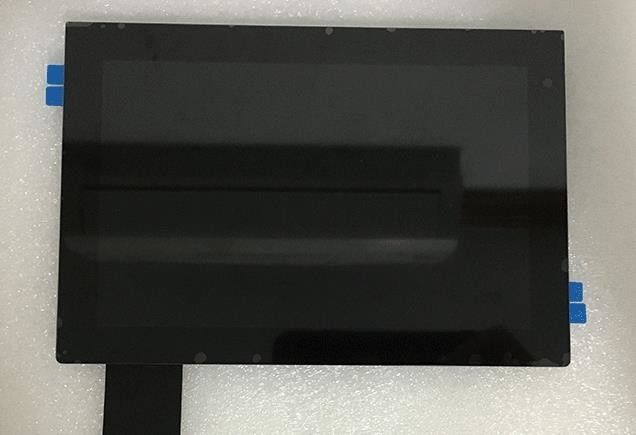

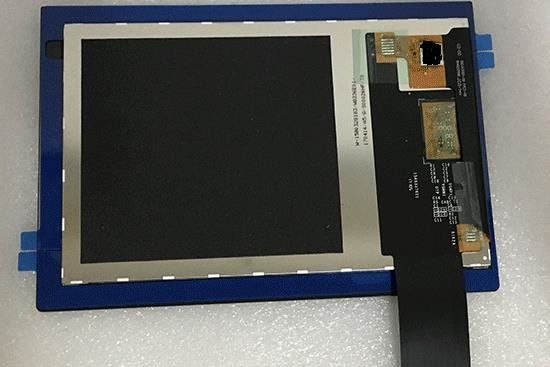

Product Details:
|
| MODEL NUMBER: | TM060JVZG02 | BRAND: | TIANMA |
|---|---|---|---|
| SIZE: | 6.0"inch | RESOLUTION: | 800(RGB)×1280 [WXGA] 251PPI |
| BRIGHTNESS: | 350 Cd/m² (Typ.) | Viewing Angle: | 85/85/85/85 (Typ.)(CR≥10) |
| TEMPERATURE RANGE: | Operating Temp.: -20 ~ 70 °C ; Storage Temp.: -30 ~ 80 °C | ||
| High Light: | WXGA 251PPI Tianma LCD Screen,350nits Tianma LCD Screen,RGB 800×1280 TFT Tianma Screen |
||
| Basic Information : | Brand |  |
Model | TM060JVZG02 |
|---|---|---|---|---|
| Type | LCM a-Si TFT-LCD | Used For |
|
|
| Screen Size | 6.0" | Alias | - | |
| Environment : | Storage Temp. | -30 ~~ 80 °C | Operating Temp. | -20 ~~ 70 °C |
| RoHS | |
Vibration | 2.0G (19.6 m/s²) | |
| Typical Features : |
|
|||
| Remarks : | White Cover PCAP: GG, 5points, Optical banding | |||
| Pixel Features : | Resolution | 800(RGB)×1280, WXGA | Dot Pitch(mm) | 0.03365×0.10095 (H×V) |
|---|---|---|---|---|
| Pixel Format | RGB Vertical Stripe | Pixel Pitch(mm) | 0.10095×0.10095 (H×V) [251PPI] | |
| Mechanical Size : | Active Area(mm) | 80.76(H) × 129.216(V) | Bezel Area(mm) | - |
| Outline Dim.(mm) | 104.16(H) × 152.62(V) | Depth(mm) | 4.65/6.5 (Typ./Max.) | |
| Outline Features : | Form Style | Flat Rectangle | Outline Shape | |
| Aspect Ratio | 10:16 (H:V) | Orientation | Portrait type | |
| Touch Panel : | Touch Points | 5 points | Touch Panel | PCAP |
| TP Controller | With touch controller | Touch Signal | I²C | |
| Other Spec : | Weight | TBD | Treatment | Antiglare (Haze 1%) |
| Panel Cover | With Strengthened Cover Glass | |||
| Basic Information : | Luminance(cd/m²) | 350 (Typ.) | Contrast Ratio | 800:1 (Typ.) (Transmissive) |
|---|---|---|---|---|
| Viewing Angle | 85/85/85/85 (Typ.)(CR≥10) |
Display Mode | SFT, Normally Black, Transmissive | |
| Best View on | Symmetry | Response(ms) | 25 (Typ.)(Tr+Td) | |
| Color Performance : | White Coordinate | X:0.308; Y:0.329 | Display Colors | 16.7M (8-bit) |
| Color Temperature | 6757K | White Uniformity | 1.25/1.33 (Typ./Max.)(9 points) |
|
| 1931 Color Gamlt : | NTSC Ratio | 68% | sRGB | 90% coverage |
| Adobe RGB | 69% coverage | DCI-P3 | 70% coverage | |
| Rec.2020 | 51% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
| Signal Electrical : | Voltage Supply | 1.8/5.0/-5.0V (Typ.)(VDDI/AVDD/AVEE) | Current Supply | - | ||
|---|---|---|---|---|---|---|
| Consumption | 151/230mW (Typ./Max.) | |||||
| Signal Type : | MIPI (4 data lanes) | Signal Voltage | - | |||
| Interface Features : | Position | - | Type | FPC | ||
| Interface Detail : | Brand | Model | Quantity | Pins | Pitch | Pin Configuration |
| 1 pcs | 45 pins | 0.5 mm | ||||
| Backlight Features: | Shape | 2 strings | Type | WLED | Position | Edge light type |
|---|---|---|---|---|---|---|
| Replacement | - | Quantity | 8S2P | Life Time | 30K(Min.) (Hours) | |
| Lamp Electrical : | Voltage Supply | 24V (Typ.) | Current Supply | 20±2mA | ||
| Consumption | 1.02/1.2W (Typ./Max.) |
|||||
| Interface Features : | Position | - | Type | Included in panel signal interface | ||
| Backlight Driver : | No | |||||
| Package Box : | Quantity | Weight | Box Size |
|---|---|---|---|
| 48 pcs / box | - | 395×290×315 mm (L×W×H) |
