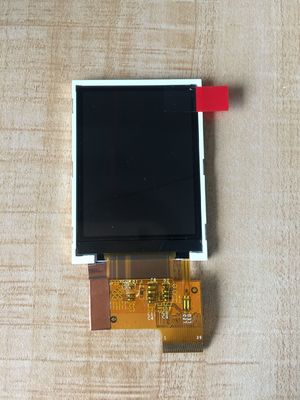

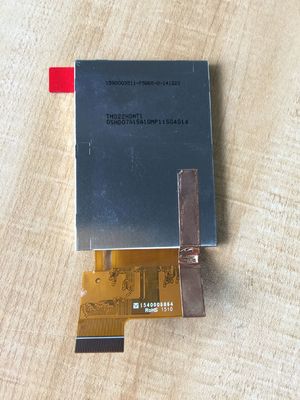

TM022HDHT1-00 TIANMA 2.2" 240(RGB)×320 90 cd/m² INDUSTRIAL LCD DISPLAY

TM022HDHT1-00 TIANMA 2.2" 240(RGB)×320 90 cd/m² INDUSTRIAL LCD DISPLAY
TM022HDHT1-00 TIANMA 2.2" 240(RGB)×320 90 cd/m² INDUSTRIAL LCD DISPLAY TM022HDHT1-00 TIANMA 2.2" 240(RGB)×320 90 cd/m² INDUSTRIAL LCD DISPLAY TM022HDHT1-00 TIANMA 2.2" 240(RGB)×320 90 cd/m² INDUSTRIAL LCD DISPLAY

Large Image :  TM022HDHT1-00 TIANMA 2.2" 240(RGB)×320 90 cd/m² INDUSTRIAL LCD DISPLAY

Product Details:
Place of Origin: JAPAN
Brand Name: TIANMA
Certification: ISO9001
Model Number: TM022HDHT1-00
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Packaging Details: STANDARD PACKING
Delivery Time: 1-2 DAYS
Payment Terms: TT/PAYPAL/ESCROW/WESTERN UNION
Supply Ability: 3000PCS
Contact Now

TM022HDHT1-00 TIANMA 2.2" 240(RGB)×320 90 cd/m² INDUSTRIAL LCD DISPLAY

Description
MODEL NUMBER: TM022HDHT1-00 BRAND: TIANMA
SIZE: 2.2 Inch RESOLUTION: 240(RGB)×320 [QVGA] 180PPI
Viewing Angle: 40/45/48/45 (Typ.)(CR≥10) BRIGHTNESS: 90 Cd/m² (Typ.)
TEMPERATURE RANGE: Operating Temp.: -20 ~ 70 °C ; Storage Temp.: -30 ~ 80 °C
High Light:

Antiglare NEC TFT Display

,

QVGA Square Tft Display

,

VGA Lcd Video Panel

TIANMA TM022HDHT1-00 Application Details

Basic Detail :
Manufacturer
TM022HDHT1-00 TIANMA 2.2" 240(RGB)×320 90 cd/m² INDUSTRIAL LCD DISPLAY 0
Model Name
TM022HDHT1-00TM022HDHT1-00 TIANMA 2.2" 240(RGB)×320 90 cd/m² INDUSTRIAL LCD DISPLAY 1 2 Compatible
Panel Type
a-Si TFT-LCD , LCM
Another Name
-
Panel Size
2.2 inch
Designed For
  • TM022HDHT1-00 TIANMA 2.2" 240(RGB)×320 90 cd/m² INDUSTRIAL LCD DISPLAY 2
  • TM022HDHT1-00 TIANMA 2.2" 240(RGB)×320 90 cd/m² INDUSTRIAL LCD DISPLAY 3
Maximum Ratings :
OP Temperature
-20 ~ 70 °C
ST Temperature
-30 ~ 80 °C
RoHS
TM022HDHT1-00 TIANMA 2.2" 240(RGB)×320 90 cd/m² INDUSTRIAL LCD DISPLAY 4
Vibration Level
-
Features :
  • Portrait type
  • Transflective
  • WLED Backlight











































TIANMA TM022HDHT1-00 Optical Details

Basic Information :
Luminance
90 cd/m² (Typ.)
Contrast Ratio
120:1 (Typ.) (Transmissive)
Good View at
12 o'clock
Response Speed
35 (Typ.)(Tr+Td) ms
Viewing Angle
40/45/48/45 (Typ.)(CR≥10)
Operating Mode
ECB, Normally White, Transflective
Color Performance :
Chromaticity
Wx:0.310; Wy:0.300
Support Color
262K (6-bit)
Color Temperature
6989K
White Variation
1.25 (Typ.)(9 points) TM022HDHT1-00 TIANMA 2.2" 240(RGB)×320 90 cd/m² INDUSTRIAL LCD DISPLAY 8
Dispaly Performance :
Outdoor Visibility
Sunlight Readable
Transmissivity
-
3D Tech
-
Reflectance
6.8% (Typ.)



















































TIANMA TM022HDHT1-00 Mechanical Details

Pixel Features :
Number of Pixel
240(RGB)×320, QVGA
Arrangement
RGB Vertical Stripe
Dot Pitch(W×H)
0.047×0.141 mm
Pixel Pitch(W×H)
0.141×0.141 mm [180PPI]
Physical Size :
Active Viewing
33.84(W)×45.12(H) mm
Overall Dim.
40.6(W)×56.6(H) mm
Bezel Opening
36.04(W)×47.32(H) mm
Overall Depth
2.7 (Typ.) mm
Outline Features :
Form Shape
Flat Rectangle
Orientation
Portrait type
Aspect Ratio(W:H)
3:4
Shape Style

Other Detail :
Mass
12.7g
Surface
Clear, Hard coating (3H)



















































TIANMA TM022HDHT1-00 Electronics Details

Refresh Rate :
60Hz
Reverse Scan :
No
Driver IC :
Built-in ILI9340

TIANMA TM022HDHT1-00 Interface Details

Signal Electrical :
Input Current
10mA (Typ.)
Input Voltage
2.8V (Typ.)(VDD)
Consumption
-
Signal Interface
Parallel RGB (1 ch, 6-bit) + SPI
Logic Voltage :
0≤VIL≤0.3VDD; 0.7VDD≤VIH≤VDD
Interface Features :
Position
-
Physical Type
FPC
Interface Detail :
Brand
Model
Pin Pitch
Pins
Amount
Pin Assignment TM022HDHT1-00 TIANMA 2.2" 240(RGB)×320 90 cd/m² INDUSTRIAL LCD DISPLAY 10


0.3 mm
39 pins
1 pcs











































TIANMA TM022HDHT1-00 Lightting Details

Lamp Features :
Lamp Type
WLED
Amount
4S1P
Position
Edge light type
Exchange
-
Lamp Shape
1 string
Lamp Life
20K(Typ.) (Hours)
Lamp Electrical :
Input Voltage
12.8V (Typ.)
Input Current
20mA (Typ.)
Consumption
256mW (Typ.) TM022HDHT1-00 TIANMA 2.2" 240(RGB)×320 90 cd/m² INDUSTRIAL LCD DISPLAY 11
Interface Features :
Position
-
Physical Type
Included in panel signal interface
Backlight Driver :
No











































TIANMA TM022HDHT1-00 Packing Details

Package Box : Amount Size (L×W×H) Weight
576 pcs / box 14.38 Kgs 544×365×250 mm



FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.



TM022HDHT1-00 TIANMA 2.2" 240(RGB)×320 90 cd/m² INDUSTRIAL LCD DISPLAY 12TM022HDHT1-00 TIANMA 2.2" 240(RGB)×320 90 cd/m² INDUSTRIAL LCD DISPLAY 13
