Product Details:
|

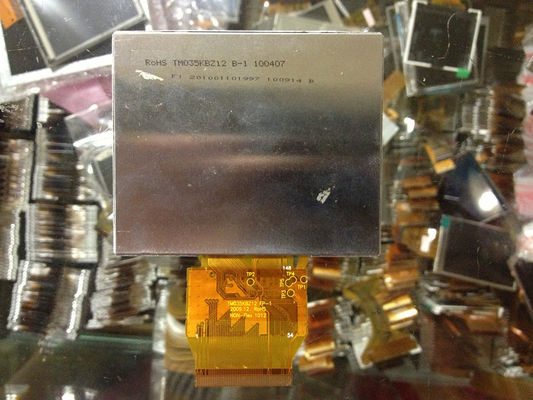

| MODEL NUMBER: | TM035KBZ12 | BRAND: | TIANMA |
|---|---|---|---|
| SIZE: | 3.5 Inch | RESOLUTION: | 320(RGB)×240 (QVGA) 115PPI |
| BRIGHTNESS: | 250 Cd/m² (Typ.) | Viewing Angle: | 60/60/50/60 (Typ.)(CR≥10 |
| SIGNAL LNTERFACE: | LVDS | Lamp Type: | WLED |
| TEMPERATURE RANGE: | Storage Temp.: -30 ~ 80 °C Operating Temp.: -20 ~ 70 °C | ||
| High Light: | Antiglare NEC TFT Display,QVGA Square Tft Display,VGA Lcd Video Panel |
||
| Basic Information : | Brand |  |
Model | TM035KBZ12 |
|---|---|---|---|---|
| Type | LCM a-Si TFT-LCD | Used For |
|
|
| Screen Size | 3.5" | Alias | - | |
| Environment : | Storage Temp. | -30 ~~ 80 °C | Operating Temp. | -20 ~~ 70 °C |
| RoHS | |
Vibration | - | |
| Typical Features : |
|
|||
| Remarks : | 3 in 1 FPC | |||
| Pixel Features : | Resolution | 320(RGB)×240, QVGA | Dot Pitch(mm) | 0.073×0.219 (H×V) |
|---|---|---|---|---|
| Pixel Format | RGB Vertical Stripe | Pixel Pitch(mm) | 0.219×0.219 (H×V) [115PPI] | |
| Mechanical Size : | Active Area(mm) | 70.08(H) × 52.56(V) | Bezel Area(mm) | 72.08(H) × 54.56(V) |
| Outline Dim.(mm) | 76.9(H) × 63.9(V) | Depth(mm) | 4.0±0.3 | |
| Outline Features : | Form Style | Flat Rectangle | Outline Shape | |
| Aspect Ratio | 4:3 (H:V) | Orientation | Landscape type | |
| Touch Panel : | Touch Points | - | Touch Panel | 4-wire Resistive Touch, F/G |
| Other Spec : | Weight | TBD | Treatment | - |
| Basic Information : | Luminance(cd/m²) | 250 (Typ.) | Contrast Ratio | 350:1 (Typ.) (Transmissive) |
|---|---|---|---|---|
| Viewing Angle | 60/60/50/60 (Typ.)(CR≥10) |
Display Mode | TN, Normally White, Transmissive | |
| Best View on | 12 o'clock | Response(ms) | 25/25 (Typ.)(Tr/Td) | |
| Color Performance : | White Coordinate | X:0.310; Y:0.330 | Display Colors | 16.7M (8-bit) |
| Color Temperature | 6638K | White Uniformity | 1.25 (Max.)(9 points) |
|
| 1931 Color Gamlt : | NTSC Ratio | 51% | sRGB | 69% coverage |
| Adobe RGB | 53% coverage | DCI-P3 | 53% coverage | |
| Rec.2020 | 38% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020 |
| Frame Rate : | 60Hz Reverse Scan :
| No |
|---|---|---|
| Driver IC : | Built-in NT39016D | |
| Time Controller (T-CON) : | Embedded T-CON |
| Signal Electrical : | Voltage Supply | 3.3V (Typ.) | Current Supply | 11mA (Typ.) | ||
|---|---|---|---|---|---|---|
| Signal Type : | Digital RGB (8/24-bit) + SPI, CCIR601/656 | Signal Voltage | 0≤VIL≤0.2VDD; 0.8VDD≤VIH≤VDD | |||
| Interface Features : | Position | - | Type | FPC | ||
| Interface Detail : | Brand | Model | Quantity | Pins | Pitch | Pin Configuration |
| 1 pcs | 54 pins | 0.5 mm | ||||
| Backlight Features: | Shape | 1 string | Type | WLED | Position | Edge light type |
|---|---|---|---|---|---|---|
| Replacement | - | Quantity | 6S1P | Life Time | - | |
| Lamp Electrical : | Voltage Supply | 19.2±1.2V | Current Supply | 20mA (Typ.) | ||
| Interface Features : | Position | - | Type | Included in panel signal interface | ||
| Backlight Driver : | No | |||||
