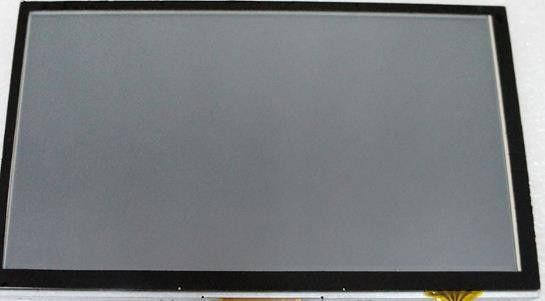

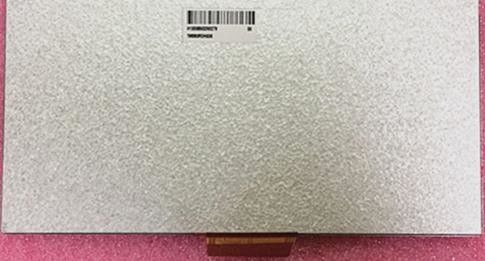

Product Details:
|
| MODEL NUMBER: | TM080RBHG30 | BRAND: | TIANMA |
|---|---|---|---|
| SIZE: | 8.0INCH | RESOLUTION: | 800(RGB)×480 [WVGA] 116PPI |
| BRIGHTNESS: | 375 Cd/m² (Typ.) | Lamp Type: | WLED |
| SIGNAL LNTERFACE: | LVDS | Viewing Angle: | 70/70/60/70 (Typ.)(CR≥10) |
| TEMPERATURE RANGE: | Operating Temperature: -20 ~ 70 °C ; Storage Temperature: -30 ~ 80 °C | ||
| High Light: | Antiglare NEC TFT Display,QVGA Square Tft Display,VGA Lcd Video Panel |
||
| Package Box : | Amount | Weight | Size (L×W×H) |
|---|---|---|---|
| 22 pcs / box | - | 544×365×250 mm (L×W×H) |
| Signal Electrical : | Input Voltage | Input Current | Power Consumption | |||
|---|---|---|---|---|---|---|
| 3.3/10.4/20/-7.0V (Typ.)(VCC/AVDD/VGH/VGL) | 10/30/0.3/0.3mA (Max.)(ICC/AIDD/IGH/IGL) | - | ||||
| Voltage for Display Signals : | 0≤VIL≤0.3VCC; 0.7VCC≤VIH≤VCC | |||||
| Interface Features : | Signal Type | Physical Type | Interface Position | |||
| Parallel RGB (1 ch, 6/8-bit) | FPC | - | ||||

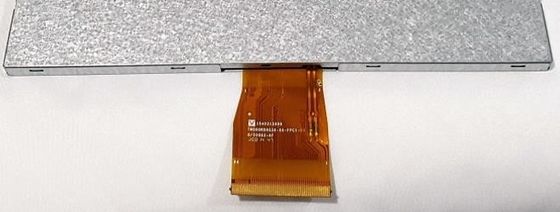

| Interface Detail : | Brand Name | Model Name | Amount | Pins | Pin Pitch | Pin Configuration  |
| 1 pcs | 64 pins | 0.5 mm | ||||
| Back-light Features: | Type | Position | Life(Hours) | Amount |
Shape | Replacement |
|---|---|---|---|---|---|---|
| WLED | Edge light type | 20K(Min.) | 3S12P | Array | - | |
| WLED Electrical : | Input Voltage | Input Current | Power Consumption |
|||
| 9.6/10.8V (Typ./Max.) | 240/360mA (Typ./Max.) | 2.3W (Typ.) | ||||
| Interface Features : | WLED Driver State | Physical Type | Interface Position | |||
| No | Included in panel signal interface | |||||
| Refresh Rate : | 60Hz Reverse Scan :
| Yes (U/D, L/R) |
|---|---|---|
| Driver IC List: | COG Built-in NT39419B + NT52001C |
| Basic Information : | Luminance | Work Mode | Contrast Ratio |
|---|---|---|---|
| 375 cd/m² (Typ.) | SFT, Normally Black, Transmissive | 500:1 (Typ.) (Transmissive) | |
| Good View at | Viewing Angle | Response Time | |
| - | 70/70/60/70 (Typ.)(CR≥10) |
25 (Typ.)(Tr+Td) (ms) | |
| Dispaly Color : | Color Temperature: | Support Color | Color Coordinate |
| 6774K | 262K/16.7M (6-bit / 8-bit) | X:0.309; Y:0.322 | |
| 1931 Color Gamlt : | NTSC Ratio | sRGB Coverage | Adobe RGB Coverage |
| 66% | 87% | 67% | |
| DCI-P3 Coverage | Rec.2020 Coverage | Remarks | |
| 68% | 49% | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) | |
| White Uniformity : | 1.33/1.43 (Typ./Max.)(9 points) |
||
| Screen Size : | 8.0" | |||
|---|---|---|---|---|
| Pixel Features : | Pixel Number | Pixel Format | Dot Pitch (H×V) | Pixel Pitch (H×V) |
| 800(RGB)×480, WVGA | RGB Vertical Stripe | 0.0736×0.2070 mm | 0.2208×0.2070 mm [116PPI] | |
| Mechanical Size : | Display Area (H×V) | Bezel Opening (H×V) | Overall Dimension (H×V) | Overall Depth |
| 176.64×99.36 mm | - | 192.8×116.9 mm | 8.8 (Typ.) mm | |
| Outline Features : | Form Shape | Aspect Ratio (H:V) | Orientation | Shape Style |
| Flat Rectangle | 16:9 | Landscape type | ||
| Touch Panel : | Touch Points | Signal Type | Controller | Technology |
| 1 point | - | Without touch controller | 4-wire Resistive Touch | |
| Other Spec : | Mass | Panel Cover | Surface Treatment | |
| 280g (Typ.) | - | Antiglare, Hard coating (3H) | ||
| Basic Information : | Brand Name | Model Name | Type | Model Alias |
|---|---|---|---|---|
|
TM080RBHG30 | a-Si TFT-LCD , LCM | - | |
| Maximum Ratings : | RoHS | Operating Temperature | Storage Temperature | Vibration Level |
|
-20 ~ 70 °C | -30 ~ 80 °C | - | |
| Application : |
|
|||
| Typical Features : |
|
|||
