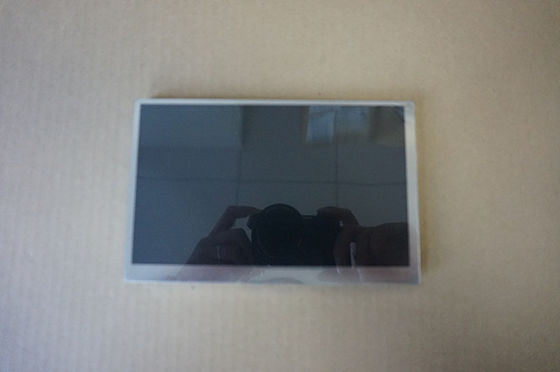

Product Details:
|
| MODEL NUMBER: | TX20D19VM2BPA | BRAND: | HITACHI |
|---|---|---|---|
| SIZE: | 7.0INCH | RESOLUTION: | 800(RGB)×480 [WVGA] 133PPI |
| BRIGHTNESS: | 320 Cd/m² (Typ.) | TEMPERATURE RANGE: | Operating Temp.: -20 ~ 70 °C ; Storage Temp.: -30 ~ 80 °C |
| High Light: | TFT LCD Panel LVDS,LVDS TFT LCD Module,VGA Touch Lcd Video Display |
||
| Basic Information : | Brand | Model | Type | Model Alias |
|---|---|---|---|---|
 |
TX20D19VM2BPA | a-Si TFT-LCD , LCM | - | |
| Reliability : | RoHS | Operating Temperature | Storage Temperature | Vibration Resistance |
|
-20 ~ 70 °C | -30 ~ 80 °C | 2.0G (19.6 m/s²) | |
| Designed For : |
|
|||
| Specific Features : |
|
|||
| Panel Size : | 8.0 inch | |||
|---|---|---|---|---|
| Pixel Features : | Resolution | Pixel Arrangement | Dot Pitch (W×H) | Pixel Pitch (W×H) |
| 800(RGB)×480, WVGA | RGB Vertical Stripe | 0.0725×0.2175 mm | 0.2175×0.2175 mm [116PPI] | |
| Mechanical Size : | Active Area (W×H) | Bezel Area (W×H) | Outline Dimension (W×H) | Outline Depth |
| 174×104.4 mm | 178.0×108.4 mm | 189×120 mm | 9.0 (Typ.) mm | |
| Outline Features : | Form Style | Aspect Ratio | Orientation | Shape Style |
| Flat Rectangle | 15:9 (W : H) | Landscape type | ||
| Touchscreen : | Touch Points | TP Controller | Signal Type | Touch Tech |
| - | - | - | 4-wire Resistive Touch | |
| Other Features : | Panel Cover | Weight | Surface | |
| - | 240g (Typ.) | Antiglare | ||
| Basic Information : | Brightness | Operating Mode | Contrast Ratio |
|---|---|---|---|
| 320 cd/m² (Typ.) | TN, Normally White, Transmissive | 200:1 (Typ.) (Transmissive) | |
| Viewing Angle(L/R/U/D) | Viewing Direction | Response Speed | |
| 60/60/55/70 (Typ.)(CR≥10) | 12 o'clock | 20/10 (Typ.)(Tr/Td) (ms) | |
| Dispaly Color : | Color Temperature | Color Amount | White color Chromaticity |
| 5208K | 262K (6-bit) | X:0.340; Y:0.360 | |
| 1931 Color Gamlt : | NTSC Ratio | sRGB Coverage | Adobe RGB Coverage |
| 61% | 78% | 61% | |
| DCI-P3 Coverage | Rec.2020 Coverage | Remarks | |
| 64% | 46% | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) | |
| Luminance Variation : | 1.43 (Max.)(9 points) |
||
| Frame Rate : | 60Hz Reverse Scan :
| No |
|---|---|---|
| Time Controller (T-CON) : | Embedded T-CON |
| Signal Electrical : | Current Input | Voltage Input | Consumption | |||
|---|---|---|---|---|---|---|
| 300/400mA (Typ./Max.)(IDD) | 3.3V (Typ.)(VDD) | 990mW (Typ.) | ||||
| Voltage for Display Signals : | VSS≤VIL≤0.8V; 2.0V≤VIH≤VDD | |||||
| Interface Features : | Position | Type | Interface | |||
| - | Connector | CMOS (1 ch, 6-bit) | ||||
| Signal Interface : | Brand | Model | Amount | Pin Pitch | Pins | Pin Assignment |
| JAE | FA5B040HP1 | 1 pcs | 0.5 mm | 40 pins | DRGB-40P1C6B-440A | |
| Backlight Features: | Type | Position | Shape | Amount |
Life(Hours) | Replacement |
|---|---|---|---|---|---|---|
| WLED | Edge light type | Array | 3S15P | 40K(Typ.) | - | |
| WLED Electrical : | Current Input | Voltage Input | Consumption |
|||
| 180/185mA (Typ./Max.) | 12.0±0.5V | 2.16W (Typ.) | ||||
| Interface Features : | Position | Type | WLED Driver | |||
| - | Connector | No | ||||
| Interface Detail | Brand | Model | Amount | Pin Pitch | Pins | Pin Assignment |
| JST | BHR-03VS-1 | 1 pcs | 4.0 mm | 3 pins | BLE-3PINS-ANC | |
