SP14N001-Z1 HITACHI 5.1" inch 240×128 150 cd/m² Storage Temp.: -20 ~ 70 °C INDUSTRIAL LCD DISPLAY

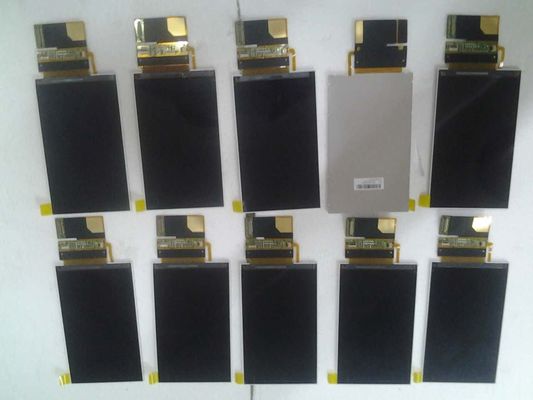

Large Image : SP14N001-Z1 HITACHI 5.1" inch 240×128 150 cd/m² Storage Temp.: -20 ~ 70 °C INDUSTRIAL LCD DISPLAY

Product Details:

Place of Origin:	JAPAN
Brand Name:	HITACHI
Certification:	ISO9001
Model Number:	SP14N001-Z1

Payment & Shipping Terms:

Minimum Order Quantity:	1PCS
Packaging Details:	STANDARD PACKING
Delivery Time:	1-2 DAYS
Payment Terms:	TT/PAYPAL/ESCROW/WESTERN UNION
Supply Ability:	400PCS

Contact Now

SP14N001-Z1 HITACHI 5.1" inch 240×128 150 cd/m² Storage Temp.: -20 ~ 70 °C INDUSTRIAL LCD DISPLAY

Description

MODEL NUMBER:	SP14N001-Z1	BRAND:	HITACHI
SIZE:	5.1INCH	RESOLUTION:	240×128 50PPI
BRIGHTNESS:	150 Cd/m²	TEMPERATURE RANGE:	Operating Temp.: -10 ~ 60 °C ; Storage Temp.: -20 ~ 70 °C
Lamp Type:	WLED	SIGNAL LNTERFACE:	LVDS
High Light:	VGA 76PPI TFT LCD Panel , 45% NTSC TFT LCD Panel

HITACHI SP14N001-Z1 Application Details

Basic Info :

Panel Brand

Panel Model

SP14N001-Z1

Diagonal Size

5.1"

Application

Panel Type

FSTN-LCD , LCM

Model Alias

Reliability :

Operating Temp.

-10 ~ 60 °C

Storage Temp.

-20 ~ 70 °C

RoHS State

Vibration Rating

1.2G (11.76 m/s²)

Specific Features :

HITACHI SP14N001-Z1 Mechanical Details

Pixel Features :

Pixel Format

240×128

Dot Pitch

0.50×0.50 mm (H×V)

Configuration

Rectangle

Pixel Pitch

0.50×0.50 mm (H×V) [50PPI]

Mechanical Size :

Display Area

119.98×63.98 mm (H×V)

Outline Dim.

124.0×70.0 mm (H×V)

Outline Dim.

159.4×101 mm (H×V)

Outline Depth

11.0 (Max.) mm

Outline Features :

Form Factor

Flat Rectangle

Orientation

Landscape type

Aspect Ratio

17:9 (H:V)

Shape Style

Holes & Brackets :

Face mounting holes (2-Φ3.0, 2-R1.5)

Other Features :

Weight

Surface

Antiglare

HITACHI SP14N001-Z1 Optical Details

Basic Information :

Brightness

150 cd/m² (Typ.)

Contrast Ratio

20:1 (Typ.) (Transmissive)

Viewing Angle

40 (Typ.)(CR≥2, Φ2-Φ1)

Optical Mode

STN, Black/White (Negative), Transmissive

Viewing Direction

6 o'clock

Response Time

120/150 (Typ.)(Tr/Td) ms

Color Performance :

Chromaticity

Color Numbers

Monochrome

Color Temperature

Uniformity

1.30 (Max.)(9 points)

HITACHI SP14N001-Z1 Electronics Details

Reverse Scan :

D-IC Detail :

Built-in T6963C

Driving Method :

Duty: 1/128

HITACHI SP14N001-Z1 Backlight Details

Back-light Features :

Lamp Type

CCFL

Amount

1 pcs

Life Time

Replacement

Lamp Shape

Position

Edge light type

Lamp Electrical :

Voltage Input

300V (Typ.)

Current Input

5.0±1mA

Frequency

70/85KHz (Typ./Max.)

Kick-off Voltage

1000V (Min.)(Ta=+25℃)

Interface Features :

Type

Connector

Position

Lamp Driver

Interface Detail :

Brand

Model

Pin Pitch

Pins

Amount

Configuration

JAE

IL-G-4S-S3C2-SA

2.5 mm

4 pins

1 pcs

BLL-4PINS-LNNH

HITACHI SP14N001-Z1 Interface Details

Signal Systerm :

8-bit parallel

Logic Voltage

Signal Electrical :

Voltage Input

5.0V (Typ.)

Current Input

11.7mA (Typ.)

Interface Features :

Type

Connector

Position

Connector Detail :

Brand

Model

Pin Pitch

Pins

Amount

Configuration

1.0 mm

26 pins

1 pcs

SP14N001-Z1 supports display 240×128 with aspect ratio of 17:9 (W:H), whose pixels are arranged in Rectangle. As for mechanical detail, it features active area of 119.98(W)×63.98(H) mm, outline size of 159.4(W)×101(H)×11(D) mm, viewing area size of 124.0(W)×70.0(H) mm, with surface treament of Antiglare. As a STN, Black/White (Negative), Transmissive LCM product, SP14N001-Z1 can provides 150 cd/m² display brightness 20:1 transimissive contrast ratio, 40 (Typ.)(CR≥2, Φ2-Φ1) (L/R/U/D) viewing angle, best view direction on 6 o'clock , and response time of 120/150 (Typ.)(Tr/Td) ms., thus presenting a palette of Monochrome colors. This product adopted 1 pcs CCFL as it's backlight systerm which was placed as Edge light type, external backlight driver is additionally needed. SP14N001-Z1 utilizes 8-bit parallel as it's signal inputting systerm, which connected by 26 pins Connector with power supply voltage of 5.0V (Typ.).
