Product Details:
|
| Brand: | AUO | Diagonal Size: | 32.0" |
|---|---|---|---|
| Resolution: | 1920(RGB)×1080, FHD 69PPI | Luminance: | 500 Cd/m² |
| Viewing Angle: | 89/89/89/89 (Typ.)(CR≥10) | Environment: | Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C |

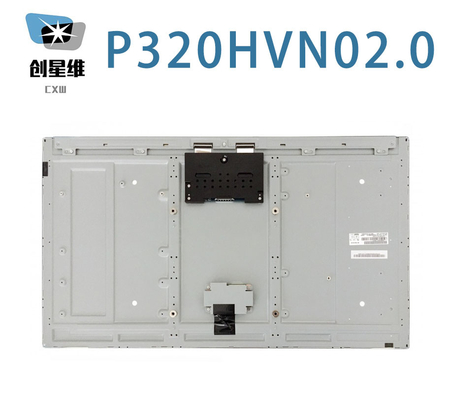

| Basic Information : | Brand | Model | P320HVN02.0 | |
|---|---|---|---|---|
| Type | LCM a-Si TFT-LCD | Used For | ||
| Screen Size | 32.0" | Alias | - | |
| Environment : | Storage Temp. | -20 ~~ 60 °C | Operating Temp. | 0 ~~ 50 °C |
| RoHS | Vibration | 1.0G (9.8 m/s²) |
| Pixel Features : | Resolution | 1920(RGB)×1080, FHD | Dot Pitch(mm) | 0.12125×0.36375 (H×V) |
|---|---|---|---|---|
| Pixel Format | RGB Vertical Stripe | Pixel Pitch(mm) | 0.36375×0.36375 (H×V) [69PPI] | |
| Mechanical Size : | Active Area(mm) | 698.4(H) × 392.85(V) | Bezel Area(mm) | 703.4(H) × 397.9(V) |
| Outline Dim.(mm) | 719.2(H) × 413.7(V) | Depth(mm) | 16.8/26.3 (Typ./Max.) | |
| Outline Features : | Form Style | Flat Rectangle | Outline Shape | |
| Aspect Ratio | 16:9 (H:V) | Orientation | Landscape / Portrait | |
| Other Spec : | Weight | 4.59Kgs (Typ.) | Treatment | Antiglare (Haze 2%), Hard coating (3H) |
| Basic Information : | Luminance(cd/m²) | 500 (Typ.) | Contrast Ratio | 4000:1 (Typ.) (Transmissive) |
|---|---|---|---|---|
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) | Display Mode | AMVA3, Normally Black, Transmissive | |
| Best View on | Symmetry | Response(ms) | 8 (Typ.)(G to G) | |
| Color Performance : | White Coordinate | X:0.280; Y:0.290 | Display Colors | 16.7M (8-bit) |
| Color Temperature | 9969K | White Uniformity | 1.33 (Max.)(9 points) | |
| 1931 Color Gamut : | NTSC Ratio | 76% | sRGB | 99% coverage |
| Adobe RGB | 78% coverage | DCI-P3 | 79% coverage | |
| Rec.2020 | 57% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
| Signal Electrical : | Voltage Supply | 12.0V (Typ.) | Current Supply | 0.39/0.56A (Typ./Max.) | ||
|---|---|---|---|---|---|---|
| Consumption | 4.68/7.38W (Typ./Max.) | |||||
| Signal Type : | LVDS (2 ch, 8-bit) | Signal Voltage | - | |||
| Interface Features : | Position | - | Type | Connector | ||
| Interface Detail : | Brand | Model | Quantity | Pins | Pitch | Pin Configuration |
| JAE | FI-RE51SZ-HF | 1 pcs | 51 pins | 0.5 mm | ||
| Backlight Features: | Shape | - | Type | WLED | Position | Edge light type |
|---|---|---|---|---|---|---|
| Replacement | - | Quantity | - | Life Time | 50K(Min.) (Hours) | |
| Interface Features : | Position | - | Type | Connector | ||
| Interface Detail : | Brand | Model | Quantity | Pins | Pitch | Pin Configuration |
| CviLux | CI0114M1HRL-NH | 1 pcs | 14 pins | 2.0 mm | ||
| Backlight Driver : | With LED Driver | |||||
| Driver Electrical : | Voltage Supply | 24.0±1.2V | Current Supply | 1.50/1.59A (Typ./Max.) | ||
| Consumption | 36/38.2W (Typ./Max.) | |||||
whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 698.4(W)×392.85(H) mm, outline size of 719.2(W)×413.7(H)×26.3(D) mm, viewing area size of 703.4(W)×397.9(H) mm, with surface treament of Antiglare (Haze 2%), Hard coating (3H), net weight of 4.59Kgs (Typ.). As a AMVA3, Normally Black, Transmissive LCM product, P320HVN02.0 can provides 500 cd/m² display brightness 4000:1 transimissive contrast ratio, 89/89/89/89 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 8 (Typ.)(G to G) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 99% (sRGB). This product adopted WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 50K hours, With LED Driver. P320HVN02.0 utilizes LVDS (2 ch, 8-bit) as it's signal inputting systerm, which connected by 51 pins Connector with power supply voltage of 12.0V (Typ.)
