Product Details:
|
| Size: | 15.6 Inch | Resolution: | 1920*1080 |
|---|---|---|---|
| Luminance: | 500 Cd/m² (Typ.) | Viewing Angle: | 89/89/89/89 (Typ.)(CR≥10) |
| Good View At: | Symmetry | Color Depth: | 6.2M 98% SRGB |
| Signal Type: | EDP (2 Lanes) , 30 Pins Connector | Work Mode: | AHVA, Normally Black, Transmissive |
| Backlight: | WLED , 50K Hours , With LED Driver | Max. Ratings: | Storage Temp.: -20 ~ 70 °C Operating Temp.: -20 ~ 70 °C |
| Highlight: | G156HAN02.0,30 pins Medical LCD Display,15.6 Inch Medical LCD Display |
||

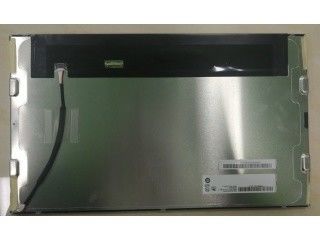

15.6 Inch sRGB Medical Imaging LCD Panel G156HAN02.0 With LED Driver
1. Main Information:
AU Optronics Corp.G156HAN02.0 (Product Code: AUO30ED) is a 15.6 inch diagonal a-Si TFT-LCD display panel product, with an integral WLED backlight system, With LED Driver , without touch screen.
It features an operating temperature range of -20 ~ 70°C , a storage temperature range of -20 ~ 70°C , and the maximal vibration level of 1.5G (14.7 m/s²).
It's general features are following: sRGB, WLED Backlight, Life ≥ 50K hours, With LED Driver, Reverse I/F, Matte .
Based on its features,this model be applied to Industrial, Medical Imaging etc.
2. AUO G156HAN02.0 Mechanical Details:
| Pixel Features : | Pixel Format | 1920(RGB)×1080 [FHD] | Dot Pitch | 0.05975×0.17925 mm (H×V) |
|---|---|---|---|---|
| Configuration | RGB Vertical Stripe | Pixel Pitch | 0.17925×0.17925 mm (H×V) [141PPI] | |
| Mechanical Size : | Display Area | 344.16×193.59 mm (H×V) | Bezel Area | 347.06×196.49 mm (H×V) |
| Outline Dim. | 363.8×215.9 mm (H×V) | Outline Depth | 8.8±0.5 mm | |
| Outline Features : | Form Factor | Flat Rectangle | Orientation | Landscape type |
| Aspect Ratio | 16:9 (H:V) | Shape Style | - | |
| Holes & Brackets : | Side mounting holes (4-M3) on left, right bezel | |||
| Other Features : | Weight | 600/660g (Typ./Max.) | Surface |
Antiglare, Hard coating (3H) |
3. AUO G156HAN02.0 Optical Details:
| Basic Information : | Brightness | 500 cd/m² (Typ.) | Contrast Ratio | 1000:1 (Typ.) (Transmissive) |
|---|---|---|---|---|
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) | Optical Mode | AHVA, Normally Black, Transmissive | |
| Viewing Direction | Symmetry | Response Time | 25 (Typ.)(Tr+Td) (ms) | |
| Color Performance | Chromaticity | Wx:0.313; Wy:0.329 | Color Numbers | 16.2M (6-bit + FRC) |
| Color Temperature | 6485K | White Uniformity | 1.25/1.33 (Typ./Max.)(9 points) | |
| 1931 Color Gamlt : | NTSC Ratio | 75% | sRGB | 98% coverage |
| Adobe RGB | 77% coverage | DCI-P3 | 78% coverage | |
| Rec.2020 | 56% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
4. AUO G156HAN02.0 Interface Details:
| Signal Systerm | eDP (2 Lanes) | Logic Voltage | - | |||
|---|---|---|---|---|---|---|
| Signal Electrical : | Voltage Input | 3.3V (Typ.) | Current Input | 240/290mA (Typ./Max.) | ||
| Consumption | 0.79/0.98W (Typ./Max.) | |||||
| Interface Features : | Type | Connector | Position | |||
| Connector Detail : | Brand | Model | Pin Pitch | Pins | Amount | Configuration |
| I-PEX | 20455-030E-76B | 0.5 mm | 30 pins | 1 pcs | EDP-30P2L-020A | |
5. FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
