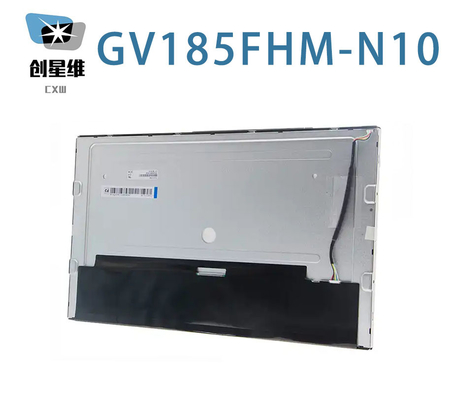

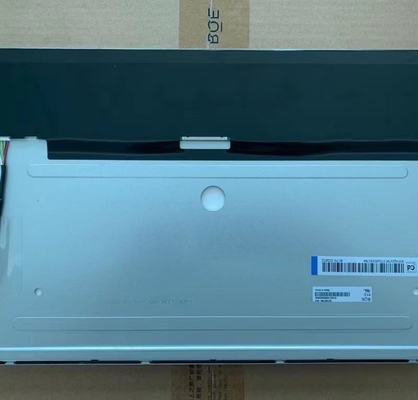

Product Details:
|

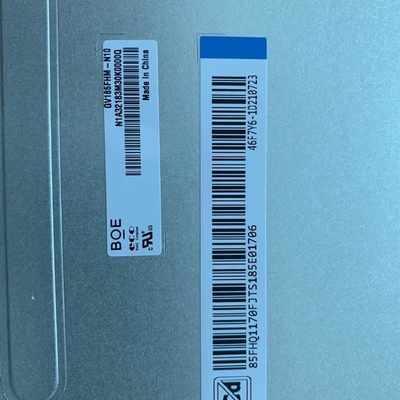

| Brand: | BOE | Diagonal Size: | 18.5" |
|---|---|---|---|
| Resolution: | 1920(RGB)×1080, FHD 119PPI | Luminance: | 85/85/85/85 (Typ.)(CR≥10) |
| Environment: | Operating Temperature: -20 ~ 70 °C ; Storage Temperature: -30 ~ 80 °C |
| Basic Information : | Brand | Model | Type | Model Alias |
|---|---|---|---|---|
| GV185FHM-N10 | a-Si TFT-LCD , LCM | - | ||
| Reliability : | RoHS | Operating Temperature | Storage Temperature | Vibration Resistance |
| -20 ~ 70 °C | -30 ~ 80 °C |
| Panel Size : | 18.5 inch | |||
|---|---|---|---|---|
| Pixel Features : | Resolution | Pixel Arrangement | Dot Pitch (W×H) | Pixel Pitch (W×H) |
| 1920(RGB)×1080, FHD | RGB Vertical Stripe | 0.071×0.213 mm | 0.213×0.213 mm [119PPI] | |
| Mechanical Size : | Active Area (W×H) | Bezel Area (W×H) | Outline Dimension (W×H) | Outline Depth |
| 408.96×230.04 mm | 410.96×232.04 mm | 430.4×254.6 mm | 12.5 (Max.) mm | |
| Outline Features : | Form Style | Aspect Ratio | Orientation | Shape Style |
| Flat Rectangle | 16:9 (W : H) | Landscape type | ||
| Fixation : | Side mounting holes (4-M3) on left, right bezel | |||
| Other Features : | Panel Cover | Weight | Surface | |
| - | 1.80Kgs (Typ.) | Antiglare (Haze 25%), Hard coating (3H) | ||
| Basic Information : | Brightness | Operating Mode | Contrast Ratio |
|---|---|---|---|
| 350 cd/m² (Typ.) | ADS, Normally Black, Transmissive | 1000:1 (Typ.) (Transmissive) | |
| Viewing Angle(L/R/U/D) | Viewing Direction | Response Speed | |
| 85/85/85/85 (Typ.)(CR≥10) | Symmetry | 30 (Typ.)(Tr+Td) (ms) | |
| Dispaly Color : | Color Temperature | Color Amount | White color Chromaticity |
| 6976K | 16.7M (8-bit) | X:0.306; Y:0.320 | |
| Luminance Variation : | 1.18/1.25 (Typ./Max.)(9 points) | ||
| Signal Electrical : | Current Input | Voltage Input | Consumption | |||
|---|---|---|---|---|---|---|
| 500mA (Typ.) | 5.0V (Typ.) | - | ||||
| Interface Features : | Position | Type | Interface | |||
| Connector | LVDS (2 ch, 8-bit) | |||||
| Signal Interface : | Brand | Model | Amount | Pin Pitch | Pins | Pin Assignment |
| UJU | IS100-L30O-C23 | 1 pcs | 1.0 mm | 30 pins | ||
| Backlight Features: | Type | Position | Shape | Amount | Life(Hours) | Replacement |
|---|---|---|---|---|---|---|
| WLED | Edge light type (Bottom side) | 4 strings | 11S4P | - | - | |
| WLED Electrical : | Current Input | Voltage Input | Consumption | |||
| 360mA (Typ.) | 33V (Typ.) | |||||
| Interface Features : | Position | Type | WLED Driver | |||
| - | Connector | With LED Driver | ||||
| Interface Detail | Brand | Model | Amount | Pin Pitch | Pins | Pin Assignment |
| CI4216S | 1 pcs | 5 pins | ||||
| Driver Electrical : | Current Input | Voltage Input | Consumption | |||
| TBD | 10.8/12.0/12.6V (Min./Typ./Max.) | TBD | ||||
whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 408.96(W)×230.04(H) mm, outline size of 430.4(W)×254.6(H)×12.5(D) mm, viewing area size of 410.96(W)×232.04(H) mm, with surface treament of Antiglare (Haze 25%), Hard coating (3H), net weight of 1.80Kgs (Typ.). As a ADS, Normally Black, Transmissive LCM product, GV185FHM-N10-DM30 can provides 350 cd/m² display brightness 1000:1 transimissive contrast ratio, 85/85/85/85 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 30 (Typ.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 70% (NTSC). This product adopted 11S4P WLED as it's backlight systerm which was placed as Edge light type (Bottom side), With LED Driver. GV185FHM-N10 utilizes LVDS (2 ch, 8-bit) as it's signal inputting systerm, which connected by 30 pins Connector with power supply voltage of 5.0V (Typ.)
