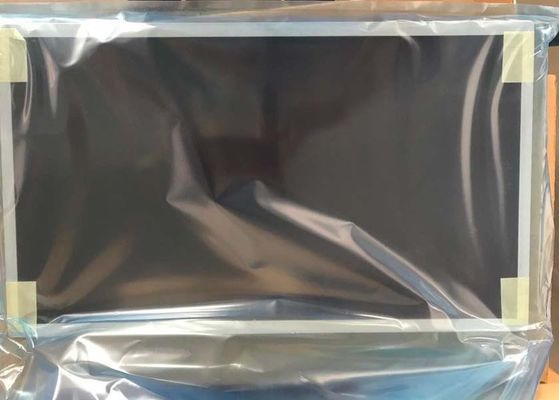

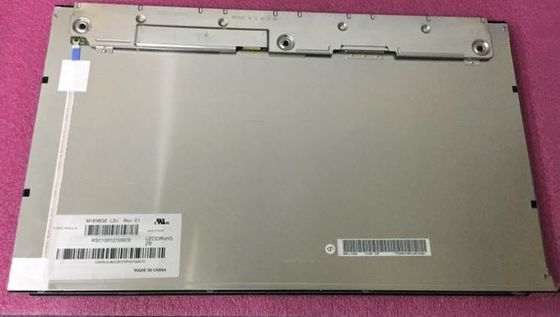

Product Details:
|
| Brand: | BOE | Diagonal Size: | 18.5" |
|---|---|---|---|
| Resolution: | 1920(RGB)×1080, FHD 119PPI | Luminance: | 350 (Typ.)(cd/m²) |
| Viewing Angle: | 85/85/85/85 (Typ.)(CR≥10) | Max. Ratings: | Storage Temp.: -30 ~ 80 °C Operating Temp.: -30 ~ 80 °C |
| Basic Information : | Brand Name | Model Name | Type | Model Alias |
|---|---|---|---|---|
| GV185FHM-N10-3M30 | a-Si TFT-LCD , LCM | - | ||
| Maximum Ratings : | RoHS | Operating Temperature | Storage Temperature | Vibration Level |
| -30 ~ 80 °C | -30 ~ 80 °C |
| Screen Size : | 18.5" | |||
|---|---|---|---|---|
| Pixel Features : | Pixel Number | Pixel Format | Dot Pitch (H×V) | Pixel Pitch (H×V) |
| 1920(RGB)×1080, FHD | RGB Vertical Stripe | 0.071×0.213 mm | 0.213×0.213 mm [119PPI] | |
| Mechanical Size : | Display Area (H×V) | Bezel Opening (H×V) | Overall Dimension (H×V) | Overall Depth |
| 408.96×230.04 mm | 410.96×232.04 mm | 430.4×254.6 mm | 12.5 (Max.) mm | |
| Outline Features : | Form Shape | Aspect Ratio (H:V) | Orientation | Shape Style |
| Flat Rectangle | 16:9 | Landscape type | ||
| Other Spec : | Mass | Panel Cover | Surface Treatment | |
| 1.80Kgs (Typ.) | - | Antiglare (Haze 25%), Hard coating (3H) | ||
| Holes & Brackets : | Side mounting holes (4-M3) on left, right bezel | |||
| Basic Information : | Luminance | Work Mode | Contrast Ratio |
|---|---|---|---|
| 350 cd/m² (Typ.) | ADS, Normally Black, Transmissive | 1200:1 (Typ.) (Transmissive) | |
| Good View at | Viewing Angle | Response Time | |
| Symmetry | 85/85/85/85 (Typ.)(CR≥10) | 30 (Typ.)(Tr+Td) (ms) | |
| Dispaly Color : | Color Temperature: | Support Color | Color Coordinate |
| 9066K | 16.7M (8-bit) | X:0.286; Y:0.296 | |
| White Uniformity : | 1.18/1.25 (Typ./Max.)(9 points | ||
| Back-light Features: | Type | Position | Life(Hours) | Amount | Shape | Replacement |
|---|---|---|---|---|---|---|
| WLED | Edge light type (Bottom side) | - | 11S4P | 4 strings | - | |
| WLED Electrical : | Input Voltage | Input Current | Power Consumption | |||
| 33V (Typ.) | 300mA (Typ.) | 10W (Typ.) | ||||
| Interface Features : | WLED Driver State | Physical Type | Interface Position | |||
| With LED Driver | Connector | - | ||||
| Interface Detail | Brand Name | Model Name | Amount | Pins | Pin Pitch | Pin Configuration |
| CI4216S | 1 pcs | 5 pins | ||||
| WLED Driver Electrical : | Input Voltage | Input Current | Power Consumption | |||
| 10.8/12.0/12.6V (Min./Typ./Max.) | 1000mA (Typ.) | 12W (Typ.) | ||||
| Signal Electrical : | Input Voltage | Input Current | Power Consumption | |||
|---|---|---|---|---|---|---|
| 5.0V (Typ.) | 500mA (Typ.) | - | ||||
| Interface Features : | Signal Type | Physical Type | Interface Position | |||
| LVDS (2 ch, 8-bit) | Connector | |||||
| Interface Detail : | Brand Name | Model Name | Amount | Pins | Pin Pitch | Pin Configuration |
| UJU | IS100-L30O-C23 | 1 pcs | 30 pins | 1.0 mm | ||
whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 408.96(W)×230.04(H) mm, outline size of 430.4(W)×254.6(H)×12.5(D) mm, viewing area size of 410.96(W)×232.04(H) mm, with surface treament of Antiglare (Haze 25%), Hard coating (3H), net weight of 1.80Kgs (Typ.). As a ADS, Normally Black, Transmissive LCM product, GV185FHM-N10-3M30 can provides 350 cd/m² display brightness 1200:1 transimissive contrast ratio, 85/85/85/85 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 30 (Typ.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 70% (NTSC). This product adopted 11S4P WLED as it's backlight systerm which was placed as Edge light type (Bottom side), With LED Driver. GV185FHM-N10-3M30 utilizes LVDS (2 ch, 8-bit) as it's signal inputting systerm, which connected by 30 pins Connector with power supply voltage of 5.0V (Typ.).
