Product Details:
|
| Brand: | BOE | Diagonal Size: | 10.4" |
|---|---|---|---|
| Resolution: | 800(RGB)×600, SVGA 96PPI | Luminance: | 350 Cd/m² |
| Viewing Angle: | 80/80/65/75 (Typ.)(CR≥10) | Environment: | Operating Temperature: -20 ~ 70 °C ; Storage Temperature: -30 ~ 80 °C |
| Basic Information : | Manufacturer | Panel Model 1 Compatible | Panel Type | Alias |
|---|---|---|---|---|

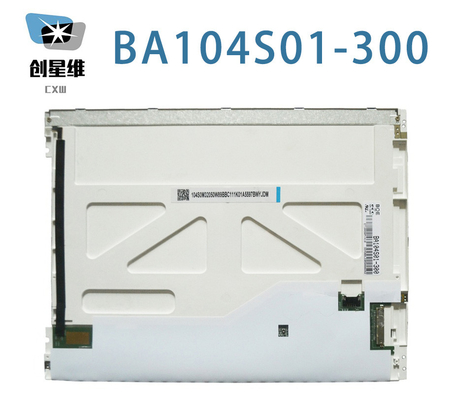

| BA104S01-300 | a-Si TFT-LCD , LCM | ET104S0M-N10 | ||
| Environment : | RoHS State | Operating Temp. | Storage Temp. | Vibration Level |
| -20 ~ 70 °C | -30 ~ 80 °C |
| Basic Information : | Luminance (cd/m²) | Viewing Angle (L/R/U/D) | Response Time (ms) |
|---|---|---|---|
| 350 (Typ.) | 80/80/65/75 (Typ.)(CR≥10) | 30 (Typ.)(Tr+Td) | |
| Best View on | Display Mode | Contrast Ratio | |
| 12 o'clock | TN, Normally White, Transmissive | 800 : 1 (Typ.) (Transmissive) | |
| Dispaly Color : | Color Temperature | Display Colors | White Coordinate |
| 8455K | 262K/16.2M (6-bit / 6-bit + FRC) | X:0.284; Y:0.320 | |
| 1931 Color Gamut : | NTSC Ratio | sRGB Coverage | Adobe RGB Coverage |
| 57% | 80% | 60% | |
| DCI-P3 Coverage | Rec.2020 Coverage | Remarks | |
| 60% | 43% | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) | |
| White Variation : | 1.25/1.43 (Typ./Max.)(9 points) | ||
| Panel Size : | 10.4" | |||
|---|---|---|---|---|
| Pixel Features : | Pixel Format | Pixel Configuration | Pixel Pitch (mm) | Dot Pitch (mm) |
| 800(RGB)×600 [SVGA] | RGB Vertical Stripe | 0.264×0.264 [96PPI] | 0.088×0.264 | |
| Mechanical Size : | Active Area (mm) | Bezel Area (mm) | Outline Dimension (mm) | Outline Depth (mm) |
| 211.2(H) × 158.4(V) | 215.0(H) × 162.0(V) | 236(H) × 176.9(V) | 5.6±0.3 mm | |
| Outline Features : | Form Factor | Orientation | Aspect Ratio | Shape Style |
| Flat Rectangle | Landscape type | 4:3 (H:V) | ||
| Mounting : | Face mounting holes (4-Φ2.5, 2-R1.25) on left, right bezel | |||
| Other Detail : | Weight | Panel Cover | Treatment | |
| 300g (Max.) | - | Antiglare (Haze 25%) | ||
| Lamp Features: | Type | Position | Quantity | Shape | Life(Hours) | Lamp Exchange |
|---|---|---|---|---|---|---|
| WLED | Edge light type (Top side) | 6S4P | Array | 30K(Min.) | - | |
| WLED Electrical : | Voltage Supply | Current Supply | Power | |||
| 19.2/19.8V (Typ./Max.) | 100mA (Typ.) | 1.92/1.98W (Typ./Max.) | ||||
| Interface Features : | Position | Backlight Driver | Type | |||
| - | With LED Driver | Connector | ||||
| Interface Detail : | Brand | Model | Pin Pitch | Pin Amount | Quantity | Configuration |
| STM | MSB24038P5 | 1.25 mm | 5 pins | 1 pcs | ||
| Driver Electrical : | Voltage Supply | Current Supply | Power Consumption | |||
| 12.0±0.5V | - | 2.42/2.84W (Typ./Max.) | ||||
| Panel Driving Electrical : | Voltage Supply | Current Supply | Power | |||
|---|---|---|---|---|---|---|
| 3.3V (Typ.) | 150/180mA (Typ./Max.) | 0.50/0.59W (Typ./Max.) | ||||
| Interface Features : | Position | Signal | Type | |||
| - | LVDS (1 ch, 6/8-bit) | Connector | ||||
| Connector Detail : | Brand | Model | Pin Pitch | Pin Amount | Quantity | Configuration |
| STM | MSB24013P20HA | 1.0 mm | 20 pins | 1 pcs | ||
whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 211.2(W)×158.4(H) mm, outline size of 236(W)×176.9(H)×5.9(D) mm, viewing area size of 215.0(W)×162.0(H) mm, with surface treament of Antiglare (Haze 25%), net weight of 300g (Max.). As a TN, Normally White, Transmissive LCM product, BA104S01-300 can provides 350 cd/m² display brightness 800:1 transimissive contrast ratio, 80/80/65/75 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on 12 o'clock , and response time of 30 (Typ.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit / 6-bit + FRC gray scale signal for each dot, thus presenting a palette of 262K/16.2M colors, also with performance of color gamut 55% (NTSC). This product adopted 6S4P WLED as it's backlight systerm which was placed as Edge light type (Top side) and have a working life time of 30K hours, With LED Driver. BA104S01-300 utilizes LVDS (1 ch, 6/8-bit) as it's signal inputting systerm, which connected by 20 pins Connector with power supply voltage of 3.3V (Typ.)
