Product Details:
|
| Size: | 19 Inch | Resolution: | 1280(RGB)×1024, SXGA 86PPI |
|---|---|---|---|
| Brightness: | 330 Cd/m² (Typ.) | Viewing Angle: | 85/85/85/85 (Typ.)(CR≥10) |
| Display Colors: | 16.7M 76% NTSC | Signal Interface: | LVDS (2 Ch, 8-bit) |
| Light Source: | WLED | View Direction: | Symmetry |
| Touch Screen: | Without | Power Supply: | 5V |
1.Main Information:

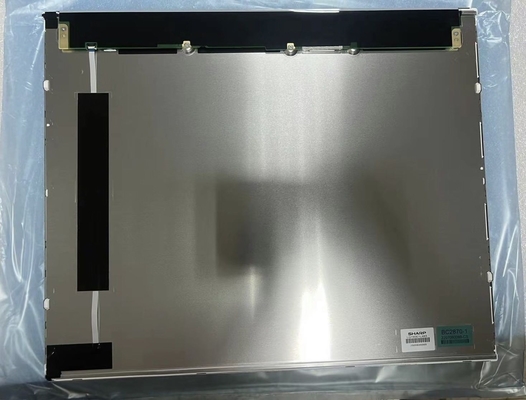

AU Optronics Corp.LQ190E1LX65 is a 19inch diagonal a-Si TFT-LCD display panel product, with an integral WLED backlight system, without backlight driver, without touch screen.
It's general features are following: WLED Backlight, Life ≥ 50K hours, 6/8 bit, Matte .
Based on its features, this model be applied to Industrial etc.
2.AUO LQ190E1LX65 Mechanical Features:
| Screen Size : | 19 Inch | |||
|---|---|---|---|---|
| Pixel Features : | Pixel Number | Pixel Format | Dot Pitch (H×V) | Pixel Pitch (H×V) |
| 1280(RGB)×1024, WSVGA | RGB Vertical Stripe | 0.0725×0.2088 mm | 0.2175×0.2088 mm [117PPI] | |
| Mechanical Size : | Display Area (H×V) | Bezel Opening (H×V) | Overall Dimension (H×V) | Overall Depth |
| 376.32×301.056mm | 396×323.6 mm | 396×323.6 mm | 5.0±0.5 mm | |
| Outline Features : | Form Shape | Aspect Ratio (H:V) | Orientation | Shape Style |
| Flat Rectangle | 16:9 | Landscape type | - | |
| Other Spec | Mass | Panel Cover | Surface Treatment | |
| 340g (Max.) | - | Antiglare, Hard coating (3H) | ||
| Holes & Brackets : | Without | |||
3.AUO LQ190E1LX65 Optical Features:
| Basic Information | Luminance | Work Mode | Contrast Ratio |
|---|---|---|---|
| 330cd/m² (Typ.) | TN, Normally White, Transmissive | 1500:1 (Typ.) (Transmissive) | |
| Good View at | Viewing Angle | Response Time | |
| - | 85/85/85/85 (Typ.)(CR≥10) | 35 (Typ.)(Tr+Td) | |
| Dispaly Color : | Color Temperature: | Support Color | Color Coordinate |
| 6485K | 16.7M 76% NTSC | X:0.313; Y:0.329 | |
| 1931 Color Gamlt : | NTSC Ratio | sRGB Coverage | Adobe RGB Coverage |
| 46% | 64% | 48% | |
| DCI-P3 Coverage | Rec.2020 Coverage | Remarks | |
| 47% | 34% | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) | |
| White Uniformity : | 1.25 (Max.)(5 points) | ||
4.AUO LQ190E1LX65 Backlight Features:
| Back-light Features: | Type | Position | Life(Hours) | Amount | Shape | Replacement |
|---|---|---|---|---|---|---|
| WLED | Edge light type | 50K(Typ.) | 8S3P | Array | - | |
| WLED Electrical : | Input Voltage | Input Current | Power Consumption | |||
| 5V(Typ./Max.) | 90mA (Typ.) | 2.3/2.85W (Typ./Max.) | ||||
| Interface Features : | WLED Driver State | Physical Type | Interface Position | |||
| No | Connector | |||||
| Interface Detail | Brand Name | Model Name | Amount | Pins | Pin Pitch | Pin Configuration |
| E&T | H201K-P02N-02B | 1 pcs | 2 pins | 1.25 mm | BLE-2PINS-AC | |
5.FAQ:
Q1:What's the quality of your LCD Panel?
A:Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2:What is your return and refund policy?
A:We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3:How long is the lead time?
A:The lead time is about 1-3 working days after receipt of payment.
Q4:How can I get the quotation?
A:Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
