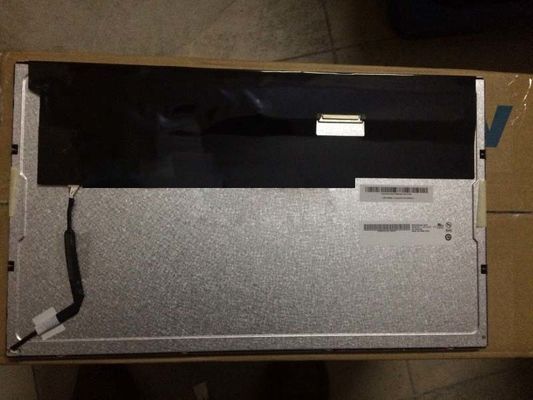

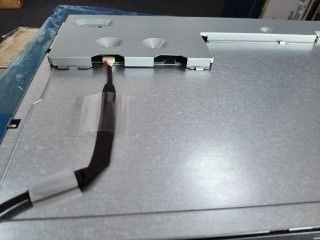

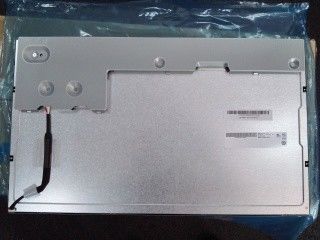

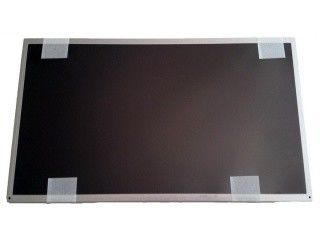

Product Details:
|
| MODEL NUMBER: | G185XW01 V201 | BRAND: | AUO |
|---|---|---|---|
| SIZE: | 18.5INCH | RESOLUTION: | 1366×768RGB |
| BRIGHTNESS: | 450CD/M2 | TEMPERATURE RANGE: | Operating Temperature: 0 ~ 60 °C ; Storage Temperature: -20 ~ 60 °C |
| High Light: | 1366×768RGB AUO TFT LCD,AUO 18.5" AUO TFT LCD,450CD/M2 TFT LCD Display |
||
| Basic Information : | Manufacturer | Panel Model | Panel Type | Alias |
|---|---|---|---|---|
| G185XW01 V201 | a-Si TFT-LCD , LCM | - | ||
| Environment : | RoHS State | Operating Temp. | Storage Temp. | Vibration Level |
| 0 ~ 60 °C | -20 ~ 60 °C | - | ||
| Used For : |
|
|||
| Basic Information : | Luminance (cd/m²) | Viewing Angle (L/R/U/D) | Response Time (ms) |
|---|---|---|---|
| 450 (Typ.) | 85/85/80/80 (Typ.)(CR≥10) | 3.5/1.5 (Typ.)(Tr/Td) | |
| Best View on | Display Mode | Contrast Ratio | |
| - | TN, Normally White, Transmissive | 1000 : 1 (Typ.) (Transmissive) | |
| Dispaly Color : | Color Temperature | Display Colors | White Coordinate |
| 6485K | 16.7M (6-bit + Hi-FRC) | X:0.313; Y:0.329 | |
| 1931 Color Gamlt : | NTSC Ratio | sRGB Coverage | Adobe RGB Coverage |
| 71% | 94% | 73% | |
| DCI-P3 Coverage | Rec.2020 Coverage | Remarks | |
| 74% | 53% | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) | |
| White Variation : | 1.43/1.54 (Typ./Max.)(9 points) | ||
| Panel Size : | 18.5" | |||
|---|---|---|---|---|
| Pixel Features : | Pixel Format | Pixel Configuration | Pixel Pitch (mm) | Dot Pitch (mm) |
| 1366(RGB)×768 [WXGA] | RGB Vertical Stripe | 0.300×0.300 [84PPI] | 0.100×0.300 | |
| Mechanical Size : | Active Area (mm) | Bezel Area (mm) | Outline Dimension (mm) | Outline Depth (mm) |
| 409.8(H) × 230.4(V) | 413.4(H) × 234.0(V) | 430.4(H) × 254.7(V) | 10.6 (Typ.) mm | |
| Outline Features : | Form Factor | Orientation | Aspect Ratio | Shape Style |
| Flat Rectangle | Landscape type | 16:9 (H:V) | ||
| Mounting : | Side mounting holes (4-M3) on left, right bezel | |||
| Other Detail : | Weight | Panel Cover | Treatment | |
| 1.44Kgs (Max.) | - | Antiglare, Hard coating (3H) | ||
| Reverse Scan : | No |
|---|---|
| Vertical Frequency : | 60Hz |
| Power Consumption : | 13.5W (Typ.) |
| Lamp Features: | Type | Position | Quantity | Shape | Life(Hours) | Lamp Exchange |
|---|---|---|---|---|---|---|
| WLED | Edge light type | - | - | 50K(Min.) | No | |
| Interface Features : | Position | Backlight Driver | Type | |||
 |
With LED Driver | Connector | ||||
| Interface Detail : | Brand | Model | Pin Pitch | Pin Amount | Quantity | Configuration |
| E&T | 3808K-F05N-06L | 1.25 mm | 5 pins | 1 pcs | ||
| Driver Electrical : | Voltage Supply | Current Supply | Power Consumption | |||
| 12.0±1.2V | 0.75/1.0A (Typ./Max.) | 9/13.2W (Typ./Max.) | ||||
| Panel Driving Electrical : | Voltage Supply | Current Supply | Power | |||
|---|---|---|---|---|---|---|
| 5.0V (Typ.) | 0.9/1.1A (Typ./Max.) | 4.5/5.5W (Typ./Max.) | ||||
| Interface Features : | Position | Signal | Type | |||
|
LVDS (1 ch, 8-bit) | Connector | ||||
| Connector Detail : | Brand | Model | Pin Pitch | Pin Amount | Quantity | Configuration |
| P-TWO | 187145-30091-3 | 1.0 mm | 30 pins | 1 pcs | LVDS-30P1C8B-170A | |
FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
