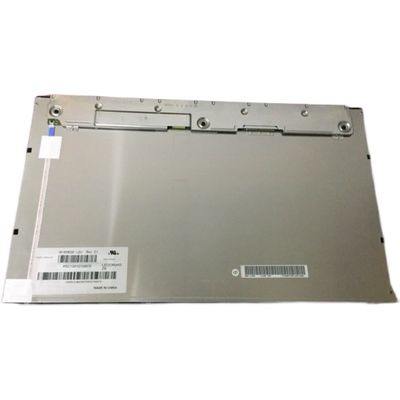

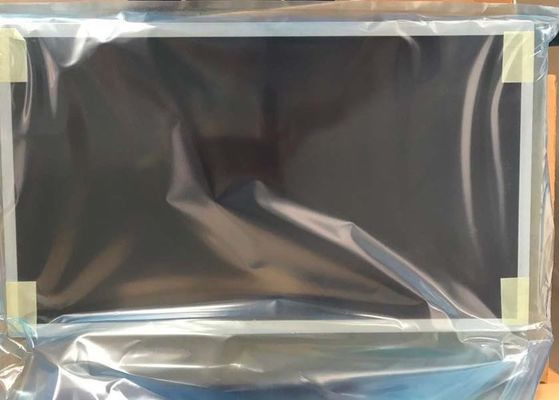

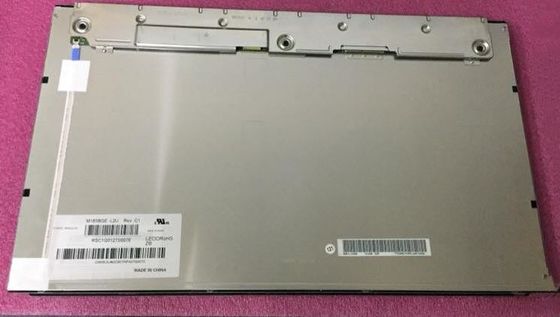

1366×768RGB 18.5 INCH 450nits WLED EDP TFT LCD Panel G185XTN01.1 AUO

1366×768RGB 18.5 INCH 450nits WLED EDP TFT LCD Panel G185XTN01.1 AUO
1366×768RGB 18.5 INCH 450nits WLED EDP TFT LCD Panel G185XTN01.1 AUO 1366×768RGB 18.5 INCH 450nits WLED EDP TFT LCD Panel G185XTN01.1 AUO 1366×768RGB 18.5 INCH 450nits WLED EDP TFT LCD Panel G185XTN01.1 AUO

Large Image :  1366×768RGB 18.5 INCH 450nits WLED EDP TFT LCD Panel G185XTN01.1 AUO

Product Details:
Place of Origin: CHINA
Brand Name: AUO
Certification: ISO9001
Model Number: G185XTN01.1
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Packaging Details: 8 pcs / box 15 Kgs 520×280×355 mm
Delivery Time: 1-2 DAYS
Payment Terms: TT/PAYPAL/WESTERN UNION/ESCROW
Supply Ability: 291PCS
Contact Now

1366×768RGB 18.5 INCH 450nits WLED EDP TFT LCD Panel G185XTN01.1 AUO

Description
MODEL NUMBER: G185XTN01.1 BRAND: AUO
SIZE: 18.5INCH RESOLUTION: 1366×768RGB
BRIGHTNESS: 450CD/M2 TEMPERATURE RANGE: Operating Temperature: 0 ~ 60 °C ; Storage Temperature: -20 ~ 60 °C
High Light:

WLED EDP TFT LCD Panel

,

450nits TFT LCD Panel

,

1366×768RGB TFT LCD Panel

AUO G185XTN01.1 Application Details

Basic Information :
Brand

Model
G185XTN01.1
Type
a-Si TFT-LCD , LCM
Used For

Screen Size
18.5 inch
Alias
-
Environment :
Storage Temp.
-20 ~ 60 °C
Operating Temp.
0 ~ 60 °C
RoHS

Vibration
1.5G (14.7 m/s²)
Typical Features :
  •
Remarks :
eDP1.2



AUO G185XTN01.1 Mechanical Details

Pixel Features :
Resolution
1366(RGB)×768, WXGA
Dot Pitch(mm)
0.100×0.300 (H×V)
Pixel Format
RGB Vertical Stripe
Pixel Pitch(mm)
0.300×0.300 (H×V) [84PPI]
Mechanical Size :
Active Area(mm)
409.8(H) × 230.4(V)
Bezel Area(mm)
413.4(H) × 234.0(V)
Outline Dim.(mm)
430.4(H) × 254.7(V)
Depth(mm)
10.6±0.5
Outline Features :
Form Style
Flat Rectangle
Shape Style

Aspect Ratio
16:9 (H:V)
Orientation
Landscape type
Mounting :
Side mounting holes (4-M3) on left, right bezel
Other Spec :
Weight
1.44Kgs (Max.)
Treatment
Antiglare, Hard coating (3H)

AUO G185XTN01.1 Optical Details

Basic Information :
Luminance(cd/m²)
450 (Typ.)
Contrast Ratio
1000:1 (Typ.) (Transmissive)
Viewing Angle
85/85/80/80 (Typ.)(CR≥10)
Display Mode
TN, Normally White, Transmissive
Best View on
-
Response(ms)
5/3 (Typ.)(Tr/Td)
Color Performance :
White Coordinate
Wx:0.313; Wy:0.329
Display Colors
16.7M (6-bit + Hi-FRC)
Color Temperature
6485K
White Uniformity
1.43/1.54 (Typ./Max.)(9 points)
1931 Color Gamut :
NTSC Ratio
71%
sRGB
94% coverage
Adobe RGB
73% coverage
DCI-P3
74% coverage
Rec.2020
53% coverage
Remarks
sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)

AUO G185XTN01.1 Interface Detail

Signal Electrical :
Voltage Supply
5.0V (Typ.)
Current Supply
0.45/0.54A (Typ./Max.)
Consumption
2.25/2.7W (Typ./Max.)
Signal Type :
eDP (1 Lane), eDP1.2
Logic Voltage
-
Interface Features :
Position

ConnectorType
Interface Detail :
Brand
Model
Pitch
Pins
Quantity
Pin Configuration
I-PEX
20455-030E-12
0.5 mm
30 pins
1 pcs
EDP-30P1L-030A

FAQ:

Q1: What's the quality of your LCD Panel?



A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.



Q2: What is your return and refund policy?



A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.



Q3: How long is the lead time?



A: The lead time is about 1-3 working days after receipt of payment.



Q4: How can I get the quotation?



A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
