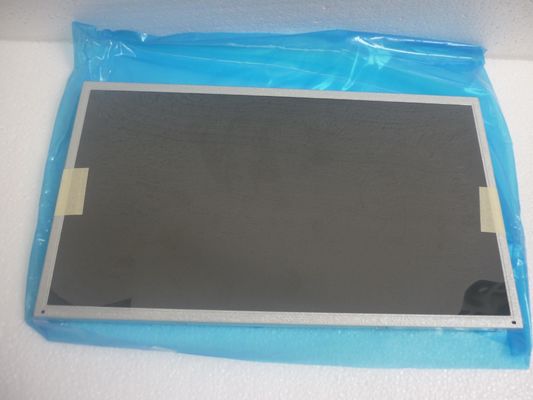

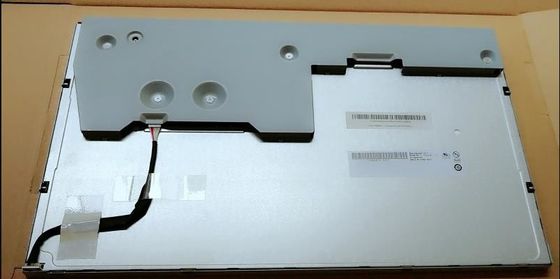

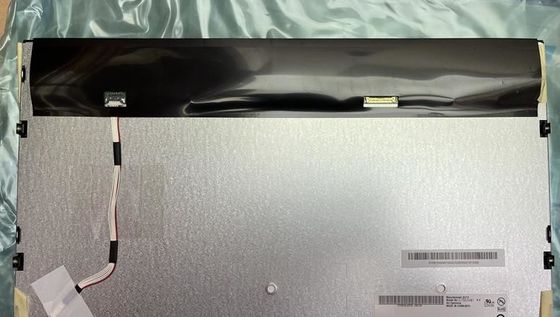

Product Details:
|
| MODEL NUMBER: | G156XW01 V4 | BRAND: | AUO |
|---|---|---|---|
| SIZE: | 15.6INCH | RESOLUTION: | 1366×768RGB |
| BRIGHTNESS: | 500CD/M2 | TEMPERATURE RANGE: | Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 60 °C |
| High Light: | 15.6" WLED EDP LCD Panel,500CD/M2 WLED EDP LCD Panel,1366×768RGB TFT LCD Panel |
||
| Basic Detail : | Manufacturer | Model Name | G156XW01 V4 | |
|---|---|---|---|---|
| Panel Type | a-Si TFT-LCD , LCM | Another Name | G156XW01 V.4 | |
| Panel Size | 15.6 inch | Designed For | ||
| Maximum Ratings : | OP Temperature | 0 ~ 60 °C | ST Temperature | -20 ~ 60 °C |
| Vibration Level | 1.5G (14.7 m/s²) | RoHS |
| Basic Information : | Luminance | 500 cd/m² (Typ.) | Contrast Ratio | 500 : 1 (Typ.) (Transmissive) |
|---|---|---|---|---|
| Good View at | - | Response Speed | 6/2 (Typ.)(Tr/Td) (ms) | |
| Viewing Angle | 85/85/80/80 (Typ.)(CR≥10) | Operating Mode | TN, Normally White, Transmissive | |
| Color Performance : | Chromaticity | Wx:0.313; Wy:0.329 | Support Color | 16.2M (6-bit + FRC) |
| Color Temperature | 6485K | White Uniformity | 1.33/1.43 (Typ./Max.)(5 points) | |
| 1931 Color Gamlt : | NTSC Ratio | 65% | sRGB | 86% coverage |
| Adobe RGB | 67% coverage | DCI-P3 | 68% coverage | |
| Rec.2020 | 49% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
| Pixel Features : | Number of Pixel | 1366(RGB)×768 [WXGA] | Arrangement | RGB Vertical Stripe |
|---|---|---|---|---|
| Dot Pitch(W×H) | 0.084×0.252 mm | Pixel Pitch(W×H) | 0.252×0.252 mm [100PPI] | |
| Physical Size : | Active Viewing | 344.232(W)×193.536(H) mm | Overall Dim. | 363.8(W)×215.9(H) mm |
| Bezel Opening | 347.54(W)×196.83(H) mm | Overall Depth | 8.6 (Typ.) mm | |
| Outline Features : | Form Shape | Flat Rectangle | Orientation | Landscape type |
| Aspect Ratio(W:H) | 16:9 | Shape Style | ||
| Fixation : | Side mounting holes (4-M3) on left, right bezel | |||
| Other Detail : | Mass | 860±40g | Surface | Antiglare, Hard coating (3H) |
| Refresh Rate : | 60Hz |
|---|---|
| Reverse Scan : | No |
| Power Consumption : | 8.15W (Typ.) |
| Signal Electrical : | Input Current | 0.43/0.52A (Typ./Max.) | Input Voltage | 5.0V (Typ.) | ||
|---|---|---|---|---|---|---|
| Consumption | 2.15/2.6W (Typ./Max.) | Signal Interface | eDP (1 Lane), eDP1.2 | |||
| Interface Features : | Position | Physical Type | Connector | |||
| Signal Interface : | Brand | Model | Amount | Pin Pitch | Pin Amount | Pin Assignment |
| I-PEX | 20455-030E-12 | 1 pcs | 0.5 mm | 30 pins | EDP-30P1L-030A | |
| Lamp Features: | Lamp Shape | - | Lamp Type | WLED | Position | Edge light type |
|---|---|---|---|---|---|---|
| Exchange | - | Amount | - | Life | 50K(Min.) (Hours) | |
| Interface Features : | Position | - | Physical Type | Included in panel signal interface | ||
| Backlight Driver : | With LED Driver | |||||
| Driver Electrical : | Input Current | 0.5/0.6A (Typ./Max.) | Input Voltage | 12±1.2V | ||
| Consumption | 6.0/7.2W (Typ./Max.) | |||||
FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
