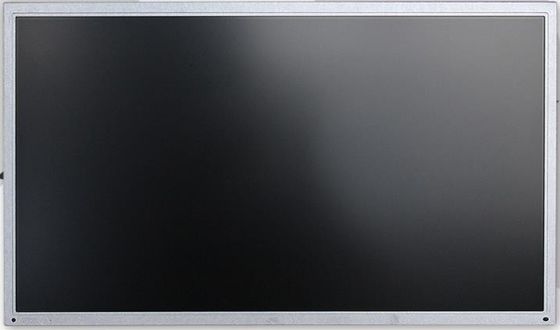

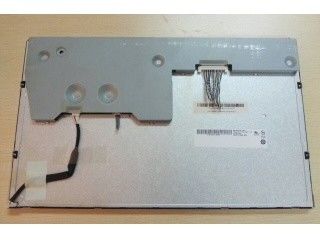

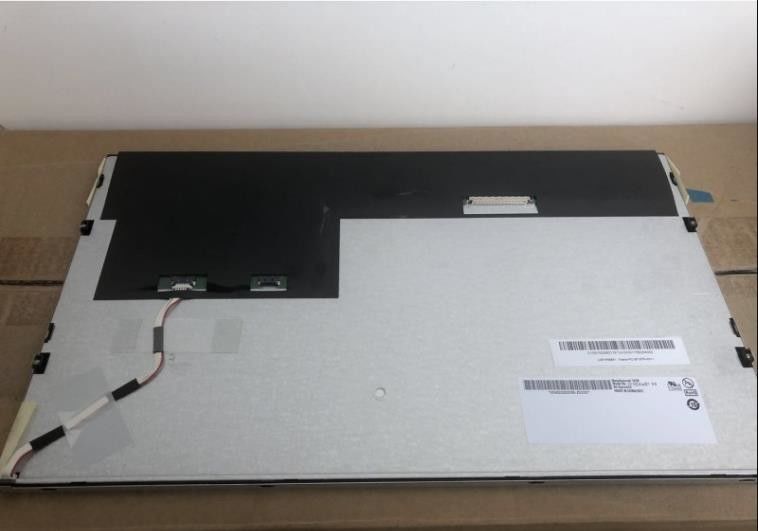

Product Details:
|
| MODEL NUMBER: | G156XW01 V101 | BRAND: | AUO |
|---|---|---|---|
| SIZE: | 15.6INCH | RESOLUTION: | 1366×768RGB |
| BRIGHTNESS: | 400CD/M2 | TEMPERATURE RANGE: | Operating Temp.: 0 ~ 60 °C ; Storage Temp.: -20 ~ 60 °C |
| Signal Interface: | LVDS | ||
| High Light: | 1366×768RGB AUO Industrial LCD Screen,400Nits AUO Industrial LCD Screen,100PPI WLED LVDS LCD Screen |
||
| Basic Information : | Brand | Model | Type | Model Alias |
|---|---|---|---|---|
| G156XW01 V101 | a-Si TFT-LCD , LCM | G156XW01 V.1(101) | ||
| Reliability : | RoHS | Operating Temperature | Storage Temperature | Vibration Resistance |
| 0 ~ 60 °C | -20 ~ 60 °C | - | ||
| Designed For : |
|
|||
| Panel Size : | 15.6 inch | |||
|---|---|---|---|---|
| Pixel Features : | Resolution | Pixel Arrangement | Dot Pitch (W×H) | Pixel Pitch (W×H) |
| 1366(RGB)×768, WXGA | RGB Vertical Stripe | 0.084×0.252 mm | 0.252×0.252 mm [100PPI] | |
| Mechanical Size : | Active Area (W×H) | Bezel Area (W×H) | Outline Dimension (W×H) | Outline Depth |
| 344.232×193.536 mm | 347.54×196.83 mm | 363.8×215.9 mm | 16.85±0.5 mm | |
| Outline Features : | Form Style | Aspect Ratio | Orientation | Shape Style |
| Flat Rectangle | 16:9 (W : H) | Landscape type | ||
| Fixation : | Side mounting holes (4-M3) on left, right bezel | |||
| Other Features : | Panel Cover | Weight | Surface | |
| - | 1.25/1.35Kgs (Typ./Max.) | Antiglare, Hard coating (3H) | ||
| Basic Information : | Brightness | Operating Mode | Contrast Ratio |
|---|---|---|---|
| 400 cd/m² (Typ.) | TN, Normally White, Transmissive | 500:1 (Typ.) (Transmissive) | |
| Viewing Angle(L/R/U/D) | Viewing Direction | Response Speed | |
| 85/85/80/80 (Typ.)(CR≥10) | - | 6/2 (Typ.)(Tr/Td) (ms) | |
| Dispaly Color : | Color Temperature | Color Amount | White color Chromaticity |
| 6485K | 16.7M (6-bit + Hi-FRC) | X:0.313; Y:0.329 | |
| 1931 Color Gamlt : | NTSC Ratio | sRGB Coverage | Adobe RGB Coverage |
| 71% | 92% | 71% | |
| DCI-P3 Coverage | Rec.2020 Coverage | Remarks | |
| 73% | 53% | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) | |
| Luminance Variation : | 1.25/1.33 (Typ./Max.)(9 points) | ||
| Power Consumption : | 12.65/14.5W (Typ./Max.) |
|---|---|
| Frame Rate : | 60Hz |
| Reverse Scan : | No |
| Signal Electrical : | Current Input | Voltage Input | Consumption | |||
|---|---|---|---|---|---|---|
| 0.43/0.50A (Typ./Max.) | 5.0V (Typ.) | 2.15/2.50W (Typ./Max.) | ||||
| Interface Features : | Position | Type | Interface | |||
| Connector | LVDS (1 ch, 8-bit) | |||||
| Signal Interface : | Brand | Model | Amount | Pin Pitch | Pins | Pin Assignment |
| JAE | FI-XB30SSL-HF15 | 1 pcs | 1.0 mm | 30 pins | LVDS-30P1C8B-170A | |
| Backlight Features: | Type | Position | Shape | Amount | Life(Hours) | Replacement |
|---|---|---|---|---|---|---|
| WLED | Edge light type (Bottom side) | - | - | 50K(Min.) | No | |
| Interface Features : | Position | Type | WLED Driver | |||
| - | Connector | With LED Driver | ||||
| Interface Detail | Brand | Model | Amount | Pin Pitch | Pins | Pin Assignment |
| E&T | 3808K-F05N-02R | 1 pcs | 1.25 mm | 5 pins | ||
| Driver Electrical : | Current Input | Voltage Input | Consumption | |||
| 0.79A (Typ.) | 12.0±1.2V | 9.5/10.5W (Typ./Max.) | ||||
FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
