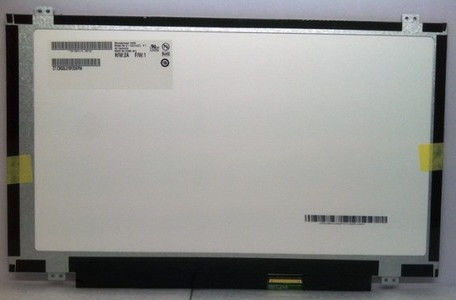

Product Details:
|
| MODEL NUMBER: | G156XTT01.1 | BRAND: | AUO |
|---|---|---|---|
| SIZE: | 15.6INCH | RESOLUTION: | 1366×768RGB |
| BRIGHTNESS: | 350CD/M2 | TEMPERATURE RANGE: | Operating Temp.: 0 ~ 60 °C ; Storage Temp.: -20 ~ 60 °C |
| Highlight: | LVDS 350nits AUO TFT LCD,15.6" WLED AUO TFT LCD,1366×768RGB Tft Lcd Screen |
||
| Basic Information : | Brand | Model | G156XTT01.1 | |
|---|---|---|---|---|
| Type | LCM a-Si TFT-LCD | Used For | ||
| Screen Size | 15.6" | Alias | G156XTT01 V.1 | |
| Environment : | Storage Temp. | -20 ~~ 60 °C | Operating Temp. | 0 ~~ 60 °C |
| RoHS | Vibration | 1.5G (14.7 m/s²) |
| Pixel Features : | Resolution | 1366(RGB)×768, WXGA | Dot Pitch(mm) | 0.084×0.252 (H×V) |
|---|---|---|---|---|
| Pixel Format | RGB Vertical Stripe | Pixel Pitch(mm) | 0.252×0.252 (H×V) [100PPI] | |
| Mechanical Size : | Active Area(mm) | 344.232(H) × 193.536(V) | Bezel Area(mm) | - |
| Outline Dim.(mm) | 363.8(H) × 215.9(V) | Depth(mm) | 12.5 (Max.) | |
| Outline Features : | Form Style | Flat Rectangle | Outline Shape | |
| Aspect Ratio | 16:9 (H:V) | Orientation | Landscape type | |
| Touch Panel : | Touch Points | - | Touch Panel | PCAP |
| TP Controller | With touch controller | Touch Signal | USB | |
| Mounting : | Side mounting holes (4-M3) on left, right bezel | |||
| Other Spec : | Weight | 1.35/1.49Kgs (Typ./Max.) | Treatment | Hard coating (7H) |
| Panel Cover | With Strengthened Cover Glass | |||
| Basic Information : | Luminance(cd/m²) | 350 (Typ.) | Contrast Ratio | 500:1 (Typ.) (Transmissive) |
|---|---|---|---|---|
| Viewing Angle | 85/85/80/80 (Typ.)(CR≥10) | Display Mode | TN, Normally White, Transmissive | |
| Best View on | - | Response(ms) | 6/2 (Typ.)(Tr/Td); 8 (Typ.)(G to G) | |
| Color Performance : | White Coordinate | X:0.313; Y:0.329 | Display Colors | 16.2M (6-bit + FRC) |
| Color Temperature | 6485K | White Uniformity | 1.33/1.43 (Typ./Max.)(9 points) | |
| 1931 Color Gamlt : | NTSC Ratio | 67% | sRGB | 89% coverage |
| Adobe RGB | 69% coverage | DCI-P3 | 69% coverage | |
| Rec.2020 | 50% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
| Frame Rate : | 60Hz |
|---|---|
| Reverse Scan : | No |
| Power Consumption : | 8.15W (Typ.) |
| Signal Electrical : | Voltage Supply | 5.0V (Typ.) | Current Supply | 0.43/0.52A (Typ./Max.) | ||
|---|---|---|---|---|---|---|
| Consumption | 2.15/2.6W (Typ./Max.) | |||||
| Signal Type : | LVDS (1 ch, 8-bit) | Signal Voltage | - | |||
| Interface Features : | Position | Type | Connector | |||
| Interface Detail : | Brand | Model | Quantity | Pins | Pitch | Pin Configuration |
| JAE | FI-XB30SSL-HF15 | 1 pcs | 30 pins | 1.0 mm | LVDS-30P1C8B-170A | |
| Backlight Features: | Shape | - | Type | WLED | Position | Edge light type (Bottom side) |
|---|---|---|---|---|---|---|
| Replacement | Replaceable | Quantity | - | Life Time | 50K(Min.) (Hours) | |
| Interface Features : | Position | - | Type | Connector | ||
| Interface Detail : | Brand | Model | Quantity | Pins | Pitch | Pin Configuration |
| E&T | 3808K-F05N-12R | 1 pcs | 5 pins | 1.25 mm | ||
| Backlight Driver : | With LED Driver | |||||
| Driver Electrical : | Voltage Supply | 12.0±1.2V | Current Supply | 0.5/0.6A (Typ./Max.) | ||
| Consumption | 6.0/7.2W (Typ./Max.) | |||||

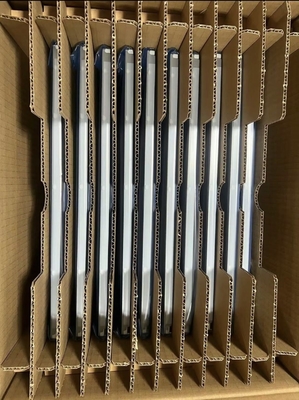

| Package Box : | Quantity | Weight | Box Size |
|---|---|---|---|
| 8 pcs / box | 12.8 Kgs | 523×483×277 mm (L×W×H) |
whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 344.232(W)×193.536(H) mm, outline size of 363.8(W)×215.9(H)×12.5(D) mm, with surface treament of Hard coating (7H), net weight of 1.35/1.49Kgs (Typ./Max.). As a TN, Normally White, Transmissive LCM product, G156XTT01.1 can provides 350 cd/m² display brightness 500:1 transimissive contrast ratio, 85/85/80/80 (Typ.)(CR≥10) (L/R/U/D) viewing angle , and response time of 6/2 (Typ.)(Tr/Td), 8 (Typ.)(G to G) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit + FRC gray scale signal for each dot, thus presenting a palette of 16.2M colors, also with performance of color gamut 62% (NTSC). This product adopted WLED as it's backlight systerm which was placed as Edge light type (Bottom side) and have a working life time of 50K hours, With LED Driver. G156XTT01.1 utilizes LVDS (1 ch, 8-bit) as it's signal inputting systerm, which connected by 30 pins Connector with power supply voltage of 5.0V (Typ.)
