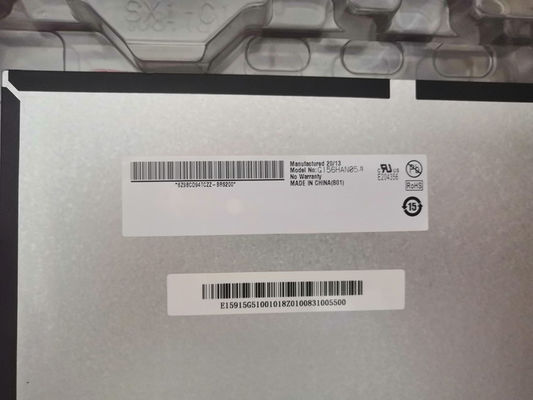

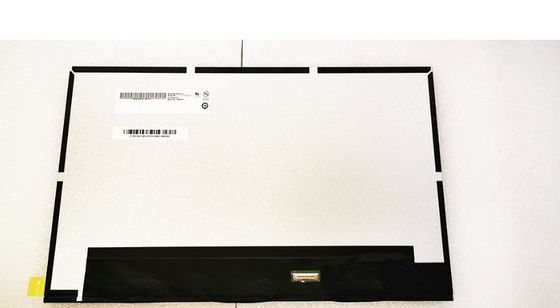

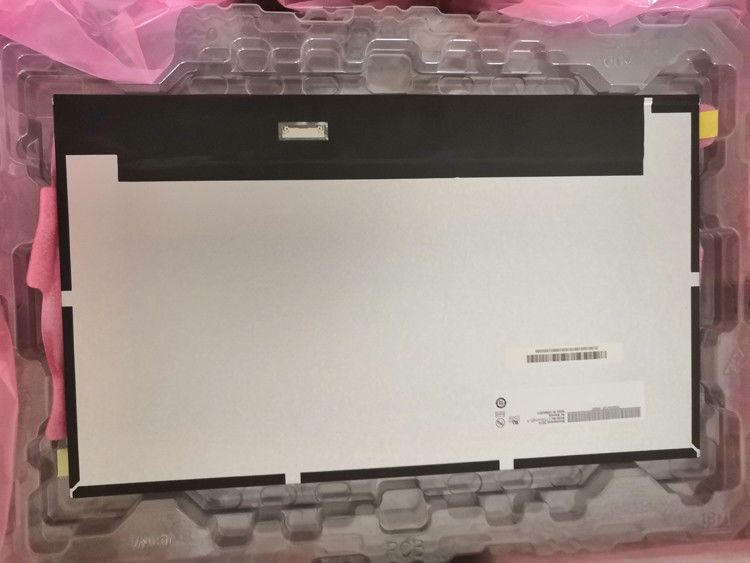

15.6 INCH 1920×1080RGB 500nits WLED EDP TFT Display G156HAN05.0

15.6 INCH 1920×1080RGB 500nits WLED EDP TFT Display G156HAN05.0
15.6 INCH 1920×1080RGB 500nits WLED EDP TFT Display G156HAN05.0 15.6 INCH 1920×1080RGB 500nits WLED EDP TFT Display G156HAN05.0 15.6 INCH 1920×1080RGB 500nits WLED EDP TFT Display G156HAN05.0

Large Image :  15.6 INCH 1920×1080RGB 500nits WLED EDP TFT Display G156HAN05.0

Product Details:
Place of Origin: CHINA
Brand Name: AUO
Certification: ISO9001
Model Number: G156HAN05.0
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Packaging Details: STANDARD PACKING
Delivery Time: 1-2 DAYS
Payment Terms: TT/PAYPAL/WESTERN UNION/ESCROW
Supply Ability: 200PCS
Contact Now

15.6 INCH 1920×1080RGB 500nits WLED EDP TFT Display G156HAN05.0

Description
MODEL NUMBER: G156HAN05.0 BRAND: AUO
SIZE: 15.6INCH RESOLUTION: 1920×1080RGB
BRIGHTNESS: 500CD/M2 TEMPERATURE RANGE: Storage Temp.: -20 ~ 70 °C Operating Temp.: -10 ~ 60 °C
Highlight:

500nits WLED EDP TFT Display

,

15.6" WLED EDP TFT Display

,

1920×1080RGB AUO TFT Display

AUO G156HAN05.0 Application Details

Basic Information :
Brand

Model
G156HAN05.0
Type
a-Si TFT-LCD , LCM
Used For
  •
Screen Size
15.6 inch
Alias
-
Environment :
Storage Temp.
-20 ~ 70 °C
Operating Temp.
-10 ~ 60 °C
RoHS

Vibration
1.5G (14.7 m/s²)
Typical Features :

Remarks :
eDP1.2



AUO G156HAN05.0 Mechanical Details

Pixel Features :
Resolution
1920(RGB)×1080, FHD
Dot Pitch(mm)
0.05975×0.17925 (H×V)
Pixel Format
RGB Vertical Stripe
Pixel Pitch(mm)
0.17925×0.17925 (H×V) [141PPI]
Mechanical Size :
Active Area(mm)
344.16(H) × 193.59(V)
Bezel Area(mm)
-
Outline Dim.(mm)
351.84(H) × 208.88(V)
Depth(mm)
4.1/6.5 (Typ./Max.)
Outline Features :
Form Style
Flat Rectangle
Shape Style

Aspect Ratio
16:9 (H:V)
Orientation
Landscape type
Mounting :
Without
Other Spec :
Weight
580g (Max.)
Treatment
Hard coating (3H)



AUO G156HAN05.0 Optical Details

Basic Information :
Luminance(cd/m²)
500 (Typ.)
Contrast Ratio
1000:1 (Typ.) (Transmissive)
Viewing Angle
89/89/89/89 (Typ.)(CR≥10)
Display Mode
AHVA, Normally Black, Transmissive
Best View on
Symmetry
Response(ms)
25 (Typ.)(Tr+Td)
Color Performance :
White Coordinate
Wx:0.313; Wy:0.329
Display Colors
16.2M (6-bit + FRC)
Color Temperature
6485K
White Uniformity
1.25/1.33 (Typ./Max.)(9 points)
1931 Color Gamut :
NTSC Ratio
78%
sRGB
100% coverage
Adobe RGB
78% coverage
DCI-P3
80% coverage
Rec.2020
58% coverage
Remarks
sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)



AUO G156HAN05.0 Interface Detail

Signal Electrical :
Voltage Supply
3.3V (Typ.)
Current Supply
0.22mA (Max.)
Consumption
0.8W (Max.)
Signal Type :
eDP (2 Lanes), eDP1.2
Logic Voltage
-
Interface Features :
Position
-
Type
Connector
Interface Detail :
Brand
Model
Pitch
Pins
Quantity
Pin Configuration
I-PEX
20765-030E-11A
0.5 mm
30 pins
1 pcs



FAQ:



Q1: What's the quality of your LCD Panel?



A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.



Q2: What is your return and refund policy?



A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.



Q3: How long is the lead time?



A: The lead time is about 1-3 working days after receipt of payment.



Q4: How can I get the quotation?



A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.



 15.6 INCH 1920×1080RGB 500nits WLED EDP TFT Display G156HAN05.0 0
