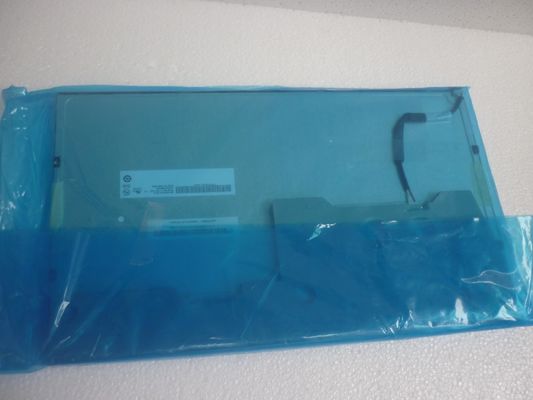

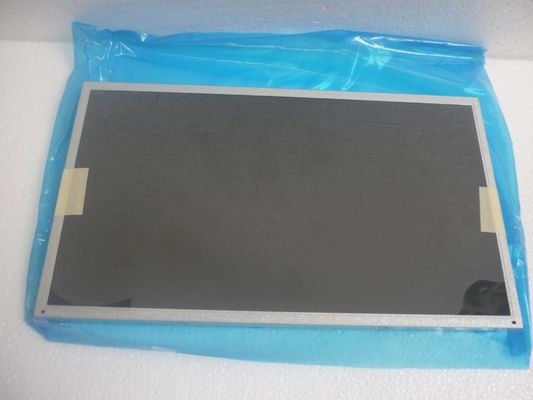

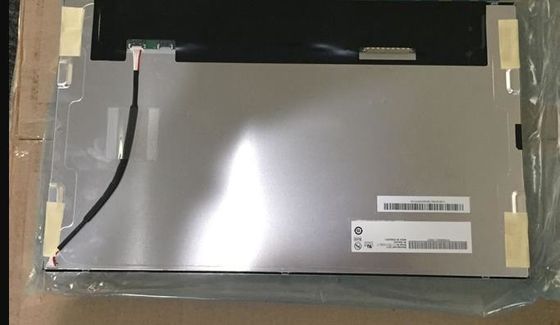

1920×1080RGB 15.6 INCH 400CD/M2 WLED EDP Lcd Monitor G156HAB02.4

1920×1080RGB 15.6 INCH 400CD/M2 WLED EDP Lcd Monitor G156HAB02.4
1920×1080RGB 15.6 INCH 400CD/M2 WLED EDP Lcd Monitor G156HAB02.4 1920×1080RGB 15.6 INCH 400CD/M2 WLED EDP Lcd Monitor G156HAB02.4 1920×1080RGB 15.6 INCH 400CD/M2 WLED EDP Lcd Monitor G156HAB02.4

Large Image :  1920×1080RGB 15.6 INCH 400CD/M2 WLED EDP Lcd Monitor G156HAB02.4

Product Details:
Place of Origin: CHINA
Brand Name: AUO
Certification: ISO9001
Model Number: G156HAB02.4
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Packaging Details: 16 pcs / box 14 Kgs 508×408×279 mm (L×W×H)
Delivery Time: 1-2 DAYS
Payment Terms: TT/PAYPAL/WESTERN UNION/ESCROW
Supply Ability: 100PCS
Contact Now

1920×1080RGB 15.6 INCH 400CD/M2 WLED EDP Lcd Monitor G156HAB02.4

Description
MODEL NUMBER: G156HAB02.4 BRAND: AUO
SIZE: 15.6INCH RESOLUTION: 1920×1080RGB
BRIGHTNESS: 400CD/M2 TEMPERATURE RANGE: Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C
Highlight:

400CD/M2 WLED EDP Lcd Monitor

,

15.6" WLED EDP Lcd Monitor

,

1920×1080RGB AUO TFT Panel



AUO G156HAB02.4 Application Details

Basic Information :
Brand

Model
G156HAB02.4
Type
a-Si TFT-LCD , LCM
Used For

Screen Size
15.6 inch
Alias
-
Environment :
Storage Temp.
-20 ~ 60 °C
Operating Temp.
0 ~ 50 °C
RoHS

Vibration
1.5G (14.7 m/s²)



AUO G156HAB02.4 Mechanical Details

Pixel Features :
Resolution
1920(RGB)×1080, FHD
Dot Pitch(mm)
0.05975×0.17925 (H×V)
Pixel Format
RGB Vertical Stripe
Pixel Pitch(mm)
0.17925×0.17925 (H×V) [141PPI]
Mechanical Size :
Active Area(mm)
344.16(H) × 193.59(V)
Bezel Area(mm)
-
Outline Dim.(mm)
361(H) × 227(V)
Depth(mm)
6.0/8.0 (Typ./Max.)
Outline Features :
Form Style
Flat Rectangle
Shape Style

Aspect Ratio
16:9 (H:V)
Orientation
Landscape type
Touch Panel :
Touch Points
10 points
Touch Panel
On-Cell Touch
TP Controller
With touch controller
Touch Signal
USB
Mounting :
Without
Other Spec :
Weight
860g (Max.)
Treatment
Hard coating (5H)
Panel Cover
With Cover Lens



AUO G156HAB02.4 Optical Details

Basic Information :
Luminance(cd/m²)
400 (Typ.)
Contrast Ratio
800:1 (Typ.) (Transmissive)
Viewing Angle
89/89/89/89 (Typ.)(CR≥10)
Display Mode
AHVA, Normally Black, Transmissive
Best View on
Symmetry
Response(ms)
25 (Typ.)(Tr+Td)
Color Performance :
White Coordinate
Wx:0.313; Wy:0.329
Display Colors
16.2M (6-bit + FRC)
Color Temperature
6485K
White Uniformity
1.25/1.33 (Typ./Max.)(5 points)
1931 Color Gamlt :
NTSC Ratio
49%
sRGB
68% coverage
Adobe RGB
51% coverage
DCI-P3
51% coverage
Rec.2020
36% coverage
Remarks
sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)



AUO G156HAB02.4 Electronics Details

Frame Rate :
60Hz
Reverse Scan :
No



AUO G156HAB02.4 Interface Detail

Signal Electrical :
Voltage Supply
3.3V (Typ.)
Current Supply
0.22A (Max.)
Consumption
0.8W (Max.)
Signal Type :
eDP (2 Lanes), eDP1.2
Logic Voltage
-
Interface Features :
Position
Down right of panel
Type
Connector
Interface Detail :
Brand
Model
Pitch
Pins
Quantity
Pin Configuration
I-PEX
20765-040E-11A
0.5 mm
40 pins
1 pcs




AUO G156HAB02.4 Backlight Details

Backlight Features :
Type
WLED
Quantity
-
Position
Edge light type
Replacement
-
Shape
-
Life Time
50K(Min.) (Hours)
Interface Features :
Position
-
Type
Included in panel signal interface
Backlight Driver :
With LED Driver
Driver Electrical :
Voltage Supply
12.0±1.2V
Current Supply
-
Consumption
6.8W (Max.)



FAQ:



Q1: What's the quality of your LCD Panel?



A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.



Q2: What is your return and refund policy?



A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.



Q3: How long is the lead time?



A: The lead time is about 1-3 working days after receipt of payment.



Q4: How can I get the quotation?



A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
