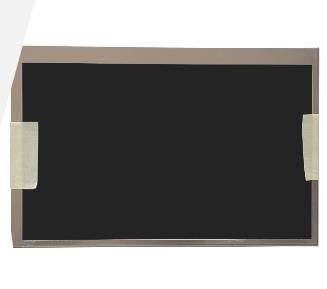

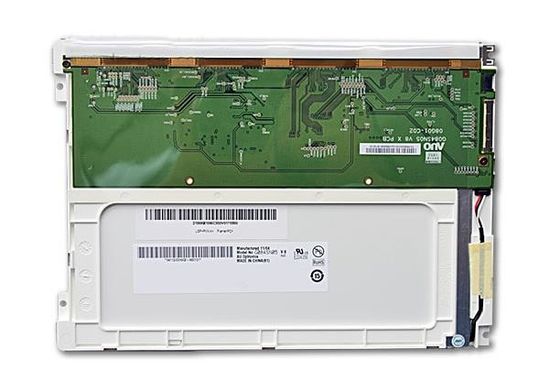

Product Details:
|
| MODEL NUMBER: | C088KAN02.0 | BRAND: | AUO |
|---|---|---|---|
| SIZE: | 8.8INCH | RESOLUTION: | 1280×256RGB |
| BRIGHTNESS: | 500CD/M2 | TEMPERATURE RANGE: | Operating Temp.: -30 ~ 85 °C ; Storage Temp.: -40 ~ 90 °C |
| High Light: | 8.8" AUO TFT LCD,1280×256RGB AUO TFT LCD,500CD/M2 WLED LVDS Lcd Panel |
||
| Basic Information : | Brand | Model | C088KAN02.0 | |
|---|---|---|---|---|
| Type | LCM a-Si TFT-LCD | Used For | ||
| Screen Size | 8.8" | Alias | - | |
| Environment : | Storage Temp. | -40 ~~ 90 °C | Operating Temp. | -30 ~~ 85 °C |
| RoHS | Vibration | - |
| Pixel Features : | Resolution | 1280(RGB)×256 | Dot Pitch(mm) | 0.057×0.171 (H×V) |
|---|---|---|---|---|
| Pixel Format | RGB Vertical Stripe | Pixel Pitch(mm) | 0.171×0.171 (H×V) [148PPI] | |
| Mechanical Size : | Active Area(mm) | 218.88(H) × 43.773(V) | Bezel Area(mm) | - |
| Outline Dim.(mm) | 231.16(H) × 57.38(V) | Depth(mm) | 7.45 (Typ.) | |
| Outline Features : | Form Style | Flat Free Shape | Outline Shape | |
| Aspect Ratio | >3:1 (H:V) | Orientation | Landscape type | |
| Mounting : | Rear mounting Pole (4-M2) | |||
| Other Spec : | Weight | - | Treatment | Antiglare |
| Basic Information : | Luminance(cd/m²) | - | Contrast Ratio | 1000:1 (Typ.) (Transmissive) |
|---|---|---|---|---|
| Viewing Angle | 80/80/80/80 (Min.)(CR≥10) | Display Mode | AHVA, Normally Black, Transmissive | |
| Best View on | Symmetry | Response(ms) | 9/11 (Typ.)(Tr/Td) | |
| Color Performance : | White Coordinate | - | Display Colors | 16.7M (8-bit) |
| Frame Rate : | 60Hz |
|---|---|
| Reverse Scan : | Yes (U/D, L/R) |
| Signal Electrical : | Voltage Supply | 3.3V (Typ.) | Current Supply | - | ||
|---|---|---|---|---|---|---|
| Signal Type : | LVDS (1 ch, 8-bit) + SPI | Signal Voltage | - | |||
| Interface Features : | Position | - | Type | FPC | ||
| Interface Detail : | Brand | Model | Quantity | Pins | Pitch | Pin Configuration |
| 1 pcs | 40 pins | 0.5 mm | ||||
| Backlight Features: | Shape | - | Type | WLED | Position | Edge light type |
|---|---|---|---|---|---|---|
| Replacement | - | Quantity | - | Life Time | - | |
| Interface Features : | Position | - | Type | FPC | ||
| Interface Detail : | Brand | Model | Quantity | Pins | Pitch | Pin Configuration |
| 1 pcs | 10 pins | 0.5 mm | ||||
| Backlight Driver : | No | |||||
FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
