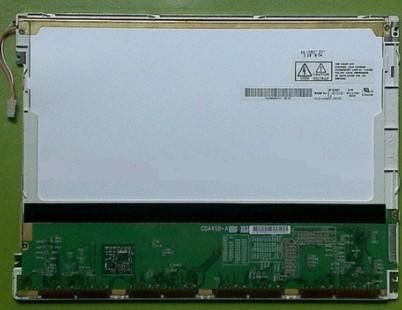

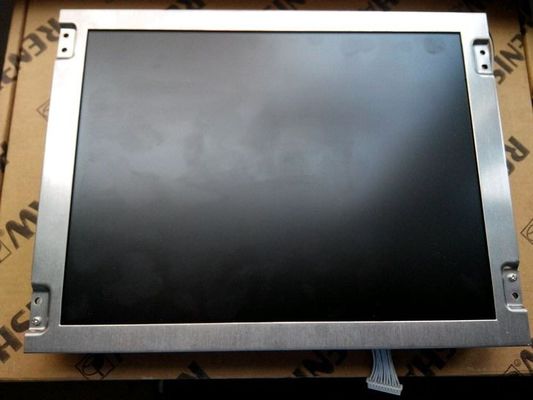

Product Details:
|
| MODEL NUMBER: | G081VTN01.0 | BRAND: | AUO |
|---|---|---|---|
| SIZE: | 8.1INCH | RESOLUTION: | 800×300 RGB |
| BRIGHTNESS: | 300CD/M2 | TEMPERATURE RANGE: | Operating Temp.: 0 ~ 60 °C |
| High Light: | WLED TTL AUO TFT Display,800×300RGB AUO TFT Display,8.1" AUO TFT Panel |
||
| Basic Detail : | Manufacturer | Model Name | G081VTN01.0 | |
|---|---|---|---|---|
| Panel Type | a-Si TFT-LCD , LCM | Another Name | - | |
| Panel Size | 8.1 inch | Designed For | ||
| Maximum Ratings : | OP Temperature | 0 ~ 60 °C | ST Temperature | - |
| Vibration Level | - | RoHS |
| Basic Information : | Luminance | 300 cd/m² (Min.) | Contrast Ratio | 300 : 1 (Typ.) (Transmissive) |
|---|---|---|---|---|
| Good View at | - | Response Speed | 10/20 (Typ.)(Tr/Td) (ms) | |
| Viewing Angle | 60/60/40/60 (Typ.)(CR≥10) | Operating Mode | TN, Normally White | |
| Color Performance : | Chromaticity | - | Support Color | 16.2M (6-bit + FRC) |
| Pixel Features : | Number of Pixel | 800(RGB)×300 | Arrangement | RGB Vertical Stripe |
|---|---|---|---|---|
| Dot Pitch(W×H) | 0.080×0.240 mm | Pixel Pitch(W×H) | 0.240×0.240 mm [105PPI] | |
| Physical Size : | Active Viewing | 192(W)×72(H) mm | Overall Dim. | 204.6(W)×86.2(H) mm |
| Bezel Opening | 194(W)×74(H) mm | Overall Depth | 5.6±0.6 mm | |
| Outline Features : | Form Shape | Flat Rectangle | Orientation | Landscape type |
| Aspect Ratio(W:H) | 8:3 | Shape Style | ||
| Other Detail : | Mass | 225±10g | Surface | Antiglare |
| Time Controller (T-CON) : | Embedded T-CON |
|---|
| Signal Electrical : | Input Current | 11/8/0.02/0.2/0.2mA (Typ.)(IDD/AIDD/GICC/IGH/IGL) | Input Voltage | 3.3/11/3.3/15/-7V (Typ.)(VDD/AVDD/GVCC/VGH/VGL) | ||
|---|---|---|---|---|---|---|
| Consumption | - | Signal Interface | Parallel RGB (1 ch, 8-bit) | |||
| Interface Features : | Position | - | Physical Type | FPC | ||
| Signal Interface : | Brand | Model | Amount | Pin Pitch | Pin Amount | Pin Assignment |
| 1 pcs | 0.5 mm | 60 pins | ||||
| Lamp Features: | Lamp Shape | 1 string | Lamp Type | WLED | Position | Edge light type |
|---|---|---|---|---|---|---|
| Exchange | - | Amount | 4S1P | Life | 10K(Min.) (Hours) | |
| Lamp Electrical : | Input Current | 175/180mA (Typ./Max.) | Input Voltage | 13.2/15.2V (Typ./Max.) | ||
| Interface Features : | Position | - | Physical Type | Connector | ||
| Interface Detail : | Brand | Model | Amount | Pin Pitch | Pin Amount | Pin Assignment |
| JST | PHR-2 | 1 pcs | 2.0 mm | 2 pins | BLE-2PINS-AC | |
| Backlight Driver : | No | |||||
FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
