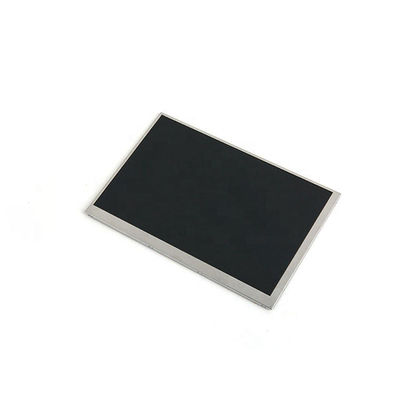

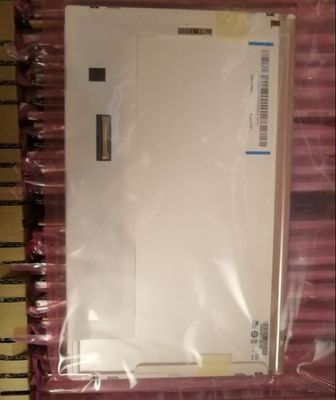

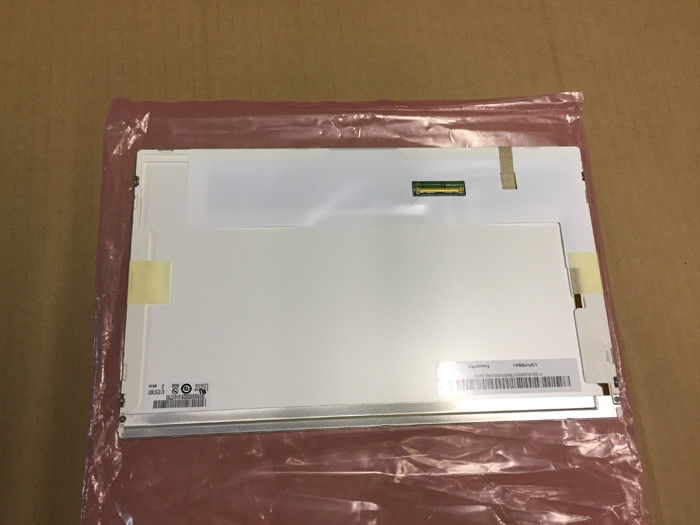

Product Details:
|
| MODEL NUMBER: | G101STT01.0 | BRAND: | AUO |
|---|---|---|---|
| SIZE: | 10.1INCH | RESOLUTION: | 1024×600 RGB |
| BRIGHTNESS: | 385CD/M2 | TEMPERATURE RANGE: | Operating Temperature: -10 ~ 60 °C ; Storage Temperature: -30 ~ 70 °C |
| High Light: | 385nits AUO TFT LCD,1024×600RGB AUO TFT LCD,WLED LVDS AUO TFT Display |
||
| Basic Information : | Manufacturer | Panel Model | Panel Type | Alias |
|---|---|---|---|---|
| G101STT01.0 | a-Si TFT-LCD , LCM | - | ||
| Environment : | RoHS State | Operating Temp. | Storage Temp. | Vibration Level |
| -10 ~ 60 °C | -30 ~ 70 °C | - | ||
| Used For : |
|
|||
| Basic Information : | Luminance (cd/m²) | Viewing Angle (L/R/U/D) | Response Time (ms) |
|---|---|---|---|
| 385 (Typ.) | 70/70/60/60 (Typ.)(CR≥10) | 7/9 (Typ.)(Tr/Td) | |
| Best View on | Display Mode | Contrast Ratio | |
| - | TN, Normally White, Transmissive | 500 : 1 (Typ.) (Transmissive) | |
| Dispaly Color : | Color Temperature | Display Colors | White Coordinate |
| 6485K | 262K (6-bit) | X:0.313; Y:0.329 | |
| 1931 Color Gamlt : | NTSC Ratio | sRGB Coverage | Adobe RGB Coverage |
| 47% | 65% | 49% | |
| DCI-P3 Coverage | Rec.2020 Coverage | Remarks | |
| 48% | 35% | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) | |
| White Variation : | 1.25/1.33 (Typ./Max.)(5 points) | ||
| Panel Size : | 10.1" | |||
|---|---|---|---|---|
| Pixel Features : | Pixel Format | Pixel Configuration | Pixel Pitch (mm) | Dot Pitch (mm) |
| 1024(RGB)×600 [WSVGA] | RGB Vertical Stripe | 0.2175×0.2088 [117PPI] | 0.0725×0.2088 | |
| Mechanical Size : | Active Area (mm) | Bezel Area (mm) | Outline Dimension (mm) | Outline Depth (mm) |
| 222.72(H) × 125.28(V) | 223.72(H) × 126.28(V) | 249.56(H) × 168.2(V) | 8.8±0.5 mm | |
| Outline Features : | Form Factor | Orientation | Aspect Ratio | Shape Style |
| Flat Rectangle | Landscape type | 16:9 (H:V) | ||
| Touch Screen : | Controller | Touch Points | Interface | TP Technology |
| With touch controller | 10 points | USB | PCAP, Air Bonding | |
| Mounting : | Side mounting holes (4-M2) on left, right bezel | |||
| Other Detail : | Weight | Panel Cover | Treatment | |
| 450g (Max.) | - | Hard coating (7H) | ||
| Reverse Scan : | No |
|---|---|
| Vertical Frequency : | 60Hz |
| Lamp Features: | Type | Position | Quantity | Shape | Life(Hours) | Lamp Exchange |
|---|---|---|---|---|---|---|
| WLED | Edge light type | 3 strings | 3 strings | 50K(Typ.) | - | |
| WLED Electrical : | Voltage Supply | Current Supply | Power | |||
| 24.61/27.69V (Typ./Max.) | 38mA (Typ.) | 0.935/1.052W (Typ./Max.) | ||||
| Interface Features : | Position | Backlight Driver | Type | |||
| - | With LED Driver | Included in panel signal interface | ||||
| Driver Electrical : | Voltage Supply | Current Supply | Power Consumption | |||
| 5.0±0.5V | 720/900mA (Typ./Max.) | 3.6/4.5W (Typ./Max.) | ||||
| Panel Driving Electrical : | Voltage Supply | Current Supply | Power | |||
|---|---|---|---|---|---|---|
| 3.3V (Typ.) | 130/150mA (Typ./Max.) | 0.43/0.5W (Typ./Max.) | ||||
| Interface Features : | Position | Signal | Type | |||
 |
LVDS (1 ch, 6-bit) | Connector | ||||
| Connector Detail : | Brand | Model | Pin Pitch | Pin Amount | Quantity | Configuration |
| STM | MSB24013P20HA | 1.0 mm | 20 pins | 1 pcs | ||
FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
