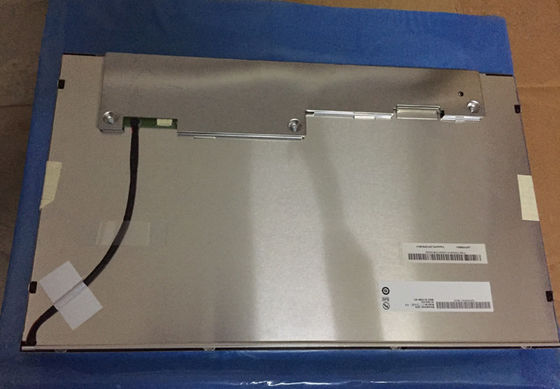

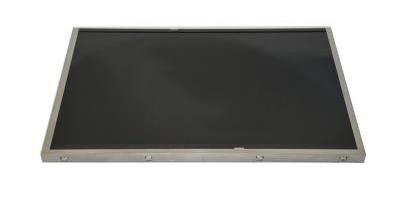

Product Details:
|
| MODEL NUMBER: | G173HE02 V0 | BRAND: | AUO |
|---|---|---|---|
| SIZE: | 17.3INCH | RESOLUTION: | 1920×1080RGB |
| BRIGHTNESS: | 400CD/M2 | TEMPERATURE RANGE: | Operating Temperature: 0 ~ 70 °C ; Storage Temperature: -20 ~ 70 °C |
| High Light: | WLED AUO TFT LCD,TN AUO TFT LCD |
||
| Basic Information : | Brand | Model | G173HE02 V0 | |
|---|---|---|---|---|
| Type | LCM a-Si TFT-LCD | Used For | ||
| Screen Size | 17.3" | Alias | G173HE02 V.0 | |
| Environment : | Storage Temp. | -20 ~~ 70 °C | Operating Temp. | 0 ~~ 70 °C |
| RoHS | Vibration | 1.5G (14.7 m/s²) |
| Pixel Features : | Resolution | 1920(RGB)×1080, FHD | Dot Pitch(mm) | 0.0663×0.1989 (H×V) |
|---|---|---|---|---|
| Pixel Format | RGB Vertical Stripe | Pixel Pitch(mm) | 0.1989×0.1989 (H×V) [127PPI] | |
| Mechanical Size : | Active Area(mm) | 381.888(H) × 214.812(V) | Bezel Area(mm) | 385.09(H) × 218.01(V) |
| Outline Dim.(mm) | 403(H) × 240(V) | Depth(mm) | 12.5 (Typ.) | |
| Outline Features : | Form Style | Flat Rectangle | Outline Shape | |
| Aspect Ratio | 16:9 (H:V) | Orientation | Landscape type | |
| Mounting : | Side mounting holes (4-M3) on left, right bezel | |||
| Other Spec : | Weight | 1.08Kgs (Typ.) | Treatment | Glare (Haze 0%), Hard coating (3H) |
| Basic Information : | Luminance(cd/m²) | 400 (Typ.) | Contrast Ratio | 600:1 (Typ.) (Transmissive) |
|---|---|---|---|---|
| Viewing Angle | 80/80/70/80 (Typ.)(CR≥10) | Display Mode | TN, Normally White, Transmissive | |
| Best View on | - | Response(ms) | 37/3 (Typ.)(Tr/Td) | |
| Color Performance : | White Coordinate | X:0.305; Y:0.318 | Display Colors | 16.7M (6-bit + Hi-FRC) |
| Color Temperature | 7064K | White Uniformity | 1.25/1.33 (Typ./Max.)(13 points) | |
| 1931 Color Gamlt : | NTSC Ratio | 73% | sRGB | 95% coverage |
| Adobe RGB | 74% coverage | DCI-P3 | 76% coverage | |
| Rec.2020 | 55% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
| Frame Rate : | 60Hz |
|---|---|
| Reverse Scan : | No |
| Power Consumption : | 17.0W (Typ.) |
| Signal Electrical : | Voltage Supply | 3.3V (Typ.) | Current Supply | 1.2/1.4A (Typ./Max.) | ||
|---|---|---|---|---|---|---|
| Consumption | 5.0/6.0W (Typ./Max.) | |||||
| Signal Type : | LVDS (2 ch, 8-bit) | Signal Voltage | - | |||
| Interface Features : | Position |  |
Type | Connector | ||
| Interface Detail : | Brand | Model | Quantity | Pins | Pitch | Pin Configuration |
| HRS | MDF76TW-30S-1H | 1 pcs | 30 pins | 1.0 mm | LVDS-30P2C8B-200A | |
| Backlight Features: | Shape | - | Type | WLED | Position | Edge light type (Top side) |
|---|---|---|---|---|---|---|
| Replacement | - | Quantity | - | Life Time | 50K(Min.) (Hours) | |
| Interface Features : | Position | - | Type | Connector | ||
| Interface Detail : | Brand | Model | Quantity | Pins | Pitch | Pin Configuration |
| HRS | DF14A-6P-1.25H | 1 pcs | 6 pins | 1.25 mm | ||
| Backlight Driver : | With LED Driver | |||||
| Driver Electrical : | Voltage Supply | 10.8/12.0/13.4V (Min./Typ./Max.) | Current Supply | 0.99A (Typ.) | ||
| Consumption | 12.0/15.0W (Typ./Max.) | |||||
