Product Details:
|
| MODEL NUMBER: | G150XTT02.0 | BRAND: | AUO |
|---|---|---|---|
| SIZE: | 15INCH | RESOLUTION: | 1024×768RGB |
| BRIGHTNESS: | 500CD/M2 | TEMPERATURE RANGE: | Operating Temperature: -20 ~ 70 °C ; Storage Temperature: -20 ~ 70 °C |
| Signal Interface: | LVDS | Lamp Type: | WLED |
| High Light: | WLED AUO TFT LCD,TN AUO TFT LCD |
||

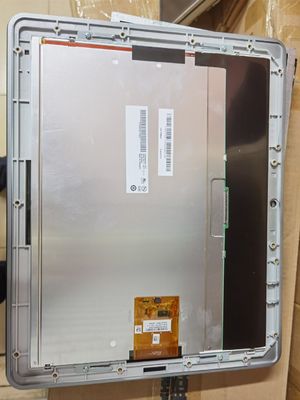

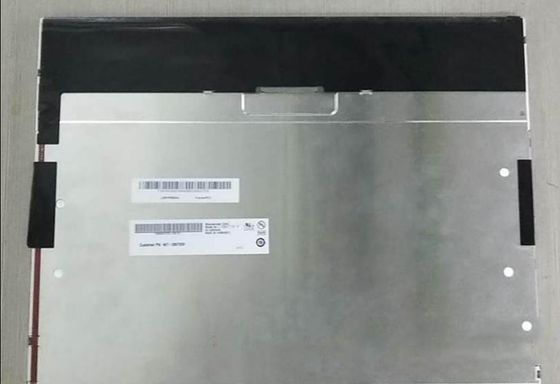

The G150XTT02.0 is a 15.0 inch diagonal a-Si TFT-LCD display panel product from AU Optronics Corp. (hereafter called AUO), with an integral WLED backlight system, touchscreen PCAP. It's general features are summarized by Panelook in the following: With Touch, WLED Backlight, 6/8 bit . Based on its features, Panelook recommend that this model be applied to Industrial etc. Now this model is discontinued. There are 4 items stock and 4 suppliers of this model on Panelook. We inputted this model's specification on Jul 19 2018 for the first time, and the latest update on Dec 11 2018. If you want to embed G150XTT02.0 LCM in your future product, Panelook strongly recommend that you should contact with AUO or it's agent to learn lateast production and specification detail. The G150XTT02.0 production status marked on Panelook.com is for reference only and should not be used as the basis for the user's decision making. The above parameters are not from the datasheet, only as a reference, please use with caution!
| Basic Information : | Brand Name | Model Name | Type | Model Alias |
|---|---|---|---|---|
| G150XTT02.0 | a-Si TFT-LCD , LCM | - | ||
| Maximum Ratings : | RoHS | Operating Temperature | Storage Temperature | Vibration Level |
| - | - | - | ||
| Application : |
|
|||
| Screen Size : | 15.0" | |||
|---|---|---|---|---|
| Pixel Features : | Pixel Number | Pixel Format | Dot Pitch (H×V) | Pixel Pitch (H×V) |
| 1024(RGB)×768, XGA | RGB Vertical Stripe | 0.099×0.297 mm | 0.297×0.297 mm [85PPI] | |
| Mechanical Size : | Display Area (H×V) | Bezel Opening (H×V) | Overall Dimension (H×V) | Overall Depth |
| 304.128×228.096 mm | - | - | - | |
| Outline Features : | Form Shape | Aspect Ratio (H:V) | Orientation | Shape Style |
| Flat Rectangle | 4:3 | Landscape type | ||
| Touch Panel : | Touch Points | Signal Type | Controller | Technology |
| - | - | - | PCAP | |
| Basic Information : | Luminance | Work Mode | Contrast Ratio |
|---|---|---|---|
| - | TN, Normally White, Transmissive | 700:1 (Typ.) (Transmissive) | |
| Good View at | Viewing Angle | Response Time | |
| - | 80/80/70/80 (Typ.)(CR≥10) | 5.7/2.3 (Typ.)(Tr/Td) (ms) | |
| Dispaly Color : | Color Temperature: | Support Color | Color Coordinate |
| 6485K | 262K/16.2M (6-bit / 6-bit + FRC) | X:0.313; Y:0.329 |
| Refresh Rate : | 60Hz |
|---|---|
| Reverse Scan : | No |
