Product Details:
|
| MODEL NUMBER: | G150XTT01.0 | BRAND: | AUO |
|---|---|---|---|
| SIZE: | 15INCH | RESOLUTION: | 1024×768RGB |
| BRIGHTNESS: | 500CD/M2 | TEMPERATURE RANGE: | Operating Temperature: -20 ~ 70 °C ; Storage Temperature: -20 ~ 70 °C |
| Signal Interface: | LVDS | Lamp Type: | WLED |
| High Light: | WLED AUO TFT LCD,TN AUO TFT LCD |
||

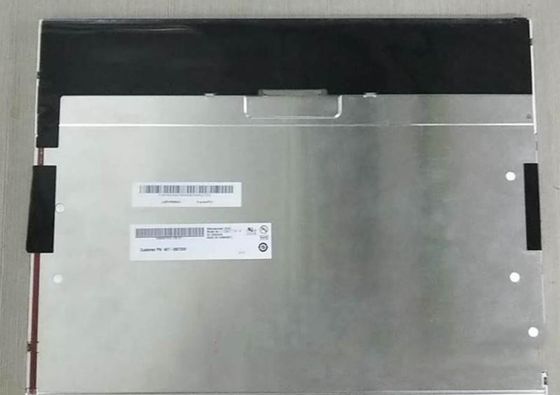

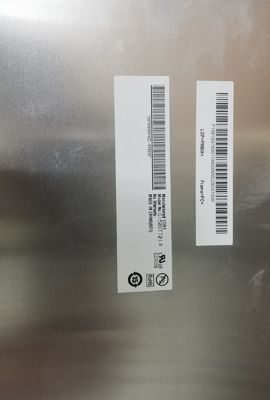

G150XTT01.0 is a 15.0" diagonal a-Si TFT-LCD display panel product from AU Optronics Corp. (hereafter called AUO), with an integral WLED backlight system, touchscreen PCAP. It's general features are summarized by Panelook in the following: With Touch, WLED Backlight, 6/8 bit , for NCR. Based on its features, Panelook recommend that this model be applied to Industrial etc. According to the information stored in Panelook this model mass production on Q2, 2015, Now this model is discontinued. There are 6 items stock and 2 suppliers of this model on Panelook. We inputted this model's specification on Jan 20 2016 for the first time, and the latest update on Jun 15 2017. If you want to embed the LCM in your future product, Panelook strongly recommend that you should contact with AUO or it's agent to learn lateast production and specification detail of G150XTT01.0. The production status marked on Panelook.com is for reference only and should not be used as the basis for the user's decision making. The above parameters are not from the datasheet, only as a reference, please use with caution!
| Basic Detail : | Manufacturer | Model Name | G150XTT01.0 | |
|---|---|---|---|---|
| Panel Type | a-Si TFT-LCD , LCM | Another Name | - | |
| Panel Size | 15.0 inch | Designed For | ||
| Maximum Ratings : | OP Temperature | - | ST Temperature | - |
| Vibration Level | - | RoHS |
| Basic Information : | Luminance | - | Contrast Ratio | 700 : 1 (Typ.) (Transmissive) |
|---|---|---|---|---|
| Good View at | - | Response Speed | 5.7/2.3 (Typ.)(Tr/Td) (ms) | |
| Viewing Angle | 80/80/70/80 (Typ.)(CR≥10) | Operating Mode | TN, Normally White, Transmissive | |
| Color Performance : | Chromaticity | Wx:0.313; Wy:0.329 | Support Color | 262K/16.2M (6-bit / 6-bit + FRC) |
| Color Temperature | 6485K | White Uniformity | - |
| Pixel Features : | Number of Pixel | 1024(RGB)×768 [XGA] | Arrangement | RGB Vertical Stripe |
|---|---|---|---|---|
| Dot Pitch(W×H) | 0.099×0.297 mm | Pixel Pitch(W×H) | 0.297×0.297 mm [85PPI] | |
| Physical Size : | Active Viewing | 304.128(W)×228.096(H) mm | Overall Dim. | - |
| Outline Features : | Form Shape | Flat Rectangle | Orientation | Landscape type |
| Aspect Ratio(W:H) | 4:3 | Shape Style | ||
| Touchscreen : | TP Controller | - | TP Interface | - |
| Touch Points | - | TP Technology | PCAP |
| Refresh Rate : | 60Hz |
|---|---|
| Reverse Scan : | No |
| Signal Electrical : | Input Current | - | Input Voltage | 3.3V (Typ.) | ||
|---|---|---|---|---|---|---|
| Consumption | - | Signal Interface | LVDS (1 ch, 6/8-bit) | |||
| Interface Features : | Position | - | Physical Type | Connector | ||
FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
