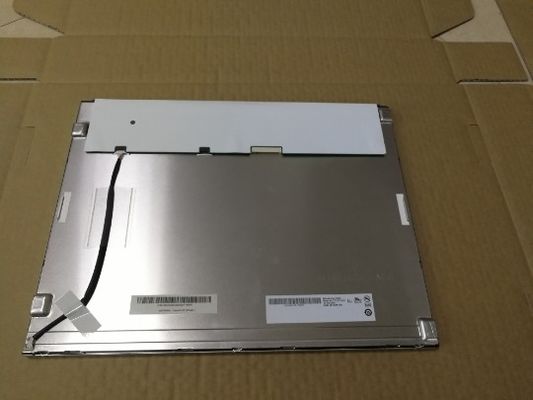

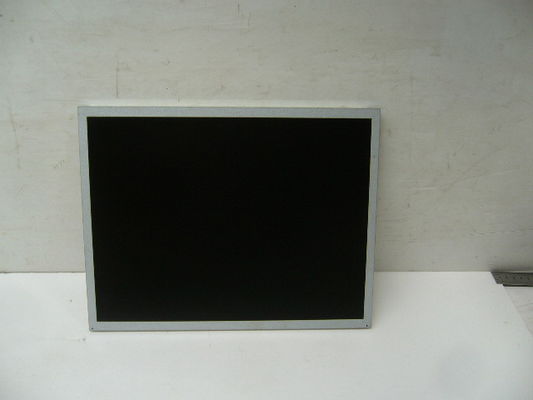

G150XTN05.0 AUO 15INCH 1024×768RGB 350CD/M2 WLED LVDS Operating Temperature: -30 ~ 85 °C INDUSTRIAL LCD DISPLAY

G150XTN05.0 AUO 15INCH 1024×768RGB 350CD/M2 WLED LVDS Operating Temperature: -30 ~ 85 °C INDUSTRIAL LCD DISPLAY
G150XTN05.0 AUO 15INCH 1024×768RGB 350CD/M2 WLED LVDS Operating Temperature: -30 ~ 85 °C INDUSTRIAL LCD DISPLAY G150XTN05.0 AUO 15INCH 1024×768RGB 350CD/M2 WLED LVDS Operating Temperature: -30 ~ 85 °C INDUSTRIAL LCD DISPLAY G150XTN05.0 AUO 15INCH 1024×768RGB 350CD/M2 WLED LVDS Operating Temperature: -30 ~ 85 °C INDUSTRIAL LCD DISPLAY

Large Image :  G150XTN05.0 AUO 15INCH 1024×768RGB 350CD/M2 WLED LVDS Operating Temperature: -30 ~ 85 °C INDUSTRIAL LCD DISPLAY

Product Details:
Place of Origin: CHINA
Brand Name: AUO
Certification: ISO9001
Model Number: G150XTN05.0
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS

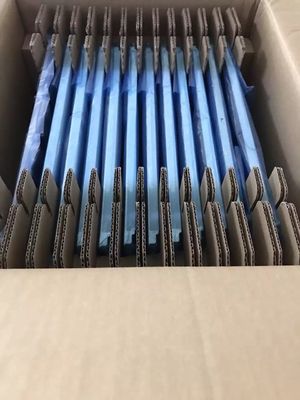

Packaging Details: 12 pcs / box 12.56 Kgs 430×334×350 mm
Delivery Time: 1-2 DAYS
Payment Terms: TT/PAYPAL/WESTERN UNION/ESCROW
Supply Ability: 200PCS
Contact Now

G150XTN05.0 AUO 15INCH 1024×768RGB 350CD/M2 WLED LVDS Operating Temperature: -30 ~ 85 °C INDUSTRIAL LCD DISPLAY

Description
MODEL NUMBER: G150XTN05.0 BRAND: AUO
SIZE: 15INCH RESOLUTION: 1024×768RGB
BRIGHTNESS: 350CD/M2 TEMPERATURE RANGE: Operating Temperature: -30 ~ 85 °C ; Storage Temperature: -30 ~ 85 °C
High Light:

WLED AUO TFT LCD

,

TN AUO TFT LCD

AUO G150XTN05.0 Application Details

Basic Info :
Panel Brand

Panel Model
G150XTN05.0
Diagonal Size
15.0"
Application

Panel Type
a-Si TFT-LCD , LCM
Model Alias
97.15G12.000
Reliability :
Operating Temp.
-30 ~ 85 °C
Storage Temp.
-30 ~ 85 °C
RoHS State

Vibration Rating
1.5G (14.7 m/s²)
Specific Features :




AUO G150XTN05.0 Mechanical Details

Pixel Features :
Pixel Format
1024(RGB)×768, XGA
Dot Pitch
0.099×0.297 mm (H×V)
Configuration
RGB Vertical Stripe
Pixel Pitch
0.297×0.297 mm (H×V) [85PPI]
Mechanical Size :
Display Area
304.128×228.096 mm (H×V)
Bezel Area
307.4×231.3 mm (H×V)
Outline Dim.
326.5×253.5 mm (H×V)
Outline Depth
12 (Typ.) mm
Outline Features :
Form Factor
Flat Rectangle
Orientation
Landscape type
Aspect Ratio
4:3 (H:V)
Shape Style

Holes & Brackets :
Side mounting holes (4-M3) on left, right bezel
Other Features :
Weight
1.00Kgs (Max.)
Surface
Antiglare, Hard coating (3H)



AUO G150XTN05.0 Optical Details

Basic Information :
Brightness
350 cd/m² (Typ.)
Contrast Ratio
700:1 (Typ.) (Transmissive)
Viewing Angle
80/80/70/70 (Typ.)(CR≥10)
Optical Mode
TN, Normally White, Transmissive
Viewing Direction
-
Response Time
5.7/2.3 (Typ.)(Tr/Td) ms
Color Performance :
Chromaticity
Wx:0.313; Wy:0.329
Color Numbers
262K/16.2M (6-bit / 6-bit + FRC)
Color Temperature
6485K
Uniformity
1.25/1.33 (Typ./Max.)(9 points)
1931 Color Gamut :
NTSC Ratio
65%
sRGB
86% coverage
Adobe RGB
67% coverage
DCI-P3
68% coverage
Rec.2020
49% coverage
Remarks
sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)



AUO G150XTN05.0 Interface Detail

Signal Systerm :
LVDS (1 ch, 6/8-bit)
Logic Voltage
-
Signal Electrical :
Voltage Input
3.3V (Typ.)
Current Input
550/600mA (Typ./Max.)
Consumption
1.9/2.2W (Typ./Max.)
Interface Features :
Type
Connector
Position
-
Connector Detail :
Brand
Model
Pin Pitch
Pins
Amount
Configuration
E&T
3804-F20N-06R
1.25 mm
20 pins
1 pcs
LVDS-20P1C8B-060D


FAQ:

Q1: What's the quality of your LCD Panel?



A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.



Q2: What is your return and refund policy?



A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.



Q3: How long is the lead time?



A: The lead time is about 1-3 working days after receipt of payment.



Q4: How can I get the quotation?



A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.



G150XTN05.0 AUO 15INCH 1024×768RGB 350CD/M2 WLED LVDS Operating Temperature: -30 ~ 85 °C INDUSTRIAL LCD DISPLAY 0



Tag:

WLED AUO TFT LCD,

Transmissive AUO TFT LCD,

TN AUO TFT LCD
