G150XTK02.0 AUO 15INCH 1024×768RGB 390CD/M2 WLED eDP Operating Temperature: -20 ~ 70 °C INDUSTRIAL LCD DISPLAY

G150XTK02.0 AUO	15INCH	1024×768RGB 390CD/M2 WLED eDP  Operating Temperature: -20 ~ 70 °C INDUSTRIAL LCD DISPLAY
G150XTK02.0 AUO	15INCH	1024×768RGB 390CD/M2 WLED eDP  Operating Temperature: -20 ~ 70 °C INDUSTRIAL LCD DISPLAY G150XTK02.0 AUO	15INCH	1024×768RGB 390CD/M2 WLED eDP  Operating Temperature: -20 ~ 70 °C INDUSTRIAL LCD DISPLAY

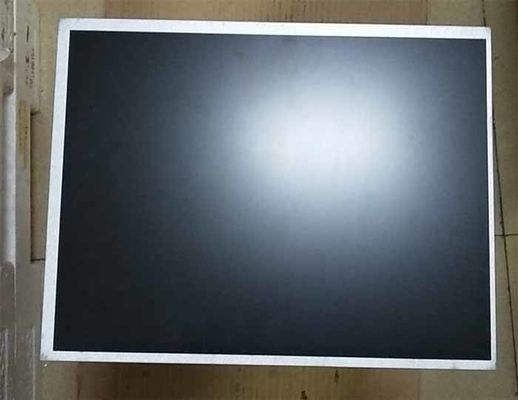

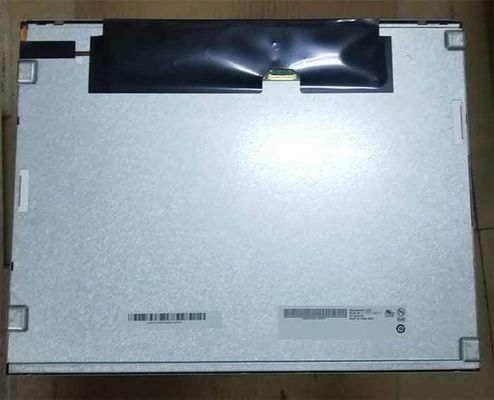

Large Image :  G150XTK02.0 AUO 15INCH 1024×768RGB 390CD/M2 WLED eDP Operating Temperature: -20 ~ 70 °C INDUSTRIAL LCD DISPLAY

Product Details:
Place of Origin: CHINA
Brand Name: AUO
Certification: ISO9001
Model Number: G150XTK02.0
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Packaging Details: STANDARD PACKING
Delivery Time: 1-2 DAYS
Payment Terms: TT/PAYPAL/WESTERN UNION/ESCROW
Supply Ability: 100PCS

G150XTK02.0 AUO 15INCH 1024×768RGB 390CD/M2 WLED eDP Operating Temperature: -20 ~ 70 °C INDUSTRIAL LCD DISPLAY

Description
MODEL NUMBER: G150XTK02.0 BRAND: AUO
SIZE: 15INCH RESOLUTION: 1024×768 RGB
BRIGHTNESS: 390CD/M2 Lamp Type: WLED
Signal Interface: EDP TEMPERATURE RANGE: Operating Temperature: -20 ~ 70 °C
High Light:

WLED AUO TFT LCD

,

TN AUO TFT LCD

AUO G150XTK02.0 Summary

AU Optronics Corp. (hereafter called AUO) G150XTK02.0 is a 15.0 inch diagonal a-Si TFT-LCD display panel product, with an integral WLED backlight system, touchscreen On-Cell Touch. It features an operating temperature range of -20 ~ 70°C . It's general features are summarized by Panelook in the following: With Touch, WLED Backlight, Life ≥ 50K hours, 6/8 bit . Based on its features, Panelook recommend that this model be applied to Industrial etc. According to the information stored in Panelook this model mass production on Q1, 2018, Now this model is discontinued. There are 1 items stock and 0 suppliers of this model on Panelook. We inputted this model's specification on Nov 8 2016 for the first time, and the latest update on Jun 22 2018. If you want to embed G150XTK02.0 LCM in your future product, Panelook strongly recommend that you should contact with AUO or it's distributor to learn lateast production and specification detail. The G150XTK02.0 production status marked on Panelook.com is for reference only and should not be used as the basis for the user's decision making. The above parameters are not from the datasheet, only as a reference, please be caution of useing !







AUO G150XTK02.0 Application Details

Basic Info : Panel Brand   Panel Model G150XTK02.0
Diagonal Size 15.0" Application
Panel Type a-Si TFT-LCD , LCM Model Alias -
Reliability : Operating Temp. -20 ~ 70 °C Storage Temp. -
RoHS State   Vibration Rating -



AUO G150XTK02.0 Mechanical Details

Pixel Features : Pixel Format 1024(RGB)×768 [XGA] Dot Pitch 0.099×0.297 mm (H×V)
Configuration RGB Vertical Stripe Pixel Pitch 0.297×0.297 mm (H×V) [85PPI]
Mechanical Size : Display Area 304.128×228.096 mm (H×V) Bezel Area -
Outline Features : Form Factor Flat Rectangle Orientation Landscape type
Aspect Ratio 4:3 (H:V) Shape Style
Touch Screen : Touch Points - TP Signal -
TP Controller - Touchscreen On-Cell Touch



AUO G150XTK02.0 Optical Details

Basic Information : Brightness 390 cd/m² (Typ.) Contrast Ratio -
Viewing Angle 80/80/70/80 (Typ.)(CR≥10) Optical Mode TN, Normally White, Transmissive
Viewing Direction - Response Time -
Color Performance : Chromaticity - Color Numbers 262K/16.2M (6-bit / 6-bit + FRC)
