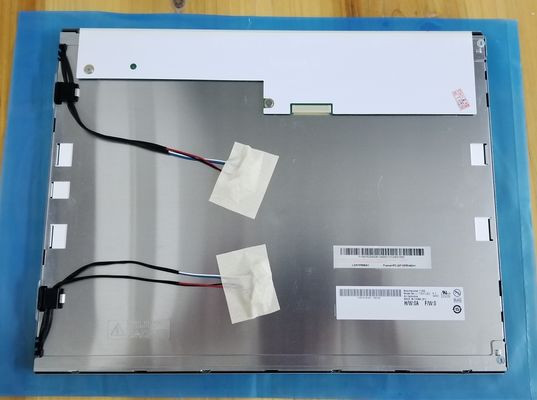

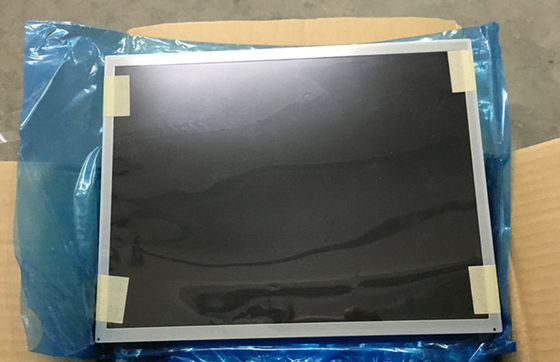

Product Details:
|
| MODEL NUMBER: | G150XG02 V0 | BRAND: | AUO |
|---|---|---|---|
| SIZE: | 15INCH | RESOLUTION: | 1024×768RGB |
| BRIGHTNESS: | 550CD/M2 | TEMPERATURE RANGE: | Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C |
| High Light: | WLED AUO TFT LCD,TN AUO TFT LCD |
||
| Basic Info : | Panel Brand | Panel Model | G150XG02 V0 | |
|---|---|---|---|---|
| Diagonal Size | 15.0" | Application | ||
| Panel Type | a-Si TFT-LCD , LCM | Model Alias | G150XG02 V.0 | |
| Reliability : | Operating Temp. | 0 ~ 50 °C | Storage Temp. | -20 ~ 60 °C |
| RoHS State | Vibration Rating | 1.5G (14.7 m/s²) |
| Pixel Features : | Pixel Format | 1024(RGB)×768 [XGA] | Dot Pitch | 0.099×0.297 mm (H×V) |
|---|---|---|---|---|
| Configuration | RGB Vertical Stripe | Pixel Pitch | 0.297×0.297 mm (H×V) [85PPI] | |
| Mechanical Size : | Display Area | 304.128×228.096 mm (H×V) | Bezel Area | 307.4×231.3 mm (H×V) |
| Outline Dim. | 326.5×253.5 mm (H×V) | Outline Depth | 14.4±0.2 mm | |
| Outline Features : | Form Factor | Flat Rectangle | Orientation | Landscape type |
| Aspect Ratio | 4:3 (H:V) | Shape Style | ||
| Holes & Brackets : | Side mounting holes (4 pcs) on left, right bezel | |||
| Other Features : | Weight | 1.35Kgs (Typ.) | Surface | Antiglare, Hard coating (3H) |
| Basic Information : | Brightness | 550 cd/m² (Typ.) | Contrast Ratio | 500:1 (Typ.) (Transmissive) |
|---|---|---|---|---|
| Viewing Angle | 70/70/70/50 (Typ.)(CR≥10) | Optical Mode | TN, Normally White, Transmissive | |
| Viewing Direction | 12 o'clock | Response Time | 8.8/3.2 (Typ.)(Tr/Td) (ms) | |
| Color Performance : | Chromaticity | Wx:0.310; Wy:0.320 | Color Numbers | 16.2M (6-bit + FRC) |
| Color Temperature | 6737K | White Uniformity | 1.20 (Max.)(5 points) | |
| 1931 Color Gamlt : | NTSC Ratio | 66% | sRGB | 89% coverage |
| Adobe RGB | 69% coverage | DCI-P3 | 69% coverage | |
| Rec.2020 | 49% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
| Frame Frequency : | 60Hz |
|---|---|
| Reverse Scan : | No |
| Power Consumption : | 21W (Typ.) |
| Back-light Features: | Lamp Shape | Straight | Lamp Type | CCFL | Life Time | 60K(Typ.) (Hours) |
|---|---|---|---|---|---|---|
| Replacement | - | Amount | 4 pcs | Position | Edge light type (Top and Bottom) | |
| Lamp Electrical : | Voltage Input | 680/720V (Typ./Max.) | Current Input | 2.5/6.5/8.5mA (Min./Typ./Max.) | ||
| Frequency | 40/55/60KHz (Min./Typ./Max.) | Kick-off Voltage | 1000/1300V (Min.)(Ta=+25/0℃) | |||
| Consumption | 17.7W (Typ.) | |||||
| Interface Features : | Type | Connector | Position | - | Lamp Driver | No |
| Interface Detail : | Brand | Model | Pin Pitch | Pins | Amount | Configuration |
| JST | BHR-03VS-1 | 4.0 mm | 3 pins | 4 pcs | BLL-3PINS-HNL | |
| Signal Systerm : | LVDS (1 ch, 8-bit) | Logic Voltage | - | |||
|---|---|---|---|---|---|---|
| Signal Electrical : | Voltage Input | 3.3V (Typ.) | Current Input | 1.0A (Typ.) | ||
| Consumption | 3.3/3.96W (Typ./Max.) | |||||
| Interface Features : | Type | Connector | Position | - | ||
| Connector Detail : | Brand | Model | Pin Pitch | Pins | Amount | Configuration |
| HRS | DF14H-20P-1.25H | 1.25 mm | 20 pins | 1 pcs | LVDS-20P1C8B-010A | |
