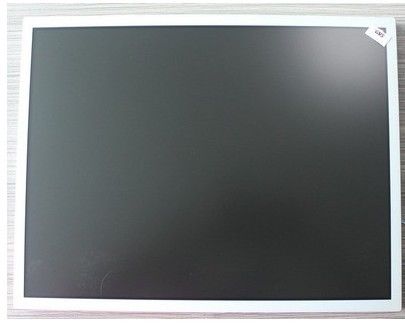

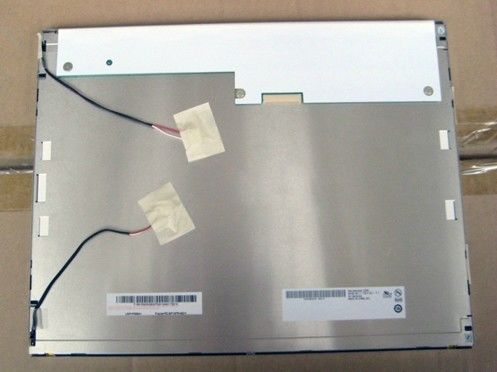

G150XG01 V1 AUO 15INCH 1024×768RGB 350CD/M2 CCFL LVDS Operating Temp.: -30 ~ 85 °C INDUSTRIAL LCD DISPLAY

G150XG01 V1 AUO 15INCH 1024×768RGB 350CD/M2 CCFL LVDS Operating Temp.: -30 ~ 85 °C INDUSTRIAL LCD DISPLAY
G150XG01 V1 AUO 15INCH 1024×768RGB 350CD/M2 CCFL LVDS Operating Temp.: -30 ~ 85 °C INDUSTRIAL LCD DISPLAY G150XG01 V1 AUO 15INCH 1024×768RGB 350CD/M2 CCFL LVDS Operating Temp.: -30 ~ 85 °C INDUSTRIAL LCD DISPLAY G150XG01 V1 AUO 15INCH 1024×768RGB 350CD/M2 CCFL LVDS Operating Temp.: -30 ~ 85 °C INDUSTRIAL LCD DISPLAY

Large Image :  G150XG01 V1 AUO 15INCH 1024×768RGB 350CD/M2 CCFL LVDS Operating Temp.: -30 ~ 85 °C INDUSTRIAL LCD DISPLAY

Product Details:
Place of Origin: CHINA
Brand Name: AUO
Certification: ISO9001
Model Number: G150XG01 V1
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Packaging Details: 15 pcs / box 20 Kgs 375×430×360 mm
Delivery Time: 1-2 DAYS
Payment Terms: TT/PAYPAL/WESTERN UNION/ESCROW
Supply Ability: 300PCS
Contact Now

G150XG01 V1 AUO 15INCH 1024×768RGB 350CD/M2 CCFL LVDS Operating Temp.: -30 ~ 85 °C INDUSTRIAL LCD DISPLAY

Description
MODEL NUMBER: G150XG01 V1 BRAND: AUO
SIZE: 15INCH RESOLUTION: 1024×768RGB
BRIGHTNESS: 350CD/M2 TEMPERATURE RANGE: Operating Temp.: -30 ~ 85 °C ; Storage Temp.: -30 ~ 85 °C
Highlight:

6 Bit TFT LCD Panel

,

LVDS Industrial LCD Screen

AUO G150XG01 V1 Application Details

Basic Detail :
Manufacturer

Model Name
G150XG01 V1
Panel Type
a-Si TFT-LCD , LCM
Another Name
G150XG01 V.1
Panel Size
15.0 inch
Designed For

Maximum Ratings :
OP Temperature
-30 ~ 85 °C
ST Temperature
-30 ~ 85 °C
RoHS

Vibration Level
1.5G (14.7 m/s²)
Features :
  •



AUO G150XG01 V1 Optical Details

Basic Detail :
Luminance
350 cd/m² (Typ.)
Contrast Ratio
700:1 (Typ.) (Transmissive)
Good View at
12 o'clock
Response Speed
5.7/2.3 (Typ.)(Tr/Td) ms
Viewing Angle
80/80/70/60 (Typ.)(CR≥10)
Operating Mode
TN, Normally White, Transmissive
Color Performance :
Chromaticity
Wx:0.313; Wy:0.329
Support Color
262K/16.2M (6-bit / 6-bit + FRC)
Color Temperature
6485K
White Variation
1.25/1.33 (Typ./Max.)(9 points)
1931 Color Gamut :
NTSC Ratio
64%
sRGB
87% coverage
Adobe RGB
66% coverage
DCI-P3
66% coverage
Rec.2020
47% coverage
Remarks
sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)



AUO G150XG01 V1 Mechanical Details

Pixel Features :
Number of Pixel
1024(RGB)×768, XGA
Arrangement
RGB Vertical Stripe
Dot Pitch(W×H)
0.099×0.297 mm
Pixel Pitch(W×H)
0.297×0.297 mm [85PPI]
Physical Size :
Active Viewing
304.128(W)×228.096(H) mm
Overall Dim.
326.5(W)×253.5(H) mm
Bezel Opening
307.4(W)×231.3(H) mm
Overall Depth
12.0 (Max.) mm
Outline Features :
Form Shape
Flat Rectangle
Orientation
Landscape type
Aspect Ratio(W:H)
4:3
Shape Style

Fixation :
Side mounting holes (4-M3) on left, right bezel
Other Detail :
Mass
1.10Kgs (Typ.)
Surface
Antiglare, Hard coating (3H)



AUO G150XG01 V1 Interface Detail

Signal Electrical :
Input Current
550/660mA (Typ./Max.)
Input Voltage
3.3V (Typ.)
Consumption
1.9/2.2W (Typ./Max.)
Signal Interface
LVDS (1 ch, 6/8-bit)
Interface Features :
Position
-
Type
Connector
Interface Detail :
Brand
Model
Pitch
Pins
Amount
Pin Assignment
STM
MSB240420E
1.25 mm
20 pins
1 pcs
LVDS-20P1C8B-060D









FAQ:

Q1: What's the quality of your LCD Panel?



A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.



Q2: What is your return and refund policy?



A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.



Q3: How long is the lead time?



A: The lead time is about 1-3 working days after receipt of payment.



Q4: How can I get the quotation?



A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.



G150XG01 V1 AUO 15INCH 1024×768RGB 350CD/M2 CCFL LVDS Operating Temp.: -30 ~ 85 °C INDUSTRIAL LCD DISPLAY 0
