G121SN01 V1 AUO 12.1INCH 800×600RGB 200CD/M2 CCFL LVDS Operating Temperature: -10 ~ 65 °C INDUSTRIAL LCD DISPLAY

G121SN01 V1 AUO 12.1INCH 800×600RGB 200CD/M2 CCFL LVDS Operating Temperature: -10 ~ 65 °C INDUSTRIAL LCD DISPLAY
G121SN01 V1 AUO 12.1INCH 800×600RGB 200CD/M2 CCFL LVDS Operating Temperature: -10 ~ 65 °C INDUSTRIAL LCD DISPLAY G121SN01 V1 AUO 12.1INCH 800×600RGB 200CD/M2 CCFL LVDS Operating Temperature: -10 ~ 65 °C INDUSTRIAL LCD DISPLAY G121SN01 V1 AUO 12.1INCH 800×600RGB 200CD/M2 CCFL LVDS Operating Temperature: -10 ~ 65 °C INDUSTRIAL LCD DISPLAY

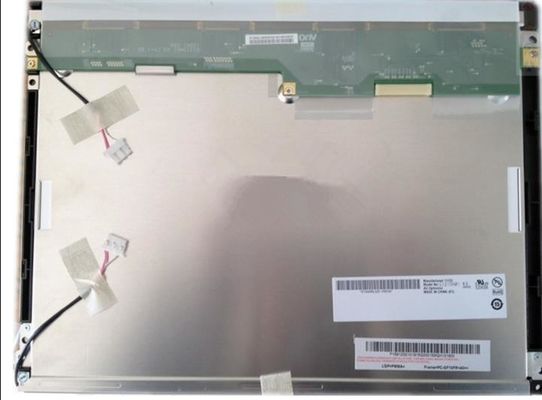

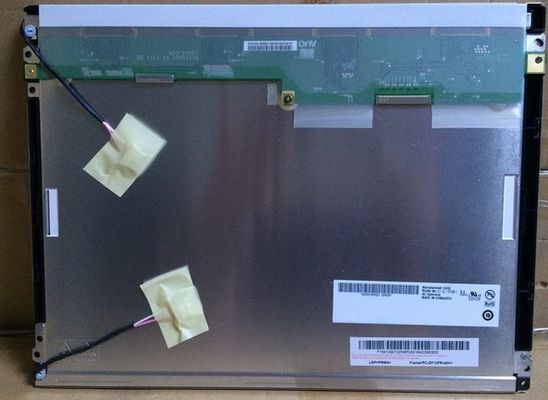

Large Image :  G121SN01 V1 AUO 12.1INCH 800×600RGB 200CD/M2 CCFL LVDS Operating Temperature: -10 ~ 65 °C INDUSTRIAL LCD DISPLAY

Product Details:
Place of Origin: CHINA
Brand Name: AUO
Certification: ISO9001
Model Number: G121SN01 V1
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Packaging Details: 20 pcs / box 17 Kgs 576×326×420 mm
Delivery Time: 1-2 DAYS
Payment Terms: TT/PAYPAL/WESTERN UNION/ESCROW
Supply Ability: 200PCS
Contact Now

G121SN01 V1 AUO 12.1INCH 800×600RGB 200CD/M2 CCFL LVDS Operating Temperature: -10 ~ 65 °C INDUSTRIAL LCD DISPLAY

Description
MODEL NUMBER: G121SN01 V1 BRAND: AUO
SIZE: 12.1INCH RESOLUTION: 800×600 RGB
BRIGHTNESS: 200CD/M2 TEMPERATURE RANGE: Operating Temperature: -10 ~ 65 °C ; Storage Temperature: -30 ~ 70 °C
High Light:

6 Bit TFT LCD Panel

,

LVDS Industrial LCD Screen



AUO G121SN01 V1 Application Details

Basic Detail :
Manufacturer

Model Name
G121SN01 V1
Panel Type
a-Si TFT-LCD , LCM
Another Name
G121SN01 V.1
Panel Size
12.1 inch
Designed For

Maximum Ratings :
OP Temperature
-10 ~ 65 °C
ST Temperature
-30 ~ 70 °C
RoHS

Vibration Level
1.5G (14.7 m/s²)



AUO G121SN01 V1 Optical Details

Basic Detail :
Luminance
200 cd/m² (Typ.)
Contrast Ratio
500:1 (Typ.) (Transmissive)
Good View at
12 o'clock
Response Speed
10/25 (Typ.)(Tr/Td) ms
Viewing Angle
70/70/60/50 (Typ.)(CR≥10)
Operating Mode
TN, Normally White, Transmissive
Color Performance :
Chromaticity
Wx:0.313; Wy:0.329
Support Color
262K (6-bit)
Color Temperature
6485K
White Variation
1.60 (Max.)(13 points)
1931 Color Gamlt :
NTSC Ratio
58%
sRGB
80% coverage
Adobe RGB
61% coverage
DCI-P3
60% coverage
Rec.2020
44% coverage
Remarks
sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)



AUO G121SN01 V1 Mechanical Details

Pixel Features :
Number of Pixel
800(RGB)×600, SVGA
Arrangement
RGB Vertical Stripe
Dot Pitch(W×H)
0.1025×0.3075 mm
Pixel Pitch(W×H)
0.3075×0.3075 mm [82PPI]
Physical Size :
Active Viewing
246(W)×184.5(H) mm
Overall Dim.
279(W)×209(H) mm
Bezel Opening
249.05(W)×188.3(H) mm
Overall Depth
11.0 (Max.) mm
Outline Features :
Form Shape
Flat Rectangle
Orientation
Landscape type
Aspect Ratio(W:H)
4:3
Shape Style

Fixation :
Face mounting holes (6-Φ3.4, 1-R1.7) on left and right bezel
Other Detail :
Mass
640g (Typ.)
Surface
-





AUO G121SN01 V1 Interface Detail

Signal Electrical :
Input Current
473mA (Typ.)
Input Voltage
3.3V (Typ.)
Consumption
1.56W (Typ.)
Signal Interface
LVDS (1 ch, 6-bit)
Interface Features :
Position
-
Type
Connector
Interface Detail :
Brand
Model
Pitch
Pins
Amount
Pin Assignment
JAE
FI-SEB20P-HF13E
1.25 mm
20 pins
1 pcs
LVDS-20P1C6B-010F



AUO G121SN01 V1 Lightting Details

Lamp Features :
Lamp Type
CCFL
Amount
2 pcs
Position
Edge light type (Top and Bottom)
Exchange
-
Lamp Shape
Straight
Lamp Life
50K(Min.) (Hours)
Lamp Electrical :
Input Voltage
499/530/595V (Min./Typ./Max.)
Input Current
3.0/6.0/7.0mA (Min./Typ./Max.)
Frequency
40/55/85KHz (Min./Typ./Max.)
Turn-on Voltage
970/1270V (Max.)(Ta=+25/0℃)
Consumption
3.6/6.4/7.0W (Min./Typ./Max.)
Interface Features :
Position
-
Type
Connector
Interface Detail :
Brand
Model
Pitch
Pins
Amount
Pin Assignment
JST
BHR-03VS-1
4.0 mm
3 pins
2 pcs
BLL-3PINS-HNL
Backlight Driver :
No



FAQ:



Q1: What's the quality of your LCD Panel?



A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.



Q2: What is your return and refund policy?



A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.



Q3: How long is the lead time?



A: The lead time is about 1-3 working days after receipt of payment.



Q4: How can I get the quotation?



A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
