Product Details:
|

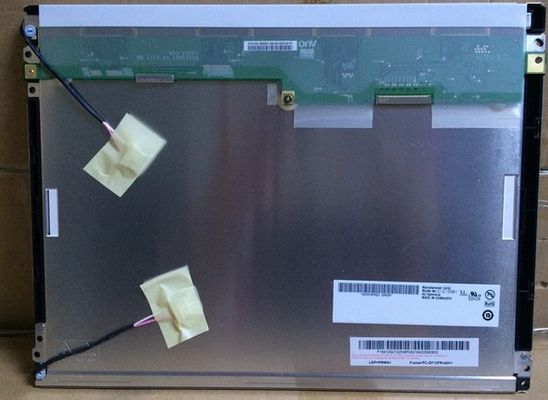

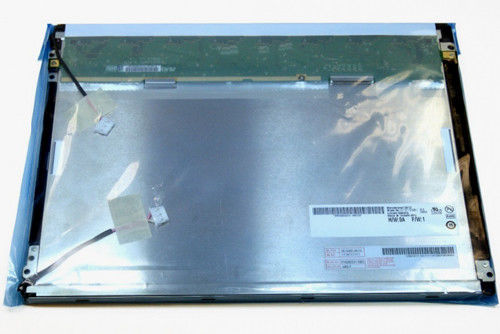

| MODEL NUMBER: | G121SN01 V0 | BRAND: | AUO |
|---|---|---|---|
| SIZE: | 12.1INCH | RESOLUTION: | 800×600 RGB |
| BRIGHTNESS: | 400CD/M2 | TEMPERATURE RANGE: | Operating Temp.: -10 ~ 65 °C ; Storage Temp.: -30 ~ 70 °C |
| High Light: | 6 Bit TFT LCD Panel,LVDS Industrial LCD Screen |
||
| Basic Info : | Panel Brand | Panel Model | G121SN01 V0 | |
|---|---|---|---|---|
| Diagonal Size | 12.1" | Application | ||
| Panel Type | a-Si TFT-LCD , LCM | Model Alias | G121SN01 V.0 | |
| Reliability : | Operating Temp. | -10 ~ 65 °C | Storage Temp. | -30 ~ 70 °C |
| RoHS State | Vibration Rating | 1.5G (14.7 m/s²) |
| Pixel Features : | Pixel Format | 800(RGB)×600 [SVGA] | Dot Pitch | 0.1025×0.3075 mm (H×V) |
|---|---|---|---|---|
| Configuration | RGB Vertical Stripe | Pixel Pitch | 0.3075×0.3075 mm (H×V) [82PPI] | |
| Mechanical Size : | Display Area | 246×184.5 mm (H×V) | Bezel Area | 249.05×188.3 mm (H×V) |
| Outline Dim. | 279×209 mm (H×V) | Outline Depth | 11.0 (Max.) mm | |
| Outline Features : | Form Factor | Flat Rectangle | Orientation | Landscape type |
| Aspect Ratio | 4:3 (H:V) | Shape Style | ||
| Holes & Brackets : | Face mounting holes (6-Φ3.4, 1-R1.7) on left and right bezel | |||
| Other Features : | Weight | 660g (Typ.) | Surface | Antiglare |
| Basic Information : | Brightness | 400 cd/m² (Typ.) | Contrast Ratio | 500:1 (Typ.) (Transmissive) |
|---|---|---|---|---|
| Viewing Angle | 70/70/60/50 (Typ.)(CR≥10) | Optical Mode | TN, Normally White, Transmissive | |
| Viewing Direction | 12 o'clock | Response Time | 10/25 (Typ.)(Tr/Td) (ms) | |
| Color Performance : | Chromaticity | Wx:0.313; Wy:0.329 | Color Numbers | 262K (6-bit) |
| Color Temperature | 6485K | White Uniformity | - | |
| 1931 Color Gamlt : | NTSC Ratio | 59% | sRGB | 81% coverage |
| Adobe RGB | 62% coverage | DCI-P3 | 61% coverage | |
| Rec.2020 | 44% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
| Frame Frequency : | 60Hz |
|---|---|
| Reverse Scan : | Yes (180°) |
| Power Consumption : | 7.3W (Typ.) |
| Back-light Features: | Lamp Shape | Straight | Lamp Type | CCFL | Life Time | 50K(Min.) (Hours) |
|---|---|---|---|---|---|---|
| Replacement | - | Amount | 2 pcs | Position | Edge light type (Top and Bottom) | |
| Lamp Electrical : | Voltage Input | 499/530/595V (Min./Typ./Max.) | Current Input | 3.0/6.0/7.0mA (Min./Typ./Max.) | ||
| Frequency | 40/55/85KHz (Min./Typ./Max.) | Kick-off Voltage | 970/1270V (Max.)(Ta=+25/0℃) | |||
| Consumption | 3.6/6.4/7.0W (Min./Typ./Max.) | |||||
| Interface Features : | Type | Connector | Position | - | Lamp Driver | No |
| Interface Detail : | Brand | Model | Pin Pitch | Pins | Amount | Configuration |
| JST | BHR-03VS-1 | 4.0 mm | 3 pins | 2 pcs | BLL-3PINS-HNL | |
| Signal Systerm : | LVDS (1 ch, 6-bit) | Logic Voltage | - | |||
|---|---|---|---|---|---|---|
| Signal Electrical : | Voltage Input | 3.3V (Typ.) | Current Input | 235mA (Typ.) | ||
| Consumption | 0.86W (Typ.) | |||||
| Interface Features : | Type | Connector | Position | - | ||
| Connector Detail : | Brand | Model | Pin Pitch | Pins | Amount | Configuration |
| JAE | FI-SEB20P-HF13E | 1.25 mm | 20 pins | 1 pcs | LVDS-20P1C6B-010F | |
