G104VTN01.0 AUO 10.4INCH 640×480RGB 370CD/M2 WLED TTL Operating Temp.: -30 ~ 80 °C INDUSTRIAL LCD DISPLAY

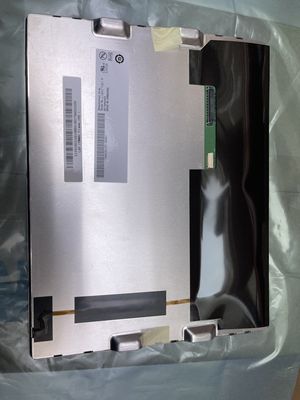

Large Image : G104VTN01.0 AUO 10.4INCH 640×480RGB 370CD/M2 WLED TTL Operating Temp.: -30 ~ 80 °C INDUSTRIAL LCD DISPLAY

Product Details:

Place of Origin:	CHINA
Brand Name:	AUO
Certification:	ISO9001
Model Number:	G104VTN01.0

Payment & Shipping Terms:

Minimum Order Quantity:	1PCS
Packaging Details:	STANDARD PACKING
Delivery Time:	1-2 DAYS
Payment Terms:	TT/PAYPAL/WESTERN UNION/ESCROW
Supply Ability:	400PCS

Contact Now

G104VTN01.0 AUO 10.4INCH 640×480RGB 370CD/M2 WLED TTL Operating Temp.: -30 ~ 80 °C INDUSTRIAL LCD DISPLAY

Description

MODEL NUMBER:	G104VTN01.0	BRAND:	AUO
SIZE:	10.4INCH	RESOLUTION:	640×480 RGB
BRIGHTNESS:	370CD/M2	TEMPERATURE RANGE:	Operating Temp.: -30 ~ 80 °C
Highlight:	6 Bit TFT LCD Panel , LVDS Industrial LCD Screen

AUO G104VTN01.0 Overview

The G104VTN01.0 is a 10.4 inch diagonal a-Si TFT-LCD display panel product from AU Optronics Corp. (hereafter called AUO), with an integral WLED backlight system, without touch screen. It features an operating temperature range of -30 ~ 80°C .

AUO G104VTN01.0 Application Details

Basic Detail :	Manufacturer Model Name G104VTN01.0 Panel Type a-Si TFT-LCD , LCM Another Name - Panel Size 10.4 inch Designed For
Maximum Ratings :	OP Temperature -30 ~ 80 °C ST Temperature - RoHS Vibration Level -
Features :
Remarks :	Flat Type

AUO G104VTN01.0 Optical Details

Basic Detail :	Luminance 370 cd/m² (Typ.) Contrast Ratio 700:1 (Typ.) (Transmissive) Good View at 6 o'clock Response Speed 20/10 (Typ.)(Tr/Td) ms Viewing Angle 80/80/60/80 (Typ.)(CR≥10) Operating Mode TN, Normally White, Transmissive
Color Performance :	Chromaticity Wx:0.310; Wy:0.330 Support Color 262K (6-bit) Color Temperature 6638K White Variation -

AUO G104VTN01.0 Mechanical Details

Pixel Features :	Number of Pixel 640(RGB)×480, VGA Arrangement RGB Vertical Stripe Dot Pitch(W×H) 0.110×0.330 mm Pixel Pitch(W×H) 0.330×0.330 mm [76PPI]
Physical Size :	Active Viewing 211.2(W)×158.4(H) mm Overall Dim. -
Outline Features :	Form Shape Flat Rectangle Orientation Landscape type Aspect Ratio(W:H) 4:3 Shape Style

AUO G104VTN01.0 Interface Detail

Signal Electrical :	Input Current - Input Voltage 3.3V (Typ.) Consumption - Signal Interface Parallel RGB (1 ch, 6-bit)

FAQ:

Q1: What's the quality of your LCD Panel?

A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.

Q2: What is your return and refund policy?

A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.

Q3: How long is the lead time?

A: The lead time is about 1-3 working days after receipt of payment.

Q4: How can I get the quotation?

A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.

G104VTN01.0 AUO 10.4INCH 640×480RGB 370CD/M2 WLED TTL Operating Temp.: -30 ~ 80 °C INDUSTRIAL LCD DISPLAY 0
